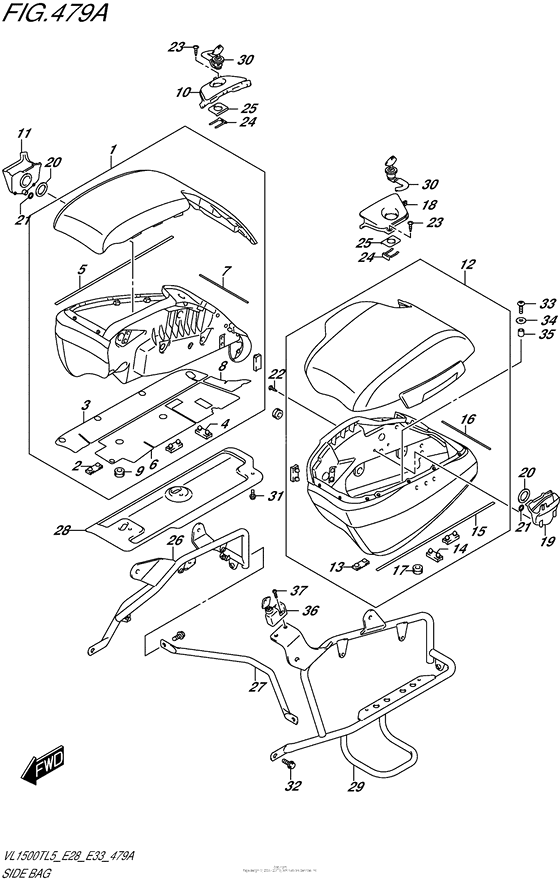

Side Bag

Suzuki VL1500T Boulevard C90T

Suzuki
Side Bag
#oem кодцена
1
95400-06J51-000
BAG ASSY,SIDE,R
2
45149-12C00-000
CUSHION,SEAT(40X20X6)
3
95413-06J00-000
SHIELD,SIDE BAG HEAT NO.1
4
95424-06J00-000
CUSHION,BRACE NO.2
5
95439-06J00-000
CUSHION,SIDE BAG UPR
6
95513-06J00-000
SHIELD,SIDE BAG HEAT NO.2
7
95536-06J00-000
CUSHION,SIDE BAG LWR
8
95613-06J00-000
SHIELD,SIDE BAG HEAT NO.3
9
09320-11008-000
Валик
10
95418-06J00-000
COVER,KEY CYLINDER,R
11
95419-06J00-000
TRAY,SIDE BAG,R
12
95500-06J41-000
BAG ASSY,SIDE,L
13
45149-12C00-000
CUSHION,SEAT(40X20X6)
14
95424-06J00-000
CUSHION,BRACE NO.2
15
95439-06J00-000
CUSHION,SIDE BAG UPR
16
95536-06J00-000
CUSHION,SIDE BAG LWR
17
09320-11008-000
Валик
18
95518-06J00-000
COVER,KEY CYLINDER,L
19
95519-06J00-000
TRAY,SIDE BAG,L
20
95533-06J00-000
CUSHION,SIDE BAG TRAY
21
09280-12012-000
O RING(D:2.4,ID:11.8)
22
03541-0516A-000
Болт
23
03541-0520B-000
Болт
24
45289-11F00-000
PLATE,SEAT LOCK ASSY
25
95425-06J00-000
PLATE,SIDE BAG LOCK
26
95470-06J00-000
BRACE COMP,SIDE BAG,R
27
95481-06J00-000
BRACE,SIDE BAG CTR
28
95482-06J00-000
PLATE,HEAT SHIELD
29
95570-06J00-000
BRACE COMP,SIDE BAG,L
30
95700-06810-000
LOCK SET,SIDE BAG
31
01550-0612A-000
Болт
32
01550-0816B-000
Болт крепёжный
33
09139-06196-000
BOLT(6X25)
34
09160-06154-000
Шайба
35
09180-06120-000
(CA) Шайба 6.5X
36
95700-41821-000
LOCK SET,HELMET
37
09139-06048-000
SCREW(6X20)
