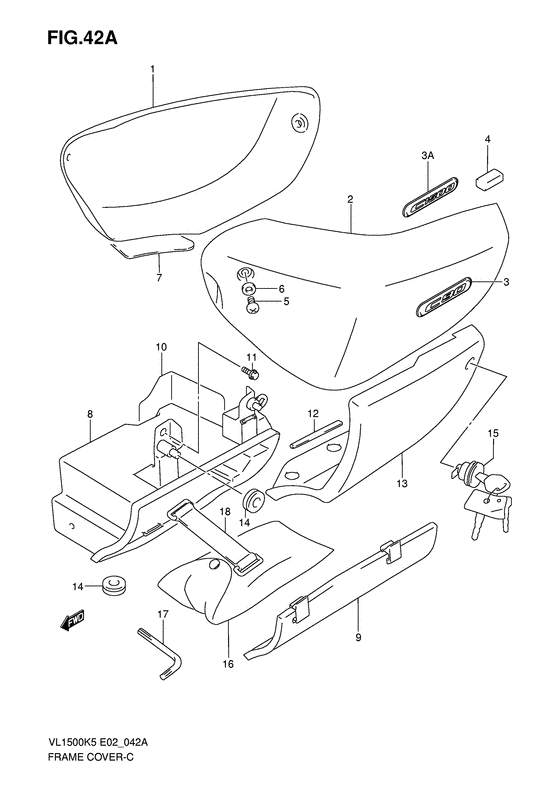

Обтекатель задний для мотоциклов Suzuki VL1500 Intruder C1900/ Boulevard C90 (2005)

oem код

название

цена

47110-10F00-YMD

COVER,FRAME,R(SILVER)

Cover, frame rh (silver); For eua

47110-10F00-YHF

COVER,FRAME,R(GRAY)

Cover, frame rh (gray); For crt

47110-10F00-YAY

COVER,FRAME,R(BLACK)

Cover, frame rh (black); For yay

47210-10F00-YMD

COVER,FRAME,L(SILVER)

Cover, frame lh (silver); For eua

47210-10F00-YHF

COVER,FRAME,L(GRAY)

Cover, frame rh (gray) Cover, frame lh (gray); For ny3

47210-10F00-YAY

COVER,FRAME,L(BLACK)

Cover, frame lh (black); For yay

68131-10FC0-000

EMBLEM,C1500

E2,e19

68131-10FA1-000

EMBLEM,C90

замена

68131-10FA0-000

Эмблема

E24

47117-10F00-000

CUSHION,FRAME COVER

09139-06030-000

Винт (6X16)

Screw (6x16) Screw;

09160-06094-000

Шайба 6.5X15X1

Washer (6.5x15x1.5)

SHIELD,FRAME COVER,R

BODY,TOOL HOLDER

CAP,TOOL HOLDER

SHIELD,TOOL HOLDER BODY

09113-06001-000

BOLT(6X16)

Bolt, outer

47212-10F00-000

MOLDING,FRAME COVER,L

47440-10F00-000

COVER,TOOL HOLDER

09320-08047-000

Подушка

Cushion, upper;

LOCK SET,COVER

Ключи

SPANNER,HEXAGON(6)

HEXAGON SPANNER,5

Hexagon, 5

09280-61002-000

Кольцо уплотнительное

O ring Band, tool;
