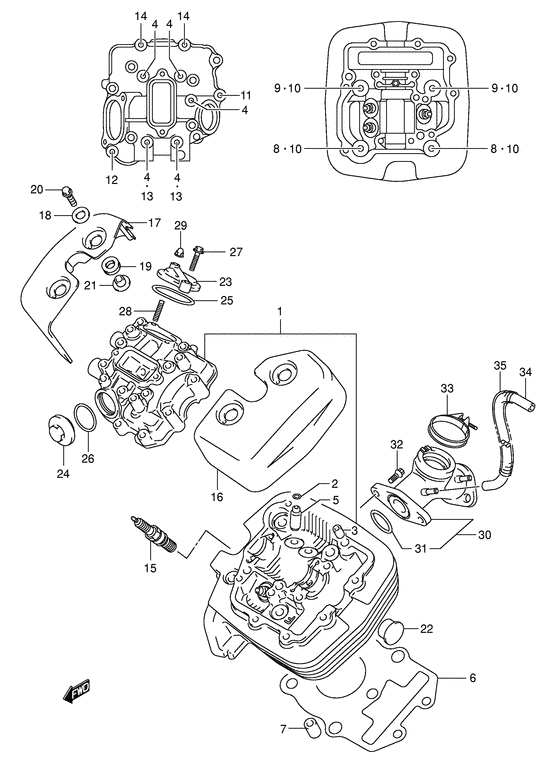

Головка цилиндров для мотоциклов Suzuki VL125 Intruder LC (2004)

oem код

название

цена

11101-26F20-000

HEAD ASSY,CYLINDER FR

Model k2/k3/k4

11101-26F10-000

HEAD ASSY,CYLINDER FR

Model y/k1 e18

11101-26F00-000

Head assy, cylinder front

Model y/k1 e2,e4,e17,e22,e34

09381-10004-000

RING,SNAP

Ring, valve guide Ring, valve guide intake;

09206-08001-000

Стопор

Pin;

09103-06102-000

BOLT(6X55)

Bolt (6x55);

11115-33D71-000

GUIDE,VALVE(OS:0.3)

Guide, valve (os:0.3) Guide, valve intake (os:0.3); Opt

11141-26F00-000

GASKET,CYLINDER HEAD

Gasket, cylinder head front Gasket, cylinder head front;

04211-11169-000

Штифт

Pin, dowel Pin;

08316-1008B-000

Гайка

замена

08316-10083-000

Гайка

09159-08049-000

Гайка

09168-08021-000

GASKET(8.5X17X2.3)

Gasket (8.5x17x2.3) Gasket (8.5x17x2.3);

01550-0630A-000

Болт

замена

01550-06303-000

Bolt (6x30)

Bolt, head cover l:30

01550-0635B-000

Болт

замена

01550-06353-000

Болт

09168-06023-000

GASKET(5.8X13X1.2)

Gasket (5.8x13x1.2) Washer;

08316-1006B-000

Гайка

замена

08316-10063-000

Гайка

Nut;

09482-00459-000

PLUG,SPARK(U27ESR-N)

Spark plug (denso,u27esr-n); Opt

09482-00458-000

PLUG,SPARK(CR9E)

Plug, spark (cr9e) Spark plug (ngk,cr9e); Opt

09482-00515-000

PLUG,SPARK(U22ESR-N)

Spark plug (denso,u22esr-n); Opt

09482-00516-000

PLUG,SPARK(CR7E)

Spark plug (ngk,cr7e); Opt

09482-00457-000

PLUG,SPARK(U24ESR-N)

Spark plug (denso,u24esr-n);

09482-00456-000

PLUG,SPARK(CR8E)

Spark plug (ngk,cr8e);

11171-26F20-000

CAP,CYL HEAD COVER,FL & RR

Cap, head cover lh Cap, head cover lh; Js1a4121100100297~, js1a4121200102310~, js1a4131200101969~, js1a4141200100260~,

11171-26F00-000

Cap, head cover rh

Cap, head cover lh ~js1a4121100100296, ~js1a4121200102309, ~js1a4131200101968, ~js1a4141200100259, ~js1a4211200100493

11173-26F20-000

CAP,CYL HEAD COVER,FR & RL

Cap, head cover rh Cap, head cover rh; Js1a4121100100297~, js1a4121200102310~, js1a4131200101969~, js1a4141200100260~,

11173-26F00-000

Cap, head cover lh

Cap, head cover rh Cap, head cover rh; ~js1a4121100100296, ~js1a4121200102309, ~js1a4131200101968, ~js1a4141200100259,

09160-06066-000

Шайба

Washer, throttle lever (6.5x20x1.6) Washer, head cover cap;

09320-10501-000

Подушка

Cushion, head cover cap;

01547-0625B-000

Болт

замена

01547-06253-000

Болт

Bolt, head cover cap; Model k2/k3/k4

01547-06257-000

Болт

Bolt, head cover cap; Model y/k1

09180-06337-000

SPACER(6.5X10X11.1)

Spacer, head cover cap;

09241-22002-000

PLUG(OD:22.5)

Plug, head Plug, cylinder head;

11175-09400-000

CAP,INSPECTION

11175-18900-000

CAP,INSPECTION

Cap, inspection hole;

09280-50007-000

O RING(D:2.4,ID:33.6X48.6)

O ring (d:2.4,id:48.6) O ring, inspection cap;

09280-30001-000

O RING(D:3,ID:29.5)

O ring, inspection hole cap;

01550-0625B-000

Болт масляного насоса

Bolt, head cover

замена

01550-06253-000

Болт (6x25)

Bolt, inspection cap;

09108-06134-000

Болт

замена

09108-06070-000

Болт заклепка

Stud bolt Bolt, stud (l:20);

08313-2006B-000

Гайка

замена

08313-20063-000

Гайка

13101-26F10-000

Труба впускная

Vl125uy/uk1/uk2/uk3/uk4,

13101-26F00-000

Труба впускная

Vl125y/k1/k2/k3/k4,

09280-32006-000

O RING(D:2.4,ID:31.7)

O ring (d:2.4,id:31.7);

02112-1616A-000

Болт

замена

02112-16163-000

Болт

Vl125uy/uk1/uk2/uk3/uk4

09139-06014-000

Болт

Bolt Screw, front lh (6x16); Vl125uy/uk1/uk2/uk3/uk4

09119-06092-000

BOLT(6X16)

Screw Bolt (6x16); Vl125y/k1/k2/k3/k4

09402-44208-000

Хомут

Clamp, intake pipe;

09355-50105-600

Шланг топливный

Hose, fuel (filter to pump) Hose, fuel cock vacuum (5x10x600); L:600->00

09440-13051-000

Пружина

Spring, air vent hose
