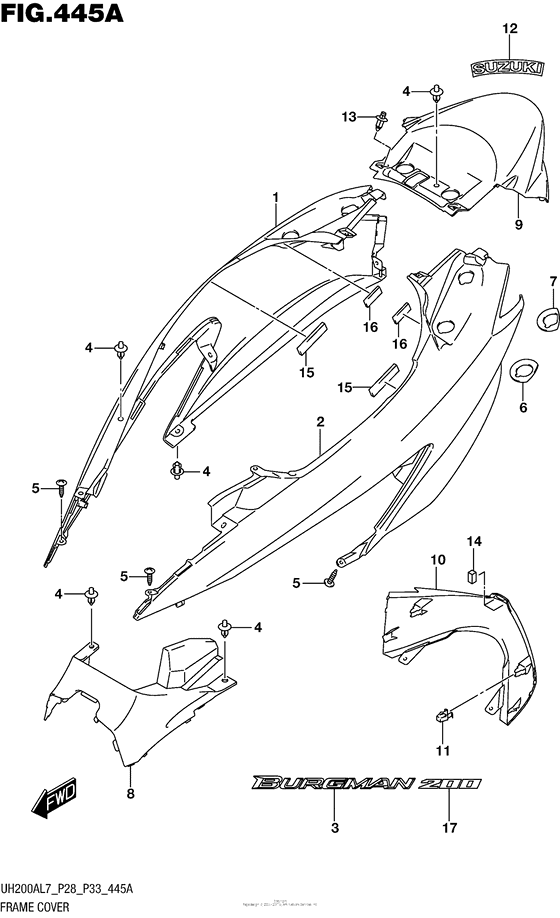

Обтекатель рамы

Suzuki UH200 Burgman

Suzuki
Обтекатель рамы
#oem кодцена
1-3
47111-12JA2-YMC
COVER,FRAME,R
1-2
47111-12JA2-YUH
COVER,FRAME,R
1-1
47111-12JA2-PGZ
COVER,FRAME,R
2-3
47211-12JA2-YMC
COVER,FRAME,L
2-2
47211-12JA2-YUH
COVER,FRAME,L
2-1
47211-12JA2-PGZ
COVER,FRAME,L
3
68131-12JA0-000
EMBLEM,FRAME COVER
4
09409-08308-5ES
CLIP(BLACK)
5
03541-0516A-000
Болт
6
47161-12JB0-000
CUSHION,FRAME COVER FRONT
7
47162-12JB0-000
CUSHION,FRAME COVER REAR
8
47351-12JB0-291
COVER,FRAME FRONT
9-3
47311-12JA0-YMC
COVER,FRAME CENTER
9-2
47311-12JA0-YUH
COVER,FRAME CENTER
9-1
47311-12JA0-PGZ
COVER,FRAME CENTER
10-3
47411-12JA0-YMC
COVER,FRAME LOWER
10-2
47411-12JA0-YUH
COVER,FRAME LOWER
10-1
47411-12JA0-PGZ
COVER,FRAME LOWER
11
09409-08326-000
Зажим
12-3
68131-03HB0-BGE
EMBLEM,"SUZUKI"
12-2
68131-03HB0-ALZ
EMBLEM,SUZUKI
12-1
68131-03HB0-AJK
EMBLEM,SUZUKI
13
09409-06329-000
Зажим
14
92152-12JA0-000
CUSHION,FR BOX NO.4
15
47163-12JA0-000
CUSHION,FRAME COVER UPPER NO.1
16
47164-12JA0-000
CUSHION,FRAME COVER UPPER NO.2
17-3
68131-03H30-BGE
EMBLEM,"200"
17-2
68131-03H30-ALZ
EMBLEM,200
17-1
68131-03H30-AJK
EMBLEM,200
