Обтекатель задний для мотоциклов Suzuki UG110 Address 110 (2001)

Москва и регионы России

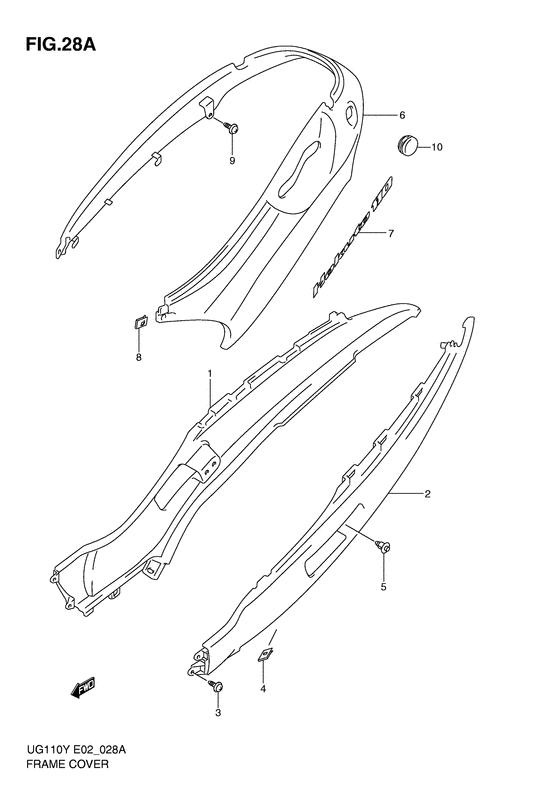

Обтекатель задний

Suzuki UG110 Address 110

Обтекатель задний

Обтекатель задний

1

1

2

2

3

4

5

6

6

7

7

8

9

10

#

oem код

название

цена

1

47111-16F00-24K

COVER,SIDE,R(CHARCOAL)

COVER,SIDE,R(CHARCOAL)

Cover, side rh (charcoal); For m9t

1

47111-16F00-YC2

COVER,SIDE,R(BLUE)

COVER,SIDE,R(BLUE)

Cover, side rh (blue); For yc2

2

47211-16F00-24K

COVER,SIDE,L(CHARCOAL)

COVER,SIDE,L(CHARCOAL)

Cover, side lh (charcoal); For m9t

2

47211-16F00-YC2

COVER,SIDE,L(BLUE)

COVER,SIDE,L(BLUE)

Cover, side lh (blue); For yc2

3

03541-1516A-000

Болт

Болт

замена

03541-15163-000

Болт

Болт

4

09148-05020-000

Гайка

Гайка

5

09409-07333-000

Зажим

Зажим

Clip, inner

6

47311-16F10-Y7L

COVER,UPR(BLACK)

COVER,UPR(BLACK)

Cover, upper (black); For m9t

6

47311-16F10-YC2

COVER,UPR(BLUE)

COVER,UPR(BLUE)

Cover, upper (blue) Cover, upper (blue); For yc2

7

68131-16F20-FP8

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

For m9t

7

68131-16F20-FP7

Эмблема

Эмблема

For yc2

8

09148-05038-000

Гайка

Гайка

Nut, inner

9

03541-1516A-000

Болт

Болт

замена

03541-15163-000

Болт

Болт

10

47312-16F00-000

CAP,UPR COVER

CAP,UPR COVER

Cap, upper cover
