Frame front cover для мотоциклов Suzuki TS50 (1986)

Москва и регионы России

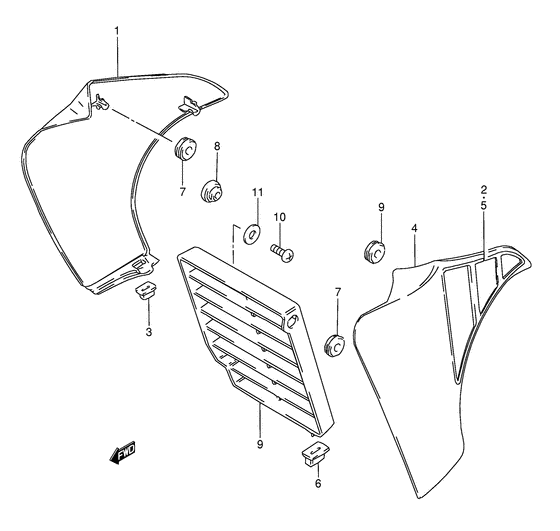

Frame front cover

Suzuki TS50

Frame front cover

Frame front cover

1

1

1

1

1

1

1

2

2

2

3

4

4

4

4

4

5

5

5

6

7

7

8

9

9

10

10

11

#

oem код

название

цена

1

47511-13702-0NF

COVER,RADIATOR,R

COVER,RADIATOR,R

Cover, frame front rh (blue); Model r

1

47511-13702-25Y

Cover, frame front rh (yellow)

Cover, frame front rh (yellow)

Cover, frame front rh (yellow); Model h/j/m

1

47511-13702-14L

Cover, frame front rh (white)

Cover, frame front rh (white)

Cover, frame front rh (white); Model h/j/m

1

47511-13702-08Y

Cover, frame front rh (blue)

Cover, frame front rh (blue)

Cover, frame front rh (blue); Model e/g

1

47511-13702-21C

Cover, frame front rh (black)

Cover, frame front rh (black)

Cover, frame front rh (black);

1

47511-13702-163

Cover, frame front rh (yellow)

Cover, frame front rh (yellow)

Cover, frame front rh (yellow); Model e/g

1

47511-13702-14C

Cover, frame front rh (red)

Cover, frame front rh (red)

Cover, frame front rh (red); Model e/g,

2

68660-13611-19F

Tape set, front rh (blue)

Tape set, front rh (blue)

Tape set, front rh (blue); Model j for 21c

2

68660-13611-10W

Tape set, front rh (blue)

Tape set, front rh (blue)

Tape set, front rh (blue); Model h

2

68660-13611-291

Tape set, front rh (black)

Tape set, front rh (black)

Tape set, front rh (black); Model e/g, model j for 14l,25y

3

47524-13600-000

CUSHION,RADIATOR COVER,L NO.2

CUSHION,RADIATOR COVER,L NO.2

Cushion, lh Cushion, rh;

4

47281-13652-0NF

COVER,FRAME FR,L

COVER,FRAME FR,L

Cover, frame front lh (blue); Model r

4

47281-13652-25Y

Cover, frame front lh (yellow)

Cover, frame front lh (yellow)

Cover, frame front lh (yellow); Model h/j/m

4

47281-13652-14L

Cover, frame front lh (white)

Cover, frame front lh (white)

Cover, frame front lh (white); Model h/j/m

замена

47281-13652-08Y

Cover, frame front lh (blue)

Cover, frame front lh (blue)

Cover, frame front lh (blue); Model e/g,

4

47281-13652-21C

Cover, frame front lh (black)

Cover, frame front lh (black)

Cover, frame front lh (black);

замена

47281-13652-163

Cover, frame front lh (yellow)

Cover, frame front lh (yellow)

Cover, frame front lh (yellow); Model e/g

4

47281-13652-13L

Cover,frame,fr

Cover,frame,fr

замена

47281-13652-14C

Cover, frame front lh (red)

Cover, frame front lh (red)

Cover, frame front lh (red); Model e/g,

5

68670-13611-19F

Tape set, front lh (blue)

Tape set, front lh (blue)

Tape set, front lh (blue); Model j for 21c

5

68670-13611-10W

Tape set, front lh (blue)

Tape set, front lh (blue)

Tape set, front lh (blue); Model h

5

68670-13611-291

Tape set, front lh (black)

Tape set, front lh (black)

Tape set, front lh (black); Model e/g, model j for 14l,25y

6

47285-13650-000

CUSHION,FRAME FR COVER,L

CUSHION,FRAME FR COVER,L

7

09320-08013-000

Крышка рамы

Крышка рамы

Grommet Cushion, upper;

8

09321-10007-000

Подушка

Подушка

Cushion, stopper Cushion, center;

9

47531-13650-000

LOUVER,FRAME FR

LOUVER,FRAME FR

10

09136-06061-000

Винт 6X16

Винт 6X16

Model m/r

10

02142-0616A-000

Болт

Болт

замена

02142-06163-000

Болт

Болт

Screw; Model e/g/h/j

11

09160-06079-000

Шайба

Шайба
