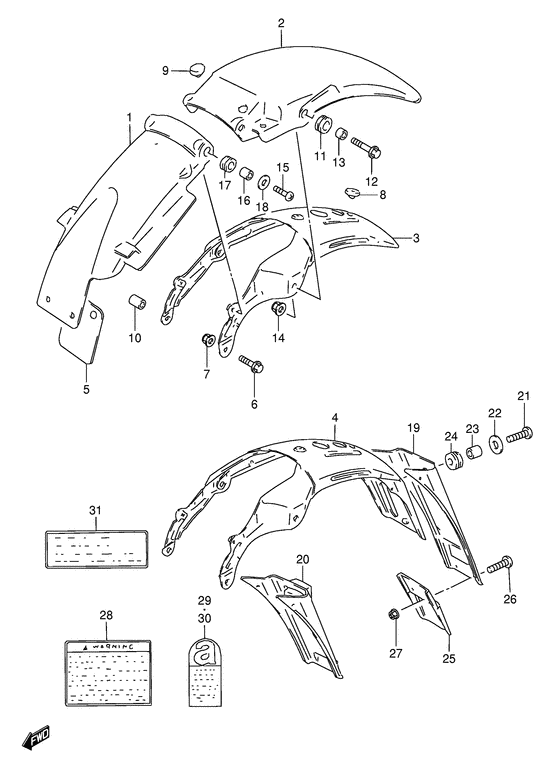

Заднее крыло для мотоциклов Suzuki TS50 (1994)

oem код

название

цена

63112-13750-000

FENDER, RR FR

Body, rear fender,front Rear fender, front; E4

замена

63112-13720-000

Rear fender, front

E1,e21,e25

63112-13710-000

Rear fender, front

E2,e16,e17,e18,e22

63113-13710-0NF

Fender, rear (blue)

Fender, rear (blue); Model r e15,e16,e18, for 0nf

63113-13700-0NF

FENDER,RR RR

Fender, rear (blue); Model r for 0nf

замена

63113-13720-21C

Fender, rear (black)

Fender, rear (black); Model m e22

63113-13720-14L

Fender, rear (white)

Fender, rear (white); Model m e22

63113-13720-25Y

FENDER,RR RR(YELLOW)

замена

63113-13710-25Y

Fender, rear (yellow)

Fender, rear (yellow); Model h/j/m e16,e17,e18

63113-13720-0NF

FENDER,RR RR(BLUE)

замена

63113-13710-14L

Fender, rear (white)

Fender, rear (white); Model h/j/m e16,e17,e18

63113-13710-10V

Fender, rear (white)

Fender, rear (white); Model e e18

63113-13710-163

Fender, rear (yellow)

Fender, rear (yellow); Model e/g e16,e18

63113-13710-14C

Fender, rear (red)

Fender, rear (red); Model e/g e16,e18

63113-13710-08Y

Fender, rear (blue)

Fender, rear (blue); Model e/g e16,e18

63113-13721-21C

Rear fender,rear(black)

замена

63113-13710-21C

Fender, rear (black)

Fender, rear (black); Model e/g/h/j/m e16,e17,, e18

63113-13700-25Y

Fender, rear (yellow)

Fender, rear (yellow); Model h/j/m

63113-13700-14L

Fender, rear (white)

Fender, rear (white); Model h/j/m

63113-13700-163

Fender, rear (yellow)

Fender, rear (yellow); Model e/g

63113-13700-14C

Fender, rear (red)

Fender, rear (red); Model e/g

63113-13700-08Y

Fender, rear (blue)

Fender, rear (blue); Model e/g

63113-13700-21C

Fender, rear (black)

Fender, rear (black); Model e/g/h/j/m

63120-13700-000

Reinforcement, rear fender

63120-34B00-000

Reinforcement, rear fender

E25

63120-13720-000

REINF,RR FENDER

E1,e21

63120-13710-000

REINF,RR FENDER

E15,e16,e17,e18,e22

63411-13700-000

GUARD,RR FENDER FR MUD

Mud guard, rear fender

01550-0840B-000

Болт

замена

01550-08403-000

Болт

Model r

01550-08407-000

Болт 8 X 40

Bolt, front; Model e/g/h/j/m

08319-31087-000

Гайка

09321-06016-000

Подушка

Cushion, reinforcement;

09321-10009-000

Подушка

Cushion, seat Cushion, seat;

09329-05003-000

Подушка

Cushion Cushion, side;

09320-12011-000

Валик

Cushion Cushion, rear;

01550-0835B-000

Болт

замена

01550-08353-000

Болт

Bolt, rear;

09180-08188-000

Кольцо/шайба

08319-31087-000

Гайка

02142-0620A-000

Болт

замена

02142-06203-000

Болт

Screw Screw, center; Model r

02142-06207-000

Винт 6X20

Screw, center; Model e/g/h/j/m

09180-06310-000

SPACER(6.5X10X10)

Spacer (6.8x10x10)

09320-10033-000

Подушка

09160-06077-000

Шайба (6.5X20X1.2)

Washer (6.5x20x1.2)

63311-13750-000

Extension, rear fender

E17

63311-13740-000

Extension, rear fender

E22

63311-34B00-000

EXTENSION,RR FENDER

E25

63311-13730-000

Extension, rear fender

E18

63311-13710-000

EXTENSION,RR FENDER

E15,e16

63311-13720-000

EXTENSION,RR FENDER

E1,e21

замена

02142-06163-000

Болт

Screw; Model r, e1,e16,e18,e22

02142-0616A-000

Болт

замена

02142-06164-000

Болт

Model e/g/h/j/m, e1,e16,e17,e18,e21,e22

замена

09160-06503-000

Шайба

E15

09160-06054-000

Шайба

Washer (6.5x22x1.6)

замена

09160-06063-000

Шайба

E16,e17,e18,e22

09180-06092-000

SPACER(6.2X8.3X6.1)

E1,e16,e17,e18,e21,e22

09320-08013-000

Крышка рамы

Grommet E1,e16,e17,e18,e21,e22

63312-13720-000

Extension, rear fender

E18

02142-0512A-000

Болт

Screw, lower

замена

02142-05123-000

Винт 5X12

Screw; E18

08319-3105B-000

Гайка

замена

08319-31053-000

Гайка

E18

68319-33EA1-000

LABEL,GENERAL WARNING

Label, warning (finnish) Label, warning warning; E15

68319-33E31-000

LABEL,GENERAL WARNING

Label, warning (franch)

замена

68319-33E30-000

Label, safety (french)

Label, warning (french) Label, warning safety; E4,e21

68319-33E21-000

LABEL,GENERAL WARNING

Label, warning (german)

замена

68319-33E20-000

Label, safety (german)

Label, warning (german) Label, warning safety; E22

68319-33E01-000

LABEL,GENERAL WARNING

Label, warning safety

замена

68319-33E00-000

Label,warning s

Label, warning safety Label, warning safety;

11967-82000-000

Наклейка

Label, asbestos warning Label, warning asbestos; E2

11967-13620-000

Label, warning asbestos

Label, warning asbestos (italian) Label, warning asbestos (italian); E18

11967-13610-000

Label, warning asbestos

Label, warning asbestos (french) Label, warning asbestos (french); E18

11967-13600-000

Label, warning asbestos

Label, warning asbestos (german) Label, warning asbestos (german); E18

68623-22D00-000

Label, caution fuel

E22

68623-14F00-000

LABEL,FUEL CAUTION

замена

68623-17D00-000

Ярлык топлива

Label, caution fuel Label, caution fuel; E2

68623-03D00-000

Label, unleaded fuel

Label, unleaded fuel; E18

99011-13636-18R

Manual, owner`s

Model r e18,e22, drawing not shown

99011-13636-01R

MANUAL,OWNER'S

Model r e4

99011-13636-012

Manual, owner`s

Model r

99011-13635-18R

Manual, owner`s

Model m e18

99011-13635-012

Manual, owner`s

Model m

99011-13634-18R

Manual, owner`s

Model j e18

99011-13634-012

Manual, owner`s

Model j

99011-13633-18R

Manual, owner`s

Model h e18

99011-13633-012

Manual, owner`s

Model h

99011-13631-01A

Manual, owner`s

Model e

68332-13610-000

Label, tire air pressure

E22, drawing not shown

68332-13620-000

Label, tire air pressure
