Заднее крыло для мотоциклов Suzuki TS50 (1995)

Москва и регионы России

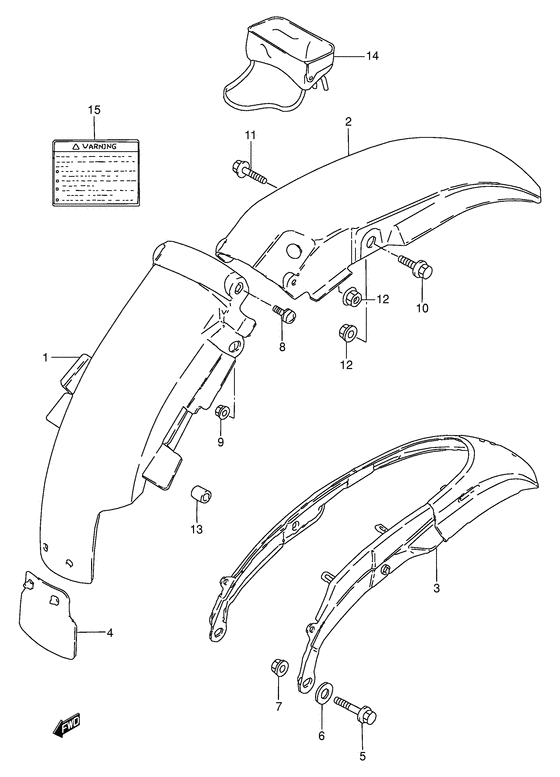

Заднее крыло

Suzuki TS50

Заднее крыло

Заднее крыло

1

2

2

2

2

2

2

2

2

3

4

5

5

6

7

8

8

9

10

11

11

12

12

13

14

14

15

#

oem код

название

цена

1

63112-13600-000

BODY,RR FENDER FR

BODY,RR FENDER FR

2

63113-13610-0NF

FENDER,RR RR(BLUE)

FENDER,RR RR(BLUE)

Fender, rear (blue); Model p/s

2

63113-13610-21C

Fender, rear (black)

Fender, rear (black)

Fender, rear (black); Model g/p/s

2

63113-13610-163

Fender, rear (yellow)

Fender, rear (yellow)

Fender, rear (yellow); Model e/f

2

63113-13610-14L

Fender, rear (white)

Fender, rear (white)

Fender, rear (white); Model e/f/g

2

63113-13610-14C

Fender, rear (red)

Fender, rear (red)

Fender, rear (red); Model e/f

2

63113-13600-163

Fender, rear (yellow)

Fender, rear (yellow)

Fender, rear (yellow); Model d

2

63113-13600-14L

Fender, rear (white)

Fender, rear (white)

Fender, rear (white); Model d

2

63113-13600-07P

Fender, rear (red)

Fender, rear (red)

Fender, rear (red); Model d

3

63120-13600-000

Reinforcement, rear fender

Reinforcement, rear fender

4

63411-33400-000

GUIDE,RR FENDER MUD

GUIDE,RR FENDER MUD

Mud guard, front Guard, rear fender mat;

5

01550-0845B-000

Болт

Болт

замена

01550-08453-000

Болт головки цилиндров

Болт головки цилиндров

Bolt, front; Model s

5

01550-08457-000

Болт

Болт

Bolt, cyl head no.5 Bolt, front; Model d/e/f/g/p

6

09169-08026-XC0

Шайба

Шайба

замена

09169-08026-000

Washer,rr fende

Washer,rr fende

Washer;

7

08319-31087-000

Гайка

Гайка

8

02142-06167-000

Винт крестовый 6x16

Винт крестовый 6x16

Screw Screw; Model s

8

02112-16167-000

Болт

Болт

замена

02152-06168-000

Болт

Болт

Model d/e/f/g/p

9

08319-31067-000

Гайка

Гайка

Nut, center

замена

01550-08253-000

Болт

Болт

Model s

10

01550-0825B-000

Болт

Болт

замена

01517-08254-000

Болт нижней опоры

Болт нижней опоры

Model d/e/f/g/p

замена

01550-08453-000

Болт головки цилиндров

Болт головки цилиндров

Bolt, rh; Model s

11

01550-0845B-000

Болт

Болт

замена

01517-08455-000

Bolt, front

Bolt, front

Model p

11

01550-0840B-000

Болт

Болт

замена

01517-08405-000

Болт

Болт

Model d/e/f/g

12

08319-31087-000

Гайка

Гайка

13

09329-05003-000

Подушка

Подушка

Cushion

14

94900-13600-4JN

Bag assy, seat tail (yellow)

Bag assy, seat tail (yellow)

Bag assy, seat tail (yellow); Model g/p/s

14

94900-13600-58D

Bag assy, seat tail (blue)

Bag assy, seat tail (blue)

Bag assy, seat tail (blue); Model f

15

68319-33E01-000

LABEL,GENERAL WARNING

LABEL,GENERAL WARNING

Label, warning safety

замена

68319-15D00-000

Label, warning safety

Label, warning safety

16

99011-13645-01A

Manual, owner`s

Manual, owner`s

Model s, drawing not shown
