Обтекатель задний для мотоциклов Suzuki TS50 (1995)

Москва и регионы России

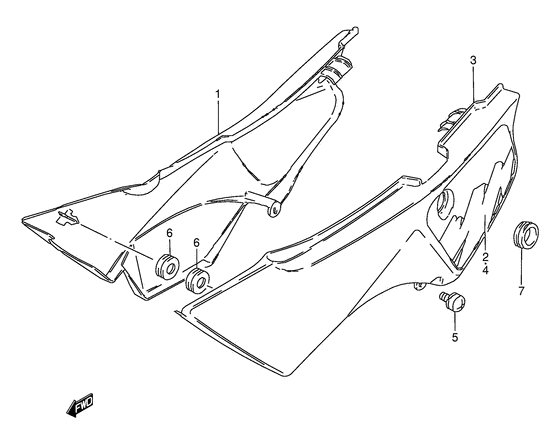

Обтекатель задний

Suzuki TS50

Обтекатель задний

Обтекатель задний

1

1

2

2

3

3

4

4

5

6

6

7

#

oem код

название

цена

1

47111-13600-019

Cover, frame rh (black)

Cover, frame rh (black)

Cover, frame rh (black);

1

47111-13600-0NF

Cover, frame rh (blue)

Cover, frame rh (blue)

Cover, frame rh (blue);

2

68135-13610-B7L

Tape, frame cover rh

Tape, frame cover rh

For 019

2

68135-13610-B7M

TAPE,FRAME COVER,R

TAPE,FRAME COVER,R

For 0nf

3

47211-13600-000

COVER,FRAME,L(NON PAINT)

COVER,FRAME,L(NON PAINT)

замена

47211-13600-019

Cover, frame lh (black)

Cover, frame lh (black)

Cover, frame lh (black);

3

47211-13600-0NF

COVER FRAME,L(BLUE)

COVER FRAME,L(BLUE)

Cover, frame lh (blue);

4

68145-13610-B7L

TAPE,FRAME COVER,L

TAPE,FRAME COVER,L

For 019

4

68145-13610-B7M

Tape, frame cover lh

Tape, frame cover lh

For 0nf

5

09136-06002-000

SCREW(6X12)

SCREW(6X12)

6

09320-08018-000

Валик

Валик

Cushion, lh

7

45522-04700-000

GROMMET,SEAT LOCK HOLE

GROMMET,SEAT LOCK HOLE

Grommet, seat lock hole;
