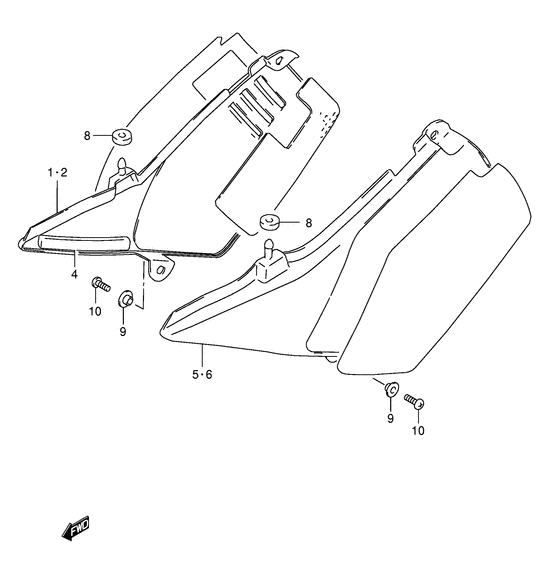

Обтекатель задний для мотоциклов Suzuki TS125 (1994)

Москва и регионы России

Обтекатель задний

Suzuki TS125

Обтекатель задний

Обтекатель задний

1

1

1

1

1

1

2

2

2

2

2

4

5

5

5

5

5

5

6

6

6

6

6

6

8

8

9

9

10

10

10

10

#

oem код

название

цена

1

47110-48760-30H

Cover, frame rh (white)

Cover, frame rh (white)

Cover, frame rh (white); Purchase locally,model r

1

47110-48760-14L

Cover, frame rh (white)

Cover, frame rh (white)

Cover, frame rh (white); Purchase locally,model n

1

47110-48760-0NF

Cover, frame rh (blue)

Cover, frame rh (blue)

Cover, frame rh (blue); Purchase locally,model r

1

47110-48760-34S

Cover, frame rh (blue)

Cover, frame rh (blue)

Cover, frame rh (blue); Purchase locally,model n

1

47110-48760-14C

Cover, frame rh (red)

Cover, frame rh (red)

Cover, frame rh (red); Purchase locally

1

47110-48760-21C

Cover, frame rh (black)

Cover, frame rh (black)

Cover, frame rh (black); Purchase locally

2

47111-42A00-30H

COVER,FRAME,R(WHITE)

COVER,FRAME,R(WHITE)

Cover, frame rh (white); Model r

замена

47111-42A00-14L

Cover, frame rh (white)

Cover, frame rh (white)

Cover, frame rh (white); Model n

2

47111-42A00-0NF

COVER,FRAME,R(BLUE)

COVER,FRAME,R(BLUE)

Cover, frame rh (blue); Model r

2

47111-42A00-34S

COVER,FRAME,R(BLUE)

COVER,FRAME,R(BLUE)

Cover, frame rh (blue); Model n

2

47111-42A00-14C

COVER,FRAME,R(RED)

COVER,FRAME,R(RED)

Cover, frame rh (red);

2

47111-42A00-21C

COVER,FRAME,R(BLACK)

COVER,FRAME,R(BLACK)

Cover, frame rh (black);

3

68135-48760-000

Tape, rh

Tape, rh

Purchase locally, drawing not shown

4

47161-48760-000

Подушка

Подушка

5

47210-48760-30H

Cover, frame lh (white)

Cover, frame lh (white)

Cover, frame lh (white); Purchase locally,model r

5

47210-48760-14L

Cover, frame lh (white)

Cover, frame lh (white)

Cover, frame lh (white); Purchase locally,model n

5

47210-48760-0NF

Cover, frame lh (blue)

Cover, frame lh (blue)

Cover, frame lh (blue); Purchase locally,model r

5

47210-48760-34S

Cover, frame lh (blue)

Cover, frame lh (blue)

Cover, frame lh (blue); Purchase locally,model n

5

47210-48760-14C

Cover, frame lh (red)

Cover, frame lh (red)

Cover, frame lh (red); Purchase locally

5

47210-48760-21C

Cover, frame lh (black)

Cover, frame lh (black)

Cover, frame lh (black); Purchase locally

6

47211-42A00-30H

COVER,FRAME,L(WHITE)

COVER,FRAME,L(WHITE)

Cover, frame lh (white); Model r

6

47211-42A00-14L

Cover, frame lh (white)

Cover, frame lh (white)

Cover, frame lh (white); Model n

6

47211-42A00-0NF

COVER,FRAME,L(BLUE)

COVER,FRAME,L(BLUE)

Cover, frame lh (blue); Model r

6

47211-42A00-34S

Cover, frame lh (blue)

Cover, frame lh (blue)

Cover, frame lh (blue); Model n

6

47211-42A00-14C

COVER,FRAME,L(RED)

COVER,FRAME,L(RED)

Cover, frame lh (red);

6

47211-42A00-21C

COVER,FRAME,L(BLACK)

COVER,FRAME,L(BLACK)

Cover, frame lh (black);

7

68145-48760-000

Tape, lh

Tape, lh

Purchase locally, drawing not shown

8

47161-14A00-000

Валик

Валик

Cushion, boss

9

09169-06041-000

Шайба

Шайба

10

09125-06088-000

Болт

Болт

Screw, front Model r

10

02142-0616A-000

Болт

Болт

замена

02142-06164-000

Болт

Болт

Model n
