Обтекатель сидения для мотоциклов Suzuki SV650 (2001)

Москва и регионы России

Обтекатель сидения

Suzuki SV650

Обтекатель сидения

Обтекатель сидения

1

1

1

1

2

2

2

2

3

3

3

3

4

4

4

4

5

5

5

5

6

6

6

7

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

#

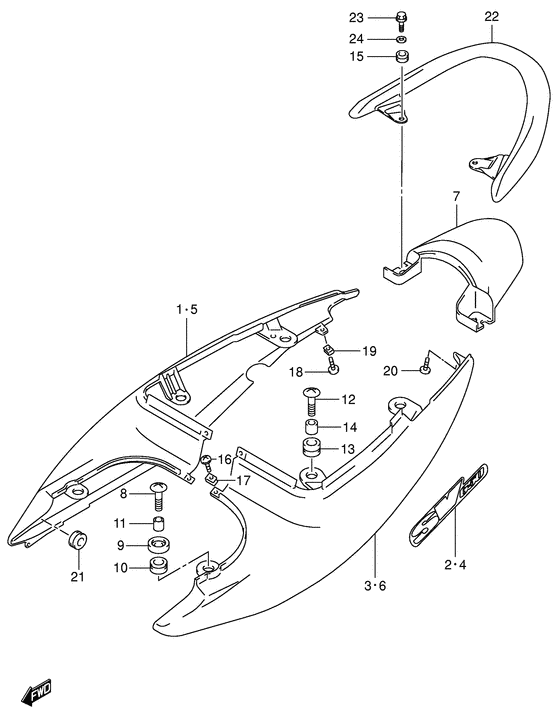

oem код

название

цена

1

45501-20F00-Y9F

Cover,seat tail,r

Cover,seat tail,r

Cover, seat tail rh (yellow); Sv650x/ux

1

45501-20F00-Y7M

COVER,SEAT TAIL,R(RED)

COVER,SEAT TAIL,R(RED)

Cover, seat tail rh (red); Sv650x/ux

1

45501-20F00-Y7L

COVER,SEAT TAIL,R(BLACK)

COVER,SEAT TAIL,R(BLACK)

Cover, seat tail rh (black); Sv650x/ux

1

45501-20F00-Y7E

COVER,SEAT TAIL,R(BLUE)

COVER,SEAT TAIL,R(BLUE)

Cover, seat tail rh (silver); Sv650x/ux

2

68165-20F00-N0K

EMBLEM,SEAT TAIL COVER SV650

EMBLEM,SEAT TAIL COVER SV650

For y9f

2

68165-20F00-N0H

EMBLEM,SEAT TAIL COVER SV650

EMBLEM,SEAT TAIL COVER SV650

For y7m

2

68165-20F00-N0G

EMBLEM,SEAT TAIL COVER SV650

EMBLEM,SEAT TAIL COVER SV650

For y7l

2

68165-20F00-N0J

EMBLEM,SEAT TAIL COVER SV650

EMBLEM,SEAT TAIL COVER SV650

For y7e

3

45502-20F00-Y9F

COVER,SEAT TAIL,L(YELLOW)

COVER,SEAT TAIL,L(YELLOW)

Cover, seat tail lh (yellow); Sv650x/ux

3

45502-20F00-Y7M

Cover comp,seat tail,l

Cover comp,seat tail,l

C0ver, seat tail lh (red); Sv650x/ux

3

45502-20F00-Y7L

Cover comp,seat tail,l

Cover comp,seat tail,l

Cover, seat tail lh (black); Sv650x/ux

3

45502-20F00-Y7E

COVER,SEAT TAIL,L(BLUE)

COVER,SEAT TAIL,L(BLUE)

Cover, seat tail lh (silver); Sv650x/ux

4

68165-20F00-N0K

EMBLEM,SEAT TAIL COVER SV650

EMBLEM,SEAT TAIL COVER SV650

For y9f

4

68165-20F00-N0H

EMBLEM,SEAT TAIL COVER SV650

EMBLEM,SEAT TAIL COVER SV650

For y7m

4

68165-20F00-N0G

EMBLEM,SEAT TAIL COVER SV650

EMBLEM,SEAT TAIL COVER SV650

For y7l

4

68165-20F00-N0J

EMBLEM,SEAT TAIL COVER SV650

EMBLEM,SEAT TAIL COVER SV650

For y7e

5

45511-19F00-000

COVER,SEAT TAIL,R

COVER,SEAT TAIL,R

замена

45501-20F10-Y9F

Cover, seat tail rh

Cover, seat tail rh

YELLOW Cover, seat tail rh (yellow); Sv650sx/sux

5

45501-19F10-Y7M

COVER,SEAT TAIL,R(RED)

COVER,SEAT TAIL,R(RED)

замена

45501-20F10-Y7M

Cover, seat tail rh

Cover, seat tail rh

RED Cover, seat tail rh (red); Sv650sx/sux

5

45501-19F10-Y7L

COVER,SEAT TAIL,R(BLACK)

COVER,SEAT TAIL,R(BLACK)

замена

45501-20F10-Y7L

Cover, seat tail rh

Cover, seat tail rh

BLACK Cover, seat tail rh (black); Sv650sx/sux

5

45501-19F10-Y7E

COVER,SEAT TAIL,R(BLUE)

COVER,SEAT TAIL,R(BLUE)

замена

45501-20F10-Y7E

Cover, seat tail rh

Cover, seat tail rh

SILVER Cover, seat tail rh (silver); Sv650sx/sux

6

45502-19F10-Y9F

COVER,SEAT TAIL,L(YELLOW)

COVER,SEAT TAIL,L(YELLOW)

замена

45502-20F10-Y9F

Cover, seat tail lh

Cover, seat tail lh

YELLOW Cover, seat tail lh (yellow); Sv650sx/sux

6

45502-19F10-Y7M

COVER,SEAT TAIL,L(RED)

COVER,SEAT TAIL,L(RED)

замена

45502-20F10-Y7M

Cover, seat tail lh

Cover, seat tail lh

RED Cover, seat tail lh (red); Sv650sx/sux

замена

45502-20F10-Y7L

Cover, seat tail lh

Cover, seat tail lh

BLACK Cover, seat tail lh (black); Sv650sx/sux

6

45512-19F00-000

COVER,SEAT TAIL,L

COVER,SEAT TAIL,L

замена

45502-20F10-Y7E

Cover, seat tail lh

Cover, seat tail lh

SILVER Cover, seat tail lh (silver); Sv650sx/sux

7

45503-19F50-Y7L

COVER,SEAT TAIL CTR

COVER,SEAT TAIL CTR

Cover, seat tail center (black); For y7l

7

45503-19F50-35W

COVER,SEAT TAIL CTR

COVER,SEAT TAIL CTR

Cover, seat tail center (gray); For y7e,y7m,y9f

8

09136-06083-000

Винт 6X30

Винт 6X30

Screw, front (6x30) Screw, front (6x30);

9

47116-19F00-000

CUSHION,SEAT TAIL FR UPR

CUSHION,SEAT TAIL FR UPR

Cushion, fr upper (10x28x13);

10

47115-19F00-000

Валик

Валик

Cushion, fr lower (10x22x15);

11

09180-06294-000

Прокладка впрыска топлива

Прокладка впрыска топлива

Spacer, fuel injection Spacer (6.5x10x15.70);

12

09136-06105-000

Болт

Болт

Screw (6x20) Screw, center (6x20);

13

09320-10045-000

Подушка

Подушка

Cushion (10x28x19) Cushion (10x28x19);

14

09180-06286-000

Кольцо/шайба

Кольцо/шайба

Spacer (6.5x10x9.4);

15

47115-05F00-000

CUSHION,SEAT TAIL COVER RR

CUSHION,SEAT TAIL COVER RR

Cushion, rear (15x28x12);

16

03241-1512B-000

Болт

Болт

замена

03241-15123-000

Винт

Винт

17

09148-05038-000

Гайка

Гайка

Nut, inner

18

03241-1512B-000

Болт

Болт

замена

03241-15123-000

Винт

Винт

19

09148-05038-000

Гайка

Гайка

Nut, inner

20

03241-0410A-000

Болт

Болт

замена

03242-04103-000

Болт

Болт

Screw,striker

21

09320-08018-000

Валик

Валик

Cushion, lh Cushion (8x26x7);

22

46210-19F50-291

HANDLE,PILLION RIDER(BLACK)

HANDLE,PILLION RIDER(BLACK)

Handle, pillion rider (black);

23

01551-0825A-000

Болт

Болт

замена

01551-08253-000

Болт

Болт

24

09160-08126-000

Шайба

Шайба
