Crankcase cover ass`y (v для мотоциклов Suzuki SFV650 Gladius (2011)

Москва и регионы России

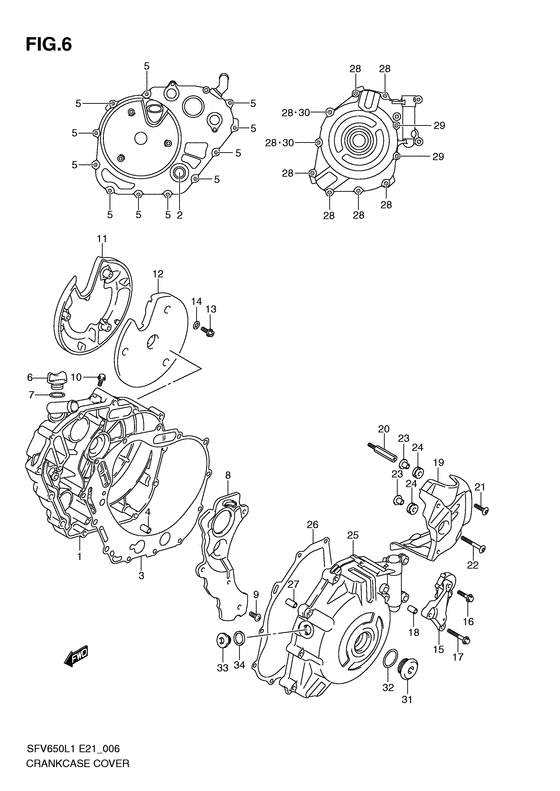

Crankcase cover ass`y (v

Suzuki SFV650 Gladius

Crankcase cover ass`y (v

Crankcase cover ass`y (v

1

2

3

4

5

5

5

5

5

5

5

5

5

5

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

23

24

24

25

26

27

28

28

28

28

28

28

28

28

29

29

30

30

31

32

33

34

#

oem код

название

цена

1

11340-44H00-000

COVER,CLUTCH

COVER,CLUTCH

2

11971-33210-000

LENS,OIL LEVEL CHECK

LENS,OIL LEVEL CHECK

Lens, oil check Lens, oil level check;

3

11482-44H00-000

GASKET,CLUTCH COVER

GASKET,CLUTCH COVER

Gasket, clutch cover inner;

4

04211-09149-000

Штифт

Штифт

Dowel pin

5

09103-06214-000

BOLT(6X35)

BOLT(6X35)

Bolt (6x35) Bolt (6x35);

6

11971-25D00-000

PLUG,ENGINE OIL FILLER

PLUG,ENGINE OIL FILLER

Plug, eng oil filler Plug, oil filler;

7

09280-17003-000

O RING(D:3.1,ID:16.8)

O RING(D:3.1,ID:16.8)

O ring, oil filler cap O ring (d:3.1,id:16.8);

8

11343-44H01-000

SEPARATOR,OIL

SEPARATOR,OIL

замена

11343-44H00-000

Сепаратор масла

Сепаратор масла

9

09106-06098-000

BOLT(6X12)

BOLT(6X12)

Bolt (6x12);

10

09103-06188-000

Болт 6X10

Болт 6X10

Bolt (6x10);

11

11342-44H00-000

COVER,CLUTCH OUTER

COVER,CLUTCH OUTER

12

11344-44H00-000

DAMPER,CLUTCH OUTER COVER

DAMPER,CLUTCH OUTER COVER

13

01550-06167-000

Болт

Болт

замена

02162-06167-000

Болт

Болт

14

09168-06023-000

GASKET(5.8X13X1.2)

GASKET(5.8X13X1.2)

Gasket (5.8x13x1.2) Gasket (5.8x13x1.2);

15

11361-44H00-000

COVER,ENGINE SPROCKET INNER

COVER,ENGINE SPROCKET INNER

16

01547-0620A-000

Болт

Болт

17

01547-0635A-000

Болт

Болт

Bolt;

18

04211-09129-000

Стопор

Стопор

Pin Pin;

19

11371-44H00-000

COVER,ENGINE SPROCKET OUTER

COVER,ENGINE SPROCKET OUTER

20

11372-22H00-000

BOLT,SEC DRIVE UNIT COVER

BOLT,SEC DRIVE UNIT COVER

21

09139-06028-000

SCREW(6X20)

SCREW(6X20)

Screw, rear Bolt (6x20);

22

09139-06105-000

SCREW(6X40)

SCREW(6X40)

Bolt (6x40);

23

09169-06062-000

Кольцо/шайба

Кольцо/шайба

Washer Washer;

24

09320-09016-000

Подушка

Подушка

Cushion, holder

25

11351-44H00-000

Крышка зажигания

Крышка зажигания

26

11483-19F00-000

GASKET,MAGNETO COVER

GASKET,MAGNETO COVER

27

04211-09149-000

Штифт

Штифт

Dowel pin

28

09103-06214-000

BOLT(6X35)

BOLT(6X35)

Bolt (6x35) Bolt (6x35);

29

09103-06239-000

BOLT(6X65)

BOLT(6X65)

Bolt (6x65) Bolt (6x65);

30

09168-06023-000

GASKET(5.8X13X1.2)

GASKET(5.8X13X1.2)

Gasket (5.8x13x1.2) Gasket (5.8x13x1.2);

31

09259-26011-000

PLUG(26X9)

PLUG(26X9)

32

09280-22008-000

O RING(D:3.1,ID:22.7)

O RING(D:3.1,ID:22.7)

O ring (d:3.1,id:22.7);

33

09248-16012-000

PLUG(16X8)

PLUG(16X8)

Plug, t.d.c check Plug;

34

09168-16002-000

GASKET(16X22X2)

GASKET(16X22X2)

Gasket (16x22x2);
