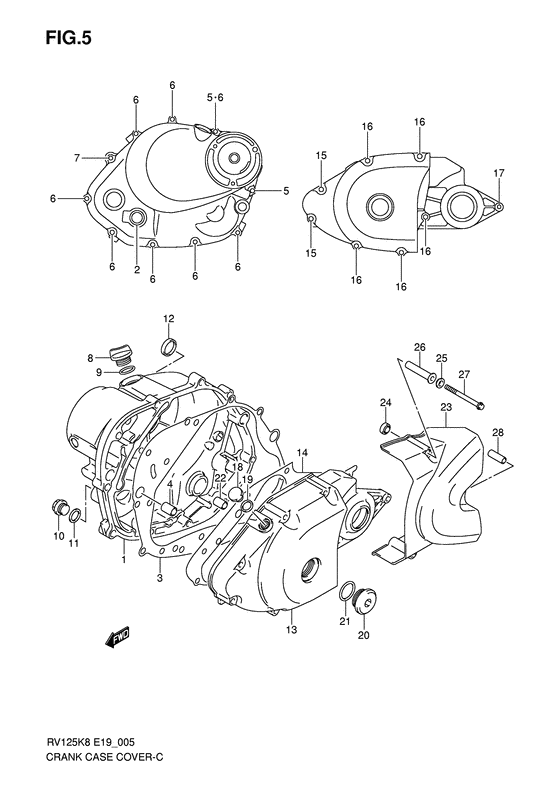

Crankcase cover ass`y (v для мотоциклов Suzuki RV125 (2010)

Москва и регионы России

Crankcase cover ass`y (v

Suzuki RV125

Crankcase cover ass`y (v

Crankcase cover ass`y (v

1

1

2

3

4

5

5

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

7

7

8

9

10

11

12

13

13

14

15

15

15

15

16

16

16

16

16

16

16

16

16

16

17

18

19

20

21

22

23

23

24

25

26

27

27

28

#

oem код

название

цена

1

11340-13G00-000

COVER,CLUTCH

COVER,CLUTCH

Model l0

1

11340-42A30-000

COVER,CLUTCH

COVER,CLUTCH

Model k8/k9

2

11971-45010-000

LENS,OIL LEVEL CHECK

LENS,OIL LEVEL CHECK

Lens, oil level;

3

11482-05211-000

GASKET,CLUTCH COVER

GASKET,CLUTCH COVER

Gasket, clutch cover Gasket, clutch cover;

4

04211-13189-000

Штифт

Штифт

Pin;

5

09168-06023-000

GASKET(5.8X13X1.2)

GASKET(5.8X13X1.2)

Gasket (5.8x13x1.2)

6

01547-0630A-000

Болт

Болт

Model l0

6

01547-0630B-000

Болт

Болт

Bolt Model k8/k9

7

01547-0645A-000

Болт

Болт

Bolt; Model l0

7

01547-0645B-000

Болт

Болт

Model k8/k9

8

11971-25D00-000

PLUG,ENGINE OIL FILLER

PLUG,ENGINE OIL FILLER

Plug, eng oil filler Plug, engine oil filler;

9

09280-17003-000

O RING(D:3.1,ID:16.8)

O RING(D:3.1,ID:16.8)

O ring, oil filler cap O ring;

10

09247-14026-000

Винт, сливной.

Винт, сливной.

Plug, drain Plug, oil check;

11

09168-14002-000

GASKET(13.8X18.8X4.8)

GASKET(13.8X18.8X4.8)

Gasket;

12

11342-12C51-000

PLUG,CLUTCH COVER KICK

PLUG,CLUTCH COVER KICK

Plug, clutch cover kick

13

11351-13G10-000

Крышка зажигания

Крышка зажигания

Model l0

13

11351-13G00-000

Крышка зажигания

Крышка зажигания

Model k8/k9

14

11483-13G00-000

GASKET,MAGNETO COVER

GASKET,MAGNETO COVER

15

01547-0640A-000

Болт

Болт

Model l0

15

01547-0640B-000

Болт

Болт

Model k8/k9

16

01547-0650A-000

Болт

Болт

Model l0

16

01547-0650B-000

Болт

Болт

Model k8/k9

17

09103-06293-000

BOLT(6X45)

BOLT(6X45)

18

09247-12104-000

Заглушка T D C

Заглушка T D C

Plug, tdc;

19

09168-12002-000

Прокладка

Прокладка

Gasket

20

09259-26011-000

PLUG(26X9)

PLUG(26X9)

Plug, crankshaft hole;

21

09280-22008-000

O RING(D:3.1,ID:22.7)

O RING(D:3.1,ID:22.7)

22

04211-09129-000

Стопор

Стопор

Pin Pin;

23

11361-13G30-000

COVER,ENGINE SPROCKET

COVER,ENGINE SPROCKET

Model l0

23

11361-13G10-000

COVER,ENGINE SPROCKET

COVER,ENGINE SPROCKET

Model k8/k9

24

09161-09005-000

WASHER(8.7X16X5)

WASHER(8.7X16X5)

Cushion, inner Washer;

25

09161-09006-000

WASHER(8.7X15X2.1)

WASHER(8.7X15X2.1)

Cushion, outer Washer;

26

09180-06321-000

Кольцо/шайба

Кольцо/шайба

Spacer, engine sprocket Spacer, engine sprocket;

27

01547-0660A-000

Болт

Болт

Bolt; Model l0

27

01547-0660B-000

Болт

Болт

Bolt, crankcase Model k8/k9

28

11363-13G00-000

DAMPER,SPROCKET COVER NO.2

DAMPER,SPROCKET COVER NO.2
