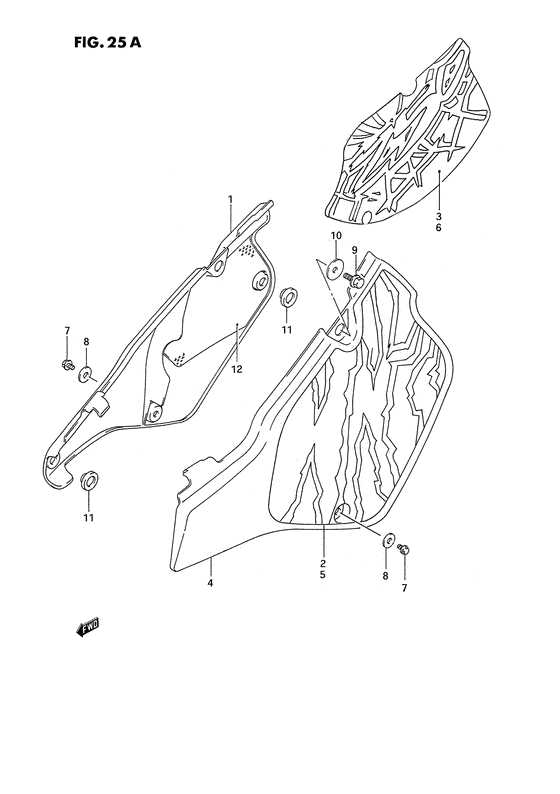

Обтекатель задний для мотоциклов Suzuki RMX250 (1995)

oem код

название

цена

47111-05D00-30H

COVER,FRAME,R(WHITE)

Cover, frame rh (white) Cover, frame rh (white); Model p/r/s/t

47111-05D00-25Y

COVER,FRAME,R(YELLOW)

Cover, frame rh (yellow) Cover, frame rh (yellow); Model n

68135-05D10-L59

Tape, rh

Tape, rh Model n

68131-05D00-A4J

Emblem, rh

Emblem, rh Model p

47211-27C00-30H

COVER,FRAME,L(WHITE)

Cover, frame lh (white) Cover, frame lh (white); Model p/r/s/t

47211-27C00-25Y

COVER,FRAME,L(YELLOW)

Cover, frame lh (yellow) Cover, frame lh (yellow); Model n

68145-05D10-L59

Tape, lh

Tape, lh Model n

68141-05D00-A4J

Emblem, lh

Emblem, lh Model p

01547-06167-000

Болт

Bolt, fastener bracket Bolt, front lh;

09168-06027-000

GASKET(6.5X20X1.5)

Washer (6.5x20x1.5)

замена

01810-08207-000

Болт

Model r

01550-08207-000

Болт

замена

01517-08207-000

Болт

Bolt, rear; Model n/p

09169-08045-000

Шайба

Washer, rear Washer, rear;

09321-10018-000

Подушка

Cushion, muffler rear;

47167-05D00-000

Shield,frame co

Heat shield, front rh Model p/r/s/t

47166-05D00-000

HEATSHIELD,FRAME COVER,R

Heat shield, rh refer to fig.25a(e-11) for mod
