Stand comp для мотоциклов Suzuki RM80 (1994)

Москва и регионы России

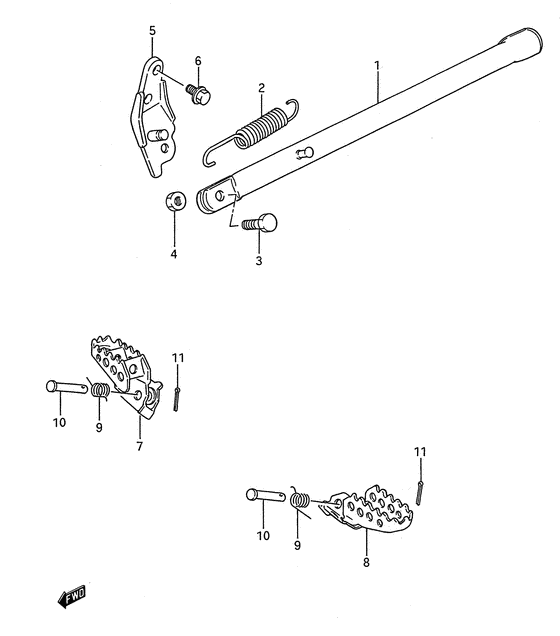

Stand comp

Suzuki RM80

Stand comp

Stand comp

1

2

3

4

4

4

5

6

6

6

7

8

9

9

10

10

11

11

11

11

#

oem код

название

цена

1

42310-02B00-019

STAND,PROP(BLACK)

STAND,PROP(BLACK)

Stand, prop (black)

замена

42310-02B00-19F

Stand, prop (blue)

Stand, prop (blue)

Model g/h/j/k/l

2

09443-17007-000

Пружина

Пружина

3

09100-08140-000

BOLT(8X25)

BOLT(8X25)

Bolt (8x28)

4

08310-0008A-000

Гайка

Гайка

Nut, bead stopper

4

08310-0008B-000

Гайка

Гайка

замена

08310-00083-000

Гайка

Гайка

Model r/s

4

08310-00087-000

Гайка 8MM

Гайка 8MM

замена

08310-22088-000

Гайка

Гайка

Model g/h/j/k/l/m/n/p

замена

42330-02B01-19F

Bracket, prop stand (blue)

Bracket, prop stand (blue)

Model h/j/k/l

5

42330-02B01-019

BRACKET,PROP STAND(BLACK)

BRACKET,PROP STAND(BLACK)

Bracket, prop stand (black)

замена

42330-02B00-19F

Bracket, prop stand (blue)

Bracket, prop stand (blue)

Model g

6

01550-0816A-000

Болт крепёжный

Болт крепёжный

Bolt, rear

замена

01550-08163-000

Болт крепёжный

Болт крепёжный

Model r/s

6

01500-0816B-000

Заглушка дренажная

Заглушка дренажная

Bolt

замена

01107-08166-000

Bolt m8x1.25x16

Bolt m8x1.25x16

Model h/j/k/l/m/n/p

6

01550-0816B-000

Болт крепёжный

Болт крепёжный

замена

01517-08166-000

Bolt 8x16

Bolt 8x16

Model g

замена

43550-02B01-1AZ

Footrest, front rh (yellow)

Footrest, front rh (yellow)

Model n

замена

43550-02B01-0RP

Footrest, front rh (yellow)

Footrest, front rh (yellow)

Model m

замена

43550-02B01-19F

Footrest, front rh (blue)

Footrest, front rh (blue)

Model k/l

7

43550-02B01-019

FOOTREST,FR,R

FOOTREST,FR,R

Footrest, front rh (black)

замена

43550-02B00-19F

Footrest, front rh (blue)

Footrest, front rh (blue)

Model g/h/j

замена

43560-02B00-1AZ

Footrest, front lh (yellow)

Footrest, front lh (yellow)

Model n

замена

43560-02B00-0RP

Footrest, front lh (yellow)

Footrest, front lh (yellow)

Model m

8

43560-02B00-019

FOOTREST,FR,L

FOOTREST,FR,L

Footrest, front lh (black)

замена

43560-02B00-19F

Footrest, front lh (blue)

Footrest, front lh (blue)

Model g/h/j/k/l

9

09448-14012-000

Пружина

Пружина

Spring Spring;

10

09200-08057-000

Штифт

Штифт

11

09204-01002-000

Стопор

Стопор

Cotter pin Model n/p/r/s

11

04111-2020A-000

Штифт

Штифт

Cotter pin, rod end

замена

04111-20208-000

20 x 20 cotter

20 x 20 cotter

Cotter pin Cotter pin; Model g/h/j/k/l/n
