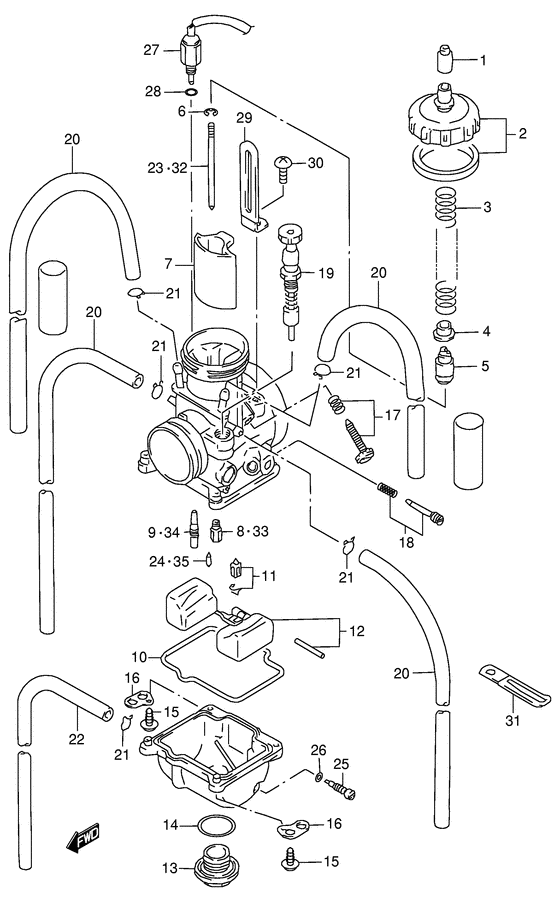

Carburetor assy для мотоциклов Suzuki RM125 (2000)

oem код

название

цена

13200-36E40-000

Карбюратор

Model y

13200-36E30-000

Карбюратор

Model x

13681-43D30-000

CAP,CARBURETOR

Cap, carburetor

13260-43D30-000

CAP SET,TOP

13573-43D30-000

SPRING,THROTTLE VALVE

Spring, throttle valve

13424-43D30-000

COLLAR,THROTTLE VALVE

Collar, throttle valve

Держатель кабеля

CLIP,NEEDLE

Клапан дросселя

Жиклер главный (175)

Jet, main (175); Model y

09491-36008-000

Жиклер главный (180)

Jet, main (180); Model x

09492-50023-000

JET,SLOW(50)

Jet, pilot (50); Model y

09492-55017-000

JET,SLOW(55)

Jet, pilot (55); Model x

13696-44E00-000

Прокладка муфты

Gasket, float chamber

13370-43D30-000

VALVE SET,FLOAT

Valve set, float

Поплавок

Болт сквозной

Кольцо

Болт

замена

02112-34163-000

Болт

Screw, shift knob

13693-36E00-000

Пластина

Binder Plate;

13270-43D30-000

SCREW SET,STOP

13280-43D30-000

SCREW SET,AIR

13410-36E40-000

Втулка

Model y

13410-43D30-000

Втулка

Starter valve Model x

13686-36E00-000

HOSE(4X7X620)

Hose (4x7x620); Up/rh l:620->80, up/lh l:620->50, rh l:620->00, lh l:620-

09401-06101-000

Зажим

09351-35653-600

HOSE(3.5X6.5X600)

Hose (3.5x6.5x600) Hose (3.5x6.5x600); L:600->30

13383-36E20-000

NEEDLE(R1469LS)

Needle, jet (r1469l) Needle, jet (r1469l); Model y

13383-28E00-000

Отсутствующе

Needle, jet (r1469ms) Needle, jet (r1469ms); Model x

09492-55019-000

JET,POWER(55)

Jet, power (55) Jet, power (55);

13247-44E00-000

Винт дренажный

13256-44E00-000

Кольцо

13160-37E01-000

SOLENOID ASSY

замена

13160-37E00-000

Solenoid assy

Model x

13453-37E00-000

Кольцо

13451-37E00-000

Зажим

13452-37E00-000

Болт

Screw;

09404-08206-000

CLAMP(L:65 T:0.8)

Clamp Clamp, carburetor hose (l:82);

09404-06432-000

CLAMP(L:65)

Clamp (l:80) Clamp, air vent (l:60);

13383-36E90-000

NEEDLE,JET(R1471KS)

Needle, jet (r1471ks) Needle, jet (r1471ks); Opt,model y

13383-36E80-000

Needle,jet,r147

Needle, jet (r1470ks) Needle, jet (r1470ks); Opt,model y

13383-36E70-000

NEEDLE,JET(R1469KS)

Needle, jet (r1469ks) Needle, jet (r1469ks); Opt,model y

13383-36E60-000

Needle,jet,r146

Needle, jet (r1468ks) Needle, jet (r1468ks); Opt,model y

13383-36E50-000

NEEDLE,JET(R1467KS)

Needle, jet (r1467ks) Needle, jet (r1467ks); Opt,model y

13383-36E40-000

NEEDLE,JET(R1471LS)

Needle, jet (r1471ls) Needle, jet (r1471ls); Opt,model y

13383-36E30-000

NEEDLE,JET(R1470LS)

Needle, jet (r1470ls) Needle, jet (r1470ls); Opt,model y

13383-36E20-000

NEEDLE(R1469LS)

Needle, jet (r1469l) Needle, jet (r1469ls); Opt,model y

13383-36E10-000

Needle,jet,r146

Needle, jet (r1468ls) Needle, jet (r1468ls); Opt,model y

13383-36E00-000

Needle,jet,r146

Needle, jet (r1467ls) Needle, jet (r1467ls); Opt,model y

13383-43D60-000

Needle,r1467ms

Needle, jet (r1467ms) Needle, jet (r1467ms); Opt,model x

13383-43D50-000

Жиклер

Opt,model x

13383-43D40-000

NEEDLE(R1468MS)

Needle, jet (r1468ms) Needle, jet (r1468ms); Opt,model x

13383-43D30-000

Needle,r1468ns

Needle, jet (r1468ns) Needle, jet (r1468ns); Opt,model x

13383-37E10-000

Жиклер

Needle, jet (r1466ns) Needle, jet (r1466ns); Opt,model x

13383-37E00-000

Жиклер

Needle, jet (r1466ms) Needle, jet (r1466ms); Opt,model x

13383-28E50-000

Жиклер

Needle, jet (r1471ns) Needle, jet (r1471ns); Opt,model x

13383-28E40-000

Отсутствующе

Needle, jet (r1471ms) Needle, jet (r1471ms); Opt,model x

13383-28E30-000

Отсутствующе

Needle, jet (r1470ns) Needle, jet (r1470ns); Opt,model x

13383-28E20-000

Отсутствующе

Needle, jet (r1470ms) Needle, jet (r1470ms); Opt,model x

13383-28E10-000

Отсутствующе

Needle, jet (r1469ns) Needle, jet (r1469ns); Opt,model x

13383-28E00-000

Отсутствующе

Needle, jet (r1469ms) Needle, jet (r1469ms); Opt,model x

09491-40013-000

Жиклер главный

Jet, main (200) Jet, main (200); Opt

09491-39001-000

JET,MAIN(195)

Jet, main (195); Opt

09491-38011-000

Жиклер главный (190)

Jet, main (190); Opt

09491-37008-000

Жиклер главный (185)

Jet, main (185); Opt

09491-36008-000

Жиклер главный (180)

Jet, main (180); Opt

09491-35010-000

JET,MAIN(178)

Jet, main (178); Opt

09491-35009-000

Жиклер главный (175)

Jet, main (175); Opt

09491-34011-000

JET,MAIN(172)

Jet, main (172); Opt

09491-34010-000

Жиклер главный 170

Jet, main (170); Opt

09491-33010-000

JET,MAIN(168)

Jet, main (168); Opt

09491-33009-000

Жиклер главный (165)

Jet, main (165); Opt

09491-32011-000

JET,MAIN(162)

Jet, main (162); Opt

09491-32010-000

Жиклер главный (160)

Jet, main (160); Opt

09491-31013-000

JET,MAIN(158)

Jet, main (158); Opt

09491-31012-000

Жиклер главный (155)

Jet, main (155); Opt

09491-30019-000

JET,MAIN(152)

Jet, main (152); Opt

09491-30018-000

Жиклер главный (150)

Jet, main (150); Opt

09491-29015-000

JET,MAIN(148)

Jet, main (148); Opt

09491-29014-000

JET,MAIN(145)

Jet, main (145); Opt

09492-70009-000

JET,SLOW(70)

Jet, pilot (70) Jet, pilot (70); Opt

09492-65008-000

JET,SLOW(65)

Jet, pilot (65) Jet, pilot (65); Opt

09492-60016-000

JET,SLOW(60)

Jet, pilot (60); Opt

09492-58001-000

Жиклерпроводник

Jet, slow (58) Jet, pilot (58); Opt

09492-55017-000

JET,SLOW(55)

Jet, pilot (55); Opt

09492-52011-000

Жиклер

Jet, slow (52) Jet, pilot (52); Opt

09492-50023-000

JET,SLOW(50)

Jet, pilot (50); Opt

09492-45032-000

JET,PILOT(45)

Jet, pilot (45); Opt

09492-40022-000

Жиклер (40)

Jet, slow (40) Jet, pilot (40); Opt

09492-35019-000

Жиклер пропускной (35)

Jet, slow (35) Jet, pilot (35); Opt

09492-60018-000

JET,POWER(60)

Jet, power (60) Jet, power (60); Opt

09492-55019-000

JET,POWER(55)

Jet, power (55) Jet, power (55); Opt

09492-50025-000

JET,POWER(50)

Jet, power (50) Jet, power (50); Opt
