Клапан выхлопа для мотоциклов Suzuki RM125 (2000)

Москва и регионы России

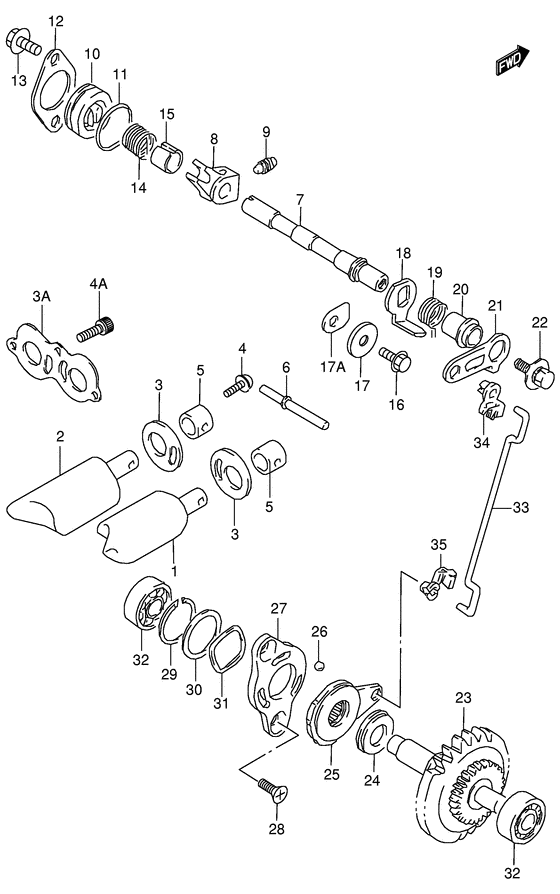

Клапан выхлопа

Suzuki RM125

Клапан выхлопа

Клапан выхлопа

1

1

2

2

3

3

3

4

4

5

5

6

7

7

8

9

10

11

12

13

14

14

15

16

17

17

18

19

19

20

21

22

23

23

23

24

25

26

27

28

29

30

31

32

32

33

33

33

34

34

35

#

oem код

название

цена

1

11254-36E20-000

VALVE,EXHAUST,R

VALVE,EXHAUST,R

Valve, exhaust rh Model x

1

11254-36E10-000

VALVE,EXHAUST,R

VALVE,EXHAUST,R

Valve, exhaust rh

замена

11254-36E00-000

Valve, exhaust rh

Valve, exhaust rh

Model t/v

2

11255-36E20-000

VALVE,EXHAUST,L

VALVE,EXHAUST,L

Valve, exhaust lh Model x

2

11255-36E10-000

VALVE,EXHAUST,L

VALVE,EXHAUST,L

Valve, exhaust lh

замена

11255-36E00-000

Valve, exhaust lh

Valve, exhaust lh

Model t/v

3A

11261-36E10-000

PLATE,EXHAUST VALVE

PLATE,EXHAUST VALVE

Plate, exhaust valve Model v/w/x

3

11261-36E00-000

PLATE,EXHAUST VALVE

PLATE,EXHAUST VALVE

Plate, exhaust valve Model t

4A

07130-0512B-000

Болт

Болт

Bolt, pulser/clamp

замена

07130-05123-000

Болт

Болт

Bolt, pulser/clamp Model v/w/x

4

02112-1512A-000

Болт

Болт

замена

02112-15123-000

Болт

Болт

Model t

5

11263-08D11-000

SPACER,EXHAUST VALVE

SPACER,EXHAUST VALVE

Spacer, exhaust valve

6

11253-19D80-000

PIN,EXHAUST VALVE

PIN,EXHAUST VALVE

7

11259-36E00-000

Shaft,exh valve

Shaft,exh valve

Shaft, exhaust valve Model v/w/x

7

11259-27C30-000

Shaft,exhaust v

Shaft,exhaust v

Shaft, exhaust valve Model t

8

11264-00B24-000

ARM,EXHAUST VALVE SHAFT

ARM,EXHAUST VALVE SHAFT

Arm, exhaust valve shaft

замена

11264-00B23-000

Arm, exhaust valve shaft

Arm, exhaust valve shaft

Model t/v/w

9

09134-06013-000

SCREW(6X10)

SCREW(6X10)

10

11258-27C01-000

CAP,EXHAUST VALVE

CAP,EXHAUST VALVE

Cap, exhaust valve

11

09280-23002-000

O RING(D:1.9,ID:22.6)

O RING(D:1.9,ID:22.6)

O ring (d:1.9,id:22.6);

12

11265-00B22-000

RETAINER,EXHAUST VALVE

RETAINER,EXHAUST VALVE

Retainer, exhaust valve

замена

11265-00B21-000

Retainer, exhaust valve

Retainer, exhaust valve

13

02162-0512A-000

Болт

Болт

замена

02162-05123-000

Болт

Болт

14

11257-36E00-000

SPRING,EXHAUST VALVE

SPRING,EXHAUST VALVE

Model v/w/x

14

09444-16008-000

Пружина

Пружина

Model t

15

11269-00B20-000

SPACER,EXHAUST VALVE SPRING

SPACER,EXHAUST VALVE SPRING

Model t/v

16

01547-0610B-000

Болт

Болт

Bolt, cover

замена

01547-06103-000

Болт

Болт

17A

24741-21A00-000

Седло

Седло

Retainer; Model v/w/x

17

08212-06201-000

Шайба

Шайба

Washer, shifting rod guide Washer; Model t

18

11267-00B21-000

LEVER,EXHAUST VALVE NO.2

LEVER,EXHAUST VALVE NO.2

Lever, exhaust valve no.2 Lever, exhaust valve no.2;

19

09444-16010-000

Пружина

Пружина

Model v/w/x

19

09444-15010-000

Пружина

Пружина

Model t

20

11268-01B01-000

Кольцо/шайба

Кольцо/шайба

замена

11268-01B00-000

Spacer,exhaust

Spacer,exhaust

Spacer, exhaust valve Spacer;

21

11266-00B21-000

LEVER,EXHAUST VALVE NO.1

LEVER,EXHAUST VALVE NO.1

Lever, exhaust valve no.1

22

09118-05003-000

Болт 5X12

Болт 5X12

Bolt (5x12);

23

12670-36E11-000

GOVERNOR ASSY,EXHAUST VALVE

GOVERNOR ASSY,EXHAUST VALVE

Governor assy, exhaust valve Model w/x

23

12670-36E00-000

Governer assy,

Governer assy,

Governor assy, exhaust valve Model v

23

12670-27C10-000

Governor assy,e

Governor assy,e

Governor assy, exhaust valve Model t

24

09263-10002-000

BEARING(10X22X2.8)

BEARING(10X22X2.8)

Bearing, release thrust

25

12680-01820-000

ACTUATOR,EXHAUST VALVE

ACTUATOR,EXHAUST VALVE

Actuator, exhaust valve

26

06111-06003-000

Шарик стальной

Шарик стальной

27

12682-01B02-000

STARTER,EXHAUST VALVE ACTUATOR

STARTER,EXHAUST VALVE ACTUATOR

Stator, actuator

28

09120-05003-000

SCREW(5X10)

SCREW(5X10)

Screw (5x10);

29

09380-19003-000

Пружинное стопорное кольцо

Пружинное стопорное кольцо

30

09181-19004-000

SHIM(19.1X25X0.3)

SHIM(19.1X25X0.3)

Shim (19.1x25x0.3);

31

09164-19001-000

Шайба

Шайба

Lock washer

32

09262-08005-000

BEARING(8X22X7)

BEARING(8X22X7)

Bearing Bearing (8x22x7);

33

12685-36E11-000

ROD,EXHAUST VALVE

ROD,EXHAUST VALVE

замена

12685-36E10-000

Rod,exhaust val

Rod,exhaust val

Rod, exhaust valve Model w/x

33

12685-36E00-000

ROD,EXHAUST VALVE

ROD,EXHAUST VALVE

Rod, exhaust valve Model v

33

12685-27C00-000

ROD,EXHAUST VALVE

ROD,EXHAUST VALVE

Rod, exhaust valve Model t

34

12686-36E00-000

BUSH,EXHAUST VALVE ROD NO.1

BUSH,EXHAUST VALVE ROD NO.1

Bush, exhaust valve rod no.1 Bush, exhaust valve rod no.1; Model v/w/x

34

12686-01B00-000

BUSH,EXHAUST VALVE ROD NO.1

BUSH,EXHAUST VALVE ROD NO.1

Bush, no.1 Bush, exhaust valve rod no.1; Model t

35

12687-01B00-000

BUSH,EXHAUST VALVE ROD NO.2

BUSH,EXHAUST VALVE ROD NO.2

Bush, no.2
