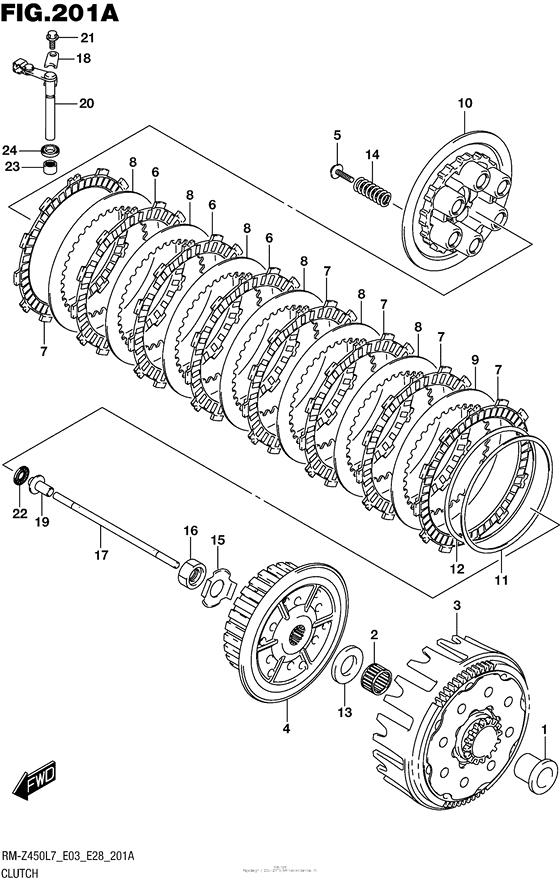

Сцепление

Suzuki RM-Z450

Suzuki
Сцепление
#oem кодцена
1
21251-28H00-000
SPACER,PRIMARY DRIVEN GEAR
2
09263-28042-000
BEARING(28X32X26)
3
21200-28H10-000
GEAR ASSY,PRIMARY DRIVEN
4
21411-35G30-000
HUB,CLUTCH SLEEVE
5
21412-35G00-000
BOLT,CLUTCH SPRING(6X25)
6
21441-35G00-000
PLATE,CLUTCH DRIVEN NO.1
7
21441-37F30-000
PLATE,CLUTCH DRIVE NO.2
8
21451-35G00-000
PLATE,CLUTCH DRIVEN
9
21452-35G00-000
PLATE,CLUTCH DRIVEN
10
21462-28H00-000
DISC,CLUTCH PRESSURE
11
21471-28H00-000
SEAT,WAVE WASHER
12
21472-35G00-000
WASHER,CLUTCH PLATE WAVE
13
09160-22082-000
WASHER(22.5X39X3)
14
09440-18044-000
Пружина
15
21416-35G10-000
Шайба блокирующая
16
09140-18017-000
Гайка
17
23110-28H00-000
ROD,CLUTCH PUSH
18
23117-28H00-000
RETAINER,CL RELEASE CAMSHAFT
19
23121-37F00-000
PIECE,CLUTCH PUSH
20
23200-28H00-000
CAMSHAFT,CLUTCH RELEASE
21
09103-06280-000
BOLT(6X12)
22
09263-10002-000
BEARING(10X22X2.8)
23
09263-10014-000
BEARING(10X14X10)
24
09285-10004-000
SEAL,OIL(10X17X5)
