Обтекатель задний для мотоциклов Suzuki RM-Z450 (2007)

Москва и регионы России

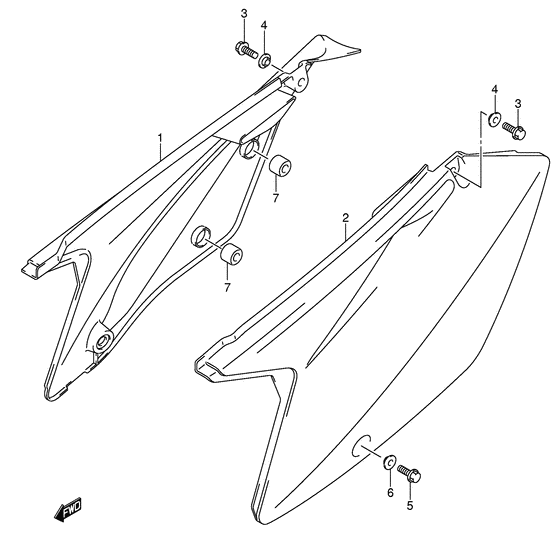

Обтекатель задний

Suzuki RM-Z450

Обтекатель задний

Обтекатель задний

1

1

2

2

3

3

4

4

5

6

7

7

#

oem код

название

цена

1

47111-35G10-30H

COVER,FRAME,R(WHITE)

COVER,FRAME,R(WHITE)

Cover, frame rh (white); Model k7

1

47111-35G00-30H

Cover, frame rh (white)

Cover, frame rh (white)

Cover, frame rh (white); Model k5/k6

2

47211-35G10-30H

COVER,FRAME,L(WHITE)

COVER,FRAME,L(WHITE)

Cover, frame lh (white); Model k7

2

47211-35G00-30H

COVER,FRAME,L(WHITE)

COVER,FRAME,L(WHITE)

Cover, frame lh (white); Model k5/k6

3

09103-06234-000

Болт цепи

Болт цепи

Bolt, chain guide Bolt, seat;

4

69232-37F01-000

Шайба

Шайба

Washer, air cleaner

замена

69232-37F00-000

Washer, radiator cover

Washer, radiator cover

Washer, air cleaner Washer, seat;

5

09103-06234-000

Болт цепи

Болт цепи

Bolt, chain guide Bolt, front;

6

69232-37F01-000

Шайба

Шайба

Washer, air cleaner

замена

69232-37F00-000

Washer, radiator cover

Washer, radiator cover

Washer, air cleaner Washer, front;

7

47161-37F00-000

CUSHION,FRAME COVER,R

CUSHION,FRAME COVER,R
