Frame comp для мотоциклов Suzuki RM-Z450 (2012)

Москва и регионы России

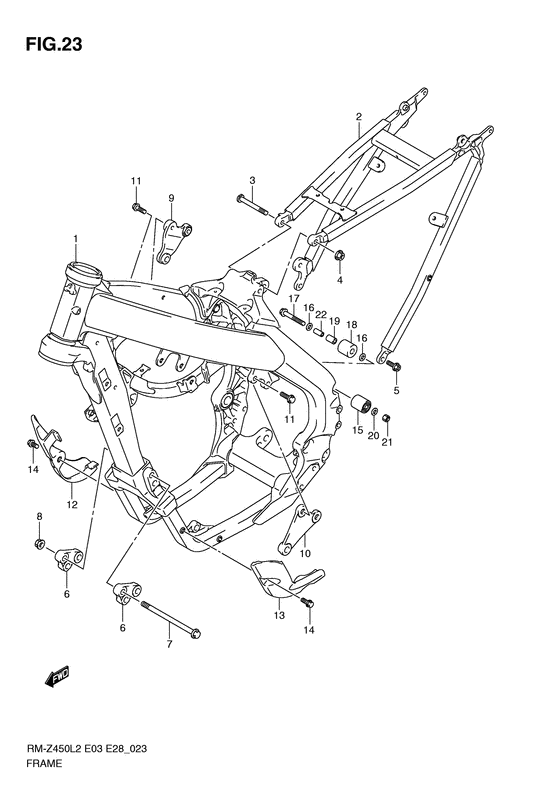

Frame comp

Suzuki RM-Z450

Frame comp

Frame comp

1

2

3

4

5

6

6

7

8

9

10

11

11

12

13

14

14

15

16

16

17

18

19

20

21

22

#

oem код

название

цена

1

41100-28H20-000

Рама

Рама

2

41200-28H40-000

RAIL,SEAT

RAIL,SEAT

замена

41200-28H30-000

Rail comp,seat

Rail comp,seat

3

41311-28H20-000

BOLT,SEAT RAIL UPR

BOLT,SEAT RAIL UPR

4

09159-08146-000

Гайка

Гайка

5

09103-08506-000

Болт 8X23

Болт 8X23

Bolt (8x23);

6

41991-28H10-000

BRACKET,ENGINE MOUNTING FR

BRACKET,ENGINE MOUNTING FR

7

09103-10403-000

BOLT(10X135)

BOLT(10X135)

Bolt (10x135);

8

09159-10122-000

Гайка

Гайка

9

41930-28H30-000

BRACKET,ENGINE MOUNTING UPR,R

BRACKET,ENGINE MOUNTING UPR,R

замена

41993-28H00-000

Bracket, engine mount upper rh

Bracket, engine mount upper rh

10

41940-28H30-000

BRACKET,ENGINE MOUNTING UPR,L

BRACKET,ENGINE MOUNTING UPR,L

замена

41994-28H00-000

Bracket, engine mount upper lh

Bracket, engine mount upper lh

11

09103-08404-000

BOLT(8X21)

BOLT(8X21)

Bolt, upper Bolt (8x21);

12

42520-28H01-000

PROTECTOR,FR,R

PROTECTOR,FR,R

13

42530-28H10-000

PROTECTOR,FR,L

PROTECTOR,FR,L

14

09116-06177-000

BOLT(6X25)

BOLT(6X25)

Bolt (6x25);

15

43910-35G00-000

ROLLER,CHAIN

ROLLER,CHAIN

Roller, chain lower Roller, chain lower;

16

09160-08081-000

Шайба

Шайба

Washer, clutch lever Washer (8.5x23x1.5);

17

09103-08207-000

BOLT(8X45)

BOLT(8X45)

Bolt, upper Bolt (8x45);

18

43911-28H00-000

ROLLER,CHAIN

ROLLER,CHAIN

Roller, chain upper;

19

43912-28H00-000

COLLAR,CHAIN ROLLER

COLLAR,CHAIN ROLLER

20

09181-08111-000

Шайба

Шайба

Shim (8x12x1);

21

08319-2108A-000

Гайка

Гайка

Nut, lower

22

09180-08214-000

Кольцо/шайба

Кольцо/шайба

Spacer (8.6x12.2x25.5);
