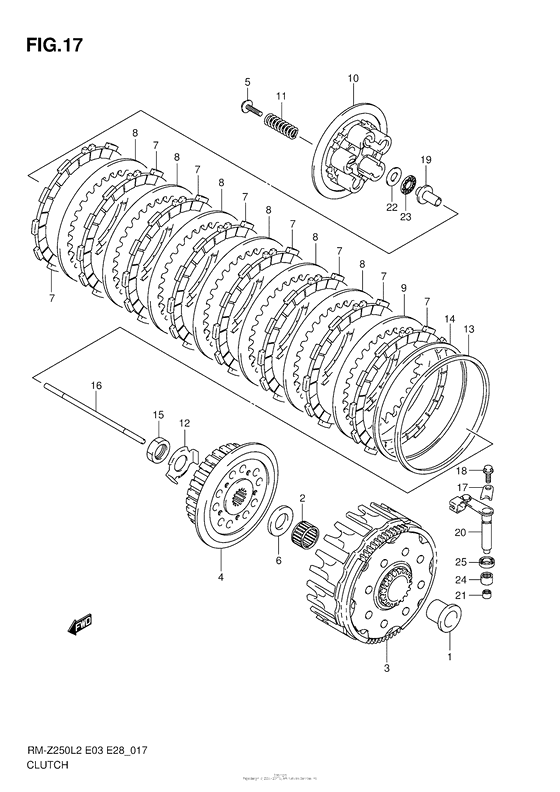

Сцепление

Suzuki RM-Z250

Suzuki
Сцепление
#oem кодцена
1
21251-10H00-000
SPACER,PRIMARY DRIVEN GEAR
2
09263-27004-000
BEARING(27X32X21.8)
3
21200-49H10-000
GEAR ASSY,PRIMARY DRIVEN
4
21411-10H10-000
HUB,CLUTCH SLEEVE
5
21412-45G00-000
BOLT,CLUTCH SPRING
6
09160-22083-000
WASHER(22X45X3)
7
21441-40F10-000
PLATE,CLUTCH DRIVE NO.2
8
21451-10H00-000
PLATE,CLUTCH DRIVEN
9
21452-10H00-000
PLATE,CLUTCH DRIVEN
10
21462-10H00-000
DISC,CLUTCH PRESSURE
11
21413-49H00-000
Пружина муфты
12
21416-10H00-000
WASHER,CLUTCH SLEEVE HUB LOCK
13
21471-40F00-000
SEAT,CLUTCH PLATE WAVE WASHER
14
21472-10H00-000
WASHER,CLUTCH PLATE
15
09140-18020-000
Гайка
16
23110-37F00-000
Штанга муфты
17
23117-10H00-000
RETAINER,CL RELEASE CAMSHAFT
18
09103-06233-000
BOLT(6X12)
19
23121-49H10-000
PIECE,CLUTCH PUSH
20
23200-49H00-000
CAMSHAFT,CLUTCH RELEASE
21
23129-35G00-000
BEARING,CLUTCH RELEASE(7X11X9)
22
09181-12016-000
SHIM(12X26X0.8)
23
09263-12019-000
BEARING(12X26X2)
24
09263-10014-000
BEARING(10X14X10)
25
09285-10004-000
SEAL,OIL(10X17X5)
