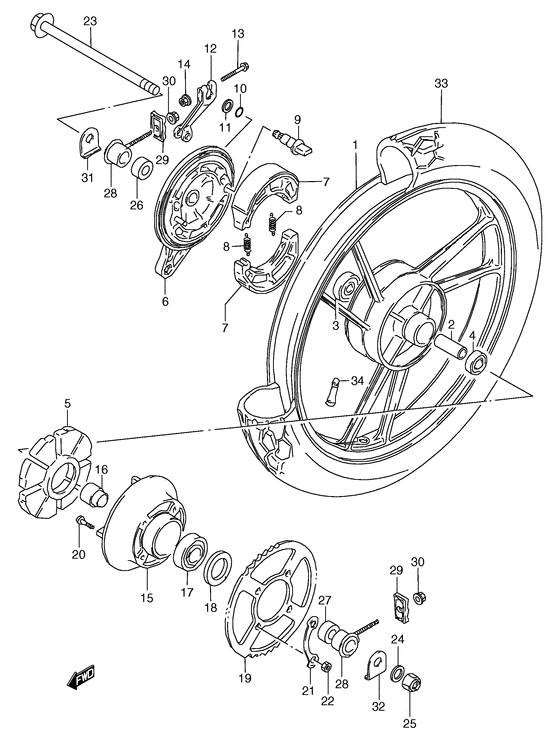

Rear wheel complete assy для мотоциклов Suzuki RG80 (1991)

oem код

название

цена

64150-36A01-12Z

Wheel, rear (mt1.85x18) silver

Wheel, rear, mt1.85*18 (silver) Wheel, rear (mt1.85x18) silver; Model m,for 3hz,ag3,1zx

64150-36A01-28W

Wheel, rear (mt1.85x18) white

Wheel, rear (mt1.85x18) white; Model h/j, model m,for 3ua

64150-36A01-291

Wheel, rear (mt1.85x18) black

Wheel, rear, mt1.85*18 (black) Wheel, rear (mt1.85x18) black; Model f

09180-15011-000

SPACER(15.3X21.7X63)

Spacer (15.3x21.7x63) Spacer (15.3x21.7x63);

08144-63027-000

Подшипник

Bearing, rh

08143-62027-000

Подшипник

Bearing, lh Bearing, lh;

64651-38300-000

ABSORBER,RR HUB SHOCK

Shock absorber, wheel Shock absorber, hub;

64210-39104-000

PANEL,RR BRAKE ANCHOR

замена

64210-39103-000

Panel, rear brake anchor

54410-07003-000

Shoe,brake

Model f/h/j e22, model m e22, ~f.no.108007,

54400-37830-000

SHOE SET,BRAKE

замена

54410-37410-000

Shoe, brake

Model j/m e4,

54410-37400-000

Shoe, brake

Model f/h e4,

09443-07001-000

SPRING(L:34)

54441-29305-000

CAM,BRAKE

Shaft, brake cam

замена

54441-29304-000

Cam, rear brake

09280-14011-000

O RING(D:2.5,ID:13.8)

O ring (d:2.5 id:13.8)

замена

09280-14003-000

Кольцо

09160-14055-000

Шайба

замена

09160-14001-000

Шайба

64451-38210-000

CAM,LEVER

01550-06357-000

Болт

Bolt, throttle lever no.2

замена

01517-06358-000

6 x 35 bolt

08319-31067-000

Гайка

Nut, center

замена

09159-06017-000

Регулятор гаечный

Nut;

64611-07000-000

DRUM,RR SPROCKET

Drum, sprocket mounting

64733-39100-000

RETAINER,RR SPROCKET MTG

Retainer, mounting

09262-20069-000

Подшипник

Bearing;

09285-28001-000

SEAL,OIL(28X47X7)

Seal, rear wheel bearing rh Oil seal;

64511-36700-000

Sprocket, rear (nt:49)

Sprocket, rear (nt:49); E22

64511-36011-000

SPROCKET,RR(NT:48)

замена

64511-36010-000

Sprocket, rear (nt:48)

Sprocket, rear (nt:48); E4

64541-03500-000

BOLT,RR SPROCKET

E22

09119-08078-000

Болт

замена

09119-08052-000

Болт

09169-08012-000

Шайба

Washer Washer;

08310-00087-000

Гайка 8MM

замена

08310-12088-000

Гайка

64711-36A02-000

Axle,rear

замена

64711-36A01-000

Ось задняя

08322-01147-000

Шайба

замена

Шайба

Гайка

SPACER,RR AXLE,R

SPACER,RR AXLE,L

ADJUSTER,CHAIN

Плата

Plate, guide;

08319-31087-000

Гайка

замена

08319-31086-000

Гайка

64712-36A10-000

WASHER,CHAIN ADJUSTER,R

Washer, rh

64712-36A00-000

WASHER,CHAIN ADJUSTER,R

65100-36A00-000

Tire, rear (90/90-18 51p)

Tire, t/l rear (90/90-18 51p) Tire, rear (90/90-18 51p) (dunlop);

43130-24A00-000

VALVE ASSY,WHEEL RIM(TR412)

Valve assy, wheel rim (tr412)

замена

43130-24A11-000

Valve assy, wheel rim (tr412)

Model m, f.no.106387~

43130-78030-000

VALVE,TIRE TR413 BS

Valve assy, wheel rim

замена

43130-75150-000

Клапан

Model f/h/j, model m, ~f.no.106386
