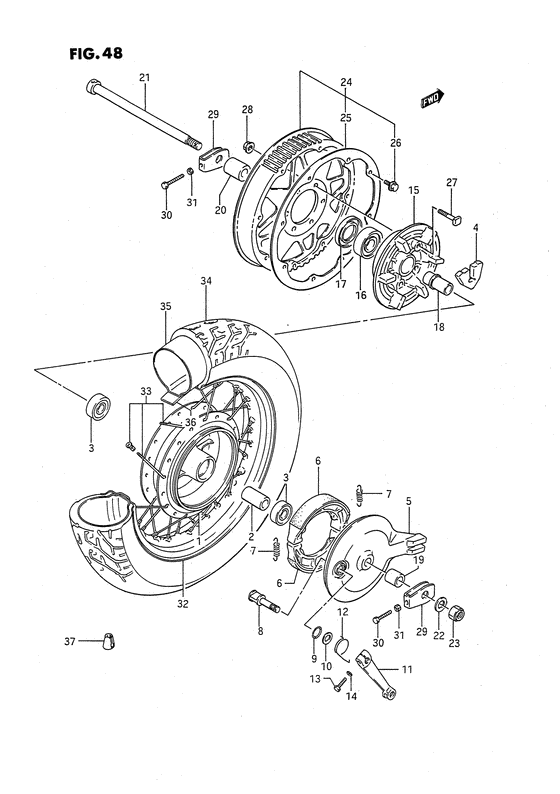

Rear wheel complete assy для мотоциклов Suzuki LS650 (1986)

Москва и регионы России

Rear wheel complete assy

Suzuki LS650

Rear wheel complete assy

Rear wheel complete assy

#

oem код

название

цена

1

64110-24B00-000

HUB,RR WHEEL

HUB,RR WHEEL

2

09180-17069-000

SPACER(17.5X25X70)

SPACER(17.5X25X70)

3

08143-63037-000

Подшипник

Подшипник

Bearing, rear hub lh Bearing;

4

64651-31001-000

ABSORBER,RR HUB SHOCK

ABSORBER,RR HUB SHOCK

Absorber,rear hub shock Shock absorber, hub;

5

64210-24B01-000

PANEL,RR BRAKE ANCHOR

PANEL,RR BRAKE ANCHOR

замена

64210-24B00-000

Panel, rear brake

Panel, rear brake

6

64400-44810-000

SHOE SET,BRAKE

SHOE SET,BRAKE

замена

64410-44B00-000

Shoe, brake

Shoe, brake

Model j/k/m e1,e4,e15,e16,, e17,e18,e21,e22,e25,e34,, e39,e77, model r,

6

64400-11860-000

SHOE SET,BRAKE

SHOE SET,BRAKE

замена

64410-11301-000

Shoe, brake

Shoe, brake

Model g, model j e75, model j/k/l/m/ e2,e24,

7

55420-30000-000

SPRING,BRAKE SHOE

SPRING,BRAKE SHOE

Spring, shoe Spring;

8

54440-08004-000

CAM,BRAKE

CAM,BRAKE

Cam, rear brake

9

09280-15003-000

O RING(D:2.4,ID:14.8)

O RING(D:2.4,ID:14.8)

O ring (id:14.8,dd:2.4)

замена

09280-15001-000

Cam shaft dust seal

Cam shaft dust seal

10

09160-15048-000

Шайба

Шайба

замена

09160-15001-000

Dust seal washe

Dust seal washe

Dust seal washer Washer;

11

64451-24B00-000

LEVER,RR BRAKE CAM

LEVER,RR BRAKE CAM

Lever, brake cam

12

09448-33006-000

Пружина кулачка

Пружина кулачка

13

01570-0625B-000

Болт

Болт

Bolt, front

замена

01570-06253-000

Болт

Болт

Bolt, front Model r

13

01500-06257-000

Болт

Болт

замена

01107-06257-000

Болт

Болт

Model g/j/k/l/m

14

08321-01067-000

Шайба, стопорная

Шайба, стопорная

замена

08321-21067-000

Пластина замка

Пластина замка

Model g/j/k/l/m

15

64611-31003-000

DRUM,RR SPROCKET MOUNTING

DRUM,RR SPROCKET MOUNTING

Drum, sprocket;

16

09262-25073-000

BEARING(25X62X17)

BEARING(25X62X17)

Bearing (25x62x17)

17

09285-33001-000

SEAL,OIL(33X62X7)

SEAL,OIL(33X62X7)

Seal,dust

18

64733-31300-000

RETAINER,RR SPROCKET DRUM

RETAINER,RR SPROCKET DRUM

Retainer, drum;

19

09180-17082-000

SPACER(17X28X22.3)

SPACER(17X28X22.3)

Spacer, rh;

20

09180-17083-000

Прокладка

Прокладка

Spacer, lh Spacer, lh;

замена

64711-24B01-000

Ось задняя

Ось задняя

Model r

21

64711-24B02-000

AXLE,RR

AXLE,RR

замена

64711-24B00-000

Axle,rear

Axle,rear

Model g/j/k/l/m

22

09160-17050-000

Шайба

Шайба

замена

09160-17013-000

Шайба

Шайба

23

09159-16002-000

Гайка

Гайка

24

64510-24B10-000

SPROCKET,RR

SPROCKET,RR

замена

64510-24B01-000

Pulley, rear (nt:68)

Pulley, rear (nt:68)

25

64512-24B01-000

Plate,rr sprock

Plate,rr sprock

26

01550-0612A-000

Болт

Болт

26

01550-0612B-000

Болт

Болт

Bolt, clamp

замена

01550-06123-000

Болт

Болт

Model r

26

01550-06127-000

Болт

Болт

Bolt, rect

замена

01517-06128-000

Болт

Болт

Model g/j/k/l/m

27

09105-10005-000

BOLT(10X40)

BOLT(10X40)

28

08319-3110A-000

Гайка

Гайка

Nut, fr differential

замена

08319-31105-000

Гайка

Гайка

29

61410-24B01-000

ADJUSTER,BELT

ADJUSTER,BELT

замена

61410-24B00-000

Adjuster, belt

Adjuster, belt

Adjuster, belt

30

09104-08023-000

Bolt chain adju

Bolt chain adju

31

08310-00087-000

Гайка 8MM

Гайка 8MM

замена

08310-22088-000

Гайка

Гайка

Model g/j/k/l/m

32

65311-24B01-000

RIM,RR WHEEL WM(2.75X15 M/C)

RIM,RR WHEEL WM(2.75X15 M/C)

замена

65311-24B00-000

Rim, rear wheel (wm2.75x15)

Rim, rear wheel (wm2.75x15)

Model g/j

33

65320-24B00-000

SPOKE SET,RR WHEEL

SPOKE SET,RR WHEEL

замена

65100-24B01-000

Tire, rear (140/80-15m/c 67h) irc

Tire, rear (140/80-15m/c 67h) irc

Model k/l/m/r

34

65100-24B02-000

TIRE,RR(140/80-15M/C 67H)

TIRE,RR(140/80-15M/C 67H)

Tire, rear (140/80-15m/c 67h) irc

замена

65100-24B00-000

Tire, rear (140/80-15 67h) irc

Tire, rear (140/80-15 67h) irc

Model g/j

35

65200-38A70-000

TUBE ASSY,WHEEL INNER

TUBE ASSY,WHEEL INNER

Tube assy, wheel inner

замена

65200-24B00-000

Tube, inner

Tube, inner

36

65261-26F00-000

PROTECTOR,WHL INR TUBE

PROTECTOR,WHL INR TUBE

замена

65261-24B01-000

Protector, inner tube

Protector, inner tube

37

55413-41F00-000

BALANCER,WHEEL(30G)

BALANCER,WHEEL(30G)

Balancer, wheel no.2

замена

55413-38A00-000

Балансир

Балансир

Balancer, wheel no.2 Balancer (30g);

37

55412-41F00-000

BALANCER,WHEEL(20G)

BALANCER,WHEEL(20G)

Balancer, wheel no.1

замена

55412-38A00-000

Балансир

Балансир

Balancer, wheel no.1 Balancer (20g);
