Crankcase cover ass`y (v для мотоциклов Suzuki LS650 (2009)

Москва и регионы России

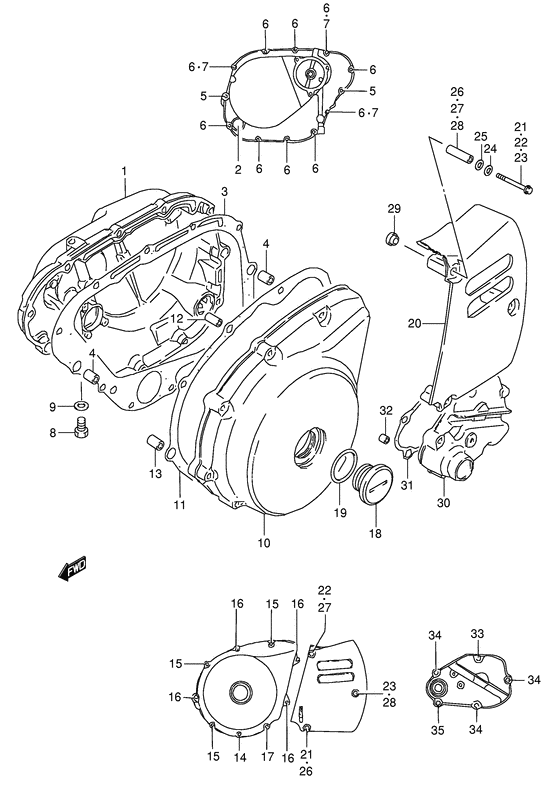

Crankcase cover ass`y (v

Suzuki LS650

Crankcase cover ass`y (v

Crankcase cover ass`y (v

1

2

3

3

4

4

5

5

6

6

6

6

6

6

6

6

6

6

7

7

7

8

9

10

11

12

13

14

15

15

15

16

16

16

16

17

18

19

20

21

21

22

22

23

23

24

25

26

26

27

27

28

28

29

30

31

31

32

33

33

34

34

34

34

34

34

35

35

#

oem код

название

цена

1

11340-24B00-000

COVER,CLUTCH

COVER,CLUTCH

Cover, clutch

2

11971-33210-000

LENS,OIL LEVEL CHECK

LENS,OIL LEVEL CHECK

Lens, oil check Lens, oil level;

3

11482-24B20-000

GASKET,CLUTCH COVER

GASKET,CLUTCH COVER

Model k7/k8/k9

3

11482-24B11-000

GASKET,CLUTCH COVER

GASKET,CLUTCH COVER

Gasket, clutch cover Model k5/k6

4

04211-11169-000

Штифт

Штифт

Pin, dowel Pin;

5

09103-06214-000

BOLT(6X35)

BOLT(6X35)

Bolt (6x35)

6

09103-06212-000

BOLT(6X25)

BOLT(6X25)

7

09168-06023-000

GASKET(5.8X13X1.2)

GASKET(5.8X13X1.2)

Gasket (5.8x13x1.2) Gasket (5.8x13x1.2);

8

09247-12104-000

Заглушка T D C

Заглушка T D C

Plug, oil gallery;

9

09168-12002-000

Прокладка

Прокладка

Gasket

10

11351-24B10-000

COVER,GENERATOR

COVER,GENERATOR

11

11483-24B01-H17

GASKET,GENERATOR COVER

GASKET,GENERATOR COVER

Gasket, generator cover

12

04211-09189-000

Штифт

Штифт

Pin;

13

04211-11189-000

Штифт

Штифт

Pin;

14

09103-06212-000

BOLT(6X25)

BOLT(6X25)

15

09103-06214-000

BOLT(6X35)

BOLT(6X35)

Bolt (6x35)

16

09103-06224-000

BOLT(6X45)

BOLT(6X45)

17

09103-06238-000

BOLT(6X50)

BOLT(6X50)

Bolt (6x20)

18

09259-36011-000

PLUG(36X10)

PLUG(36X10)

19

09280-33004-000

O RING(D:3.1,ID:32.7)

O RING(D:3.1,ID:32.7)

O ring (d:3.1,id:32.7);

20

11361-24B10-000

COVER,ENGINE SPROCKET

COVER,ENGINE SPROCKET

Cover, engine sprocket

21

09103-06224-000

BOLT(6X45)

BOLT(6X45)

22

09103-06238-000

BOLT(6X50)

BOLT(6X50)

Bolt (6x20)

23

09103-06216-000

BOLT(6X55)

BOLT(6X55)

24

09160-06125-000

Шайба

Шайба

Washer (6.5x14x1.6)

25

09161-09006-000

WASHER(8.7X15X2.1)

WASHER(8.7X15X2.1)

Cushion, outer Cushion, outer;

26

09180-06277-000

Кольцо/шайба

Кольцо/шайба

Spacer (l:31.5) Spacer (l:31.5);

27

09180-06279-000

Кольцо/шайба

Кольцо/шайба

Spacer Spacer (l:38.3);

28

09180-06280-000

Кольцо/шайба

Кольцо/шайба

Spacer (l:41.3) Spacer (l:41.3);

29

09161-09005-000

WASHER(8.7X16X5)

WASHER(8.7X16X5)

Cushion, inner Cushion, inner;

30

11371-24B01-000

COVER,GEAR SHIFT

COVER,GEAR SHIFT

Cover, gear shift

31

11485-24B20-000

GASKET,GEAR SHIFT COVER

GASKET,GEAR SHIFT COVER

Model k7/k8/k9

31

11485-24B10-000

GASKET,GEAR SHIFT COVER

GASKET,GEAR SHIFT COVER

Gasket, gear shift cover Model k5/k6

32

04211-09109-000

Штифт

Штифт

Knock pin Pin;

33

01547-0616A-000

Болт

Болт

Bolt; Model k7/k8/k9

33

01547-0616B-000

Болт

Болт

замена

01547-06163-000

Bolt (green)

Bolt (green)

Model k5/k6

34

01547-0630A-000

Болт

Болт

Model k7/k8/k9

34

01547-0630B-000

Болт

Болт

Bolt

замена

01547-06303-000

Болт

Болт

Model k5/k6

35

01547-0635A-000

Болт

Болт

Bolt; Model k7/k8/k9

35

01547-0635B-000

Болт

Болт

замена

01547-06353-000

Болт (6x35)

Болт (6x35)

Model k5/k6
