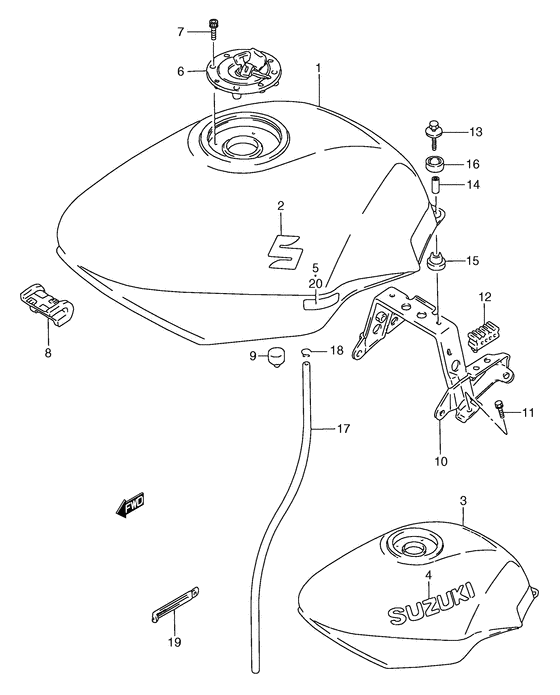

Tank fuel для мотоциклов Suzuki GSX750 Katana (1996)

Москва и регионы России

Tank fuel

Suzuki GSX750 Katana

Tank fuel

Tank fuel

1

1

1

2

2

3

3

3

4

4

4

4

5

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

#

oem код

название

цена

замена

44100-21CB0-36X

Tank assy,fuel (black)

Tank assy,fuel (black)

Tank assy, fuel (black); Model p e22

замена

44100-21CB0-1LE

Tank assy,fuel (blue)

Tank assy,fuel (blue)

Tank assy, fuel (blue); Model p e22

1

44100-21CB1-36X

TANK ASSY,FUEL(BLACK)

TANK ASSY,FUEL(BLACK)

замена

44100-43C50-36X

Tank assy,fuel (black)

Tank assy,fuel (black)

Tank assy, fuel (black); Model p

1

44423-08F00-000

HOSE,FUEL TANK WATER DRAIN

HOSE,FUEL TANK WATER DRAIN

Hose, water drain

1

44110-19C22-YD8

TANK ASSY,FUEL(SILVER)

TANK ASSY,FUEL(SILVER)

замена

44100-43C50-1LE

Tank assy,fuel (blue)

Tank assy,fuel (blue)

Tank assy, fuel (blue); Model p

2

68111-19C10-1AP

Emblem,fuel tan

Emblem,fuel tan

Emblem (purple) Emblem (purple); Model p for 36x

2

68111-19C10-14B

Emblem (gold)

Emblem (gold)

Emblem (gold); Model p for 1le

замена

44100-21CF0-2JX

Tank assy,fuel

Tank assy,fuel

Tank assy, fuel (black) Tank assy, fuel (black); Model s

3

44100-21CF1-1SX

TANK ASSY,FUEL(RED)

TANK ASSY,FUEL(RED)

замена

44100-21CF0-1SX

Топливный бак(red)

Топливный бак(red)

Model s

замена

44100-21CF0-33J

Топливный бак (black)

Топливный бак (black)

Model r e22

замена

44100-21CF0-19A

Топливный бак(red)

Топливный бак(red)

Model r e22

3

44100-21CF1-33J

TANK ASSY,FUEL(BLACK)

TANK ASSY,FUEL(BLACK)

замена

44100-21CE0-33J

Топливный бак (black)

Топливный бак (black)

Model r

3

44423-08F00-000

HOSE,FUEL TANK WATER DRAIN

HOSE,FUEL TANK WATER DRAIN

Hose, water drain

замена

44100-21CE0-19A

Tank assy,fuel (red)

Tank assy,fuel (red)

Tank assy, fuel (red); Model r

4

68111-01D20-D4M

Эмблема

Эмблема

Model s for 36x

4

68111-01D20-D4N

Эмблема

Эмблема

Model s for 1sx

4

68111-01D20-C2T

EMBLEM,FUEL TANK

EMBLEM,FUEL TANK

Model r for 33j

4

68111-01D20-C7Y

Эмблема

Эмблема

Model r for 19a

5

44293-19C00-000

Протектор

Протектор

Protector, fuel tank lh

5

44283-19C00-000

Protector,rh fu

Protector,rh fu

Protector, fuel tank rh

6

44201-01832-000

CAP SET,FUEL TANK

CAP SET,FUEL TANK

Cap set, fuel tank

замена

44201-01831-000

Cap set, fuel tank

Cap set, fuel tank

Model p/r

7

09106-05017-000

BOLT(5X20)

BOLT(5X20)

8

44511-19C00-000

CUSHION,FUEL TANK FR

CUSHION,FUEL TANK FR

Cushion, fuel tank front

9

09321-10011-000

Подушка

Подушка

Cushion, fuel tank side;

10

44550-19C00-000

Кронштейн топливного бака

Кронштейн топливного бака

Bracket, rear

11

01570-0620A-000

Болт

Болт

замена

09137-06017-000

Bolt,rr bracket

Bolt,rr bracket

Bolt, rear bracket;

12

45149-31300-000

CUSHION,SEAT(40X20X15)

CUSHION,SEAT(40X20X15)

Cushion, fuel tank side rear;

13

09116-06172-000

Болт

Болт

Bolt (6x30) Bolt, rear;

14

09180-06271-000

Кольцо/шайба

Кольцо/шайба

Spacer (6.5x9x18)

замена

09180-06072-000

Spacer (6.4x9x18)

Spacer (6.4x9x18)

15

09320-10038-000

Подушка

Подушка

Cushion, lower Cushion, rear lower;

16

09320-14017-000

Подушка

Подушка

Cushion, rear upper Cushion, rear upper;

17

44423-19C00-000

HOSE,FUEL TANK WATER DRAIN

HOSE,FUEL TANK WATER DRAIN

Hose, water drain

18

09401-08401-000

Струбцина масляного шланга

Струбцина масляного шланга

Clip, fuel hose Clip;

19

09404-08420-000

Струбцина L:137

Струбцина L:137

20

32851-10D00-000

PROTECTOR(12X40)

PROTECTOR(12X40)

Protector, rh Protector, fuel tank; Model r/s
