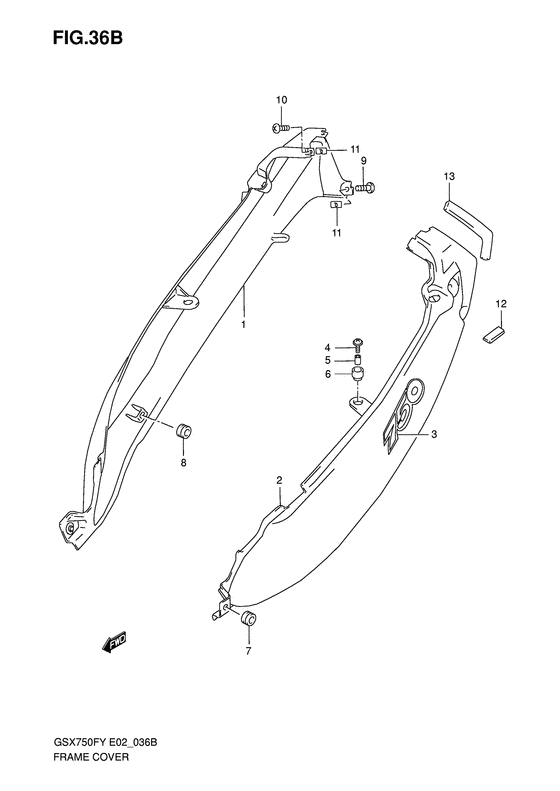

Обтекатель задний для мотоциклов Suzuki GSX750 Katana (2003)

oem код

название

цена

47110-08F50-YC7

COVER,FRAME,R(GOLD)

Cover, frame rh (gold); Model k1 for yc7

47110-08F50-YGX

COVER,FRAME,R(GRAY)

Cover, frame rh (gray); Model k1 for y9e

замена

47110-08F50-YFX

Cover,frame(black)

Cover, frame rh (black); Model k1 for y7l

47111-08F00-000

COVER,FRAME,R

замена

47110-08F50-Y9E

Cover comp,fram

Cover, frame rh (gray) Cover, frame rh (gray); Model y

47110-08F50-Y7L

COVER,FRAME,R(BLACK)

Cover, frame rh (black); Model y

47110-08F50-22U

COVER,FRAME,R(MAROON)

Cover, frame rh (maroon) Cover, frame rh (maroon); Model y

замена

47210-08F50-YC7

Cover comp,frame,l

Cover, frame lh (gold); Model k1 for yc7

47210-08F50-YGX

COVER,FRAME,L(GRAY)

Cover, frame lh (gray); Model k1 for y9e

замена

47210-08F50-YFX

Cover,frame,l(black)

Cover, frame lh (black); Model k1 for y7l

47211-08F00-000

COVER,FRAME,L

замена

47210-08F50-Y9E

Cover comp,fram

Cover, frame lh (gray) Cover, frame lh (gray); Model y

47210-08F50-Y7L

COVER,FRAME,L(BLACK)

Cover, frame lh (black); Model y

47210-08F50-22U

COVER,FRAME,L(MAROON)

Cover, frame lh (maroon) Cover, frame lh (maroon); Model y

68131-08F50-EG3

EMBLEM,FRAME COVER

Model k1 for yc7

68131-08F50-EG2

Emblem,frame cover

Model k1 for ygx

68131-08F50-EG1

EMBLEM,FRAME COVER

Model k1 ror yfx

68131-08F50-BD3

Emblem,frame co

Model y for y9e

68131-08F50-BC7

Эмблема

Model y for y7l

68131-08F50-BD2

Emblem,frame co

Model y for 22u

09136-06105-000

Болт

Screw (6x20) Screw, upper;

09180-06286-000

Кольцо/шайба

09320-10045-000

Подушка

Cushion (10x28x19)

09320-08028-000

Подушка

Grommet Cushion, front;

09320-08018-000

Валик

Cushion, lh Cushion, center;

03241-1516A-000

Винт

Screw, cover rear

замена

03241-15163-000

Винт крышки

Screw, cover Screw, lower;

03241-1512B-000

Болт

замена

03241-15123-000

Винт

Screw, rear;

09148-05038-000

Гайка

Nut, inner

44894-24A00-000

Подушка

Cushion, rear;

47161-08F00-000

CUSHION,FRAME COVER
