Обтекатель задний для мотоциклов Suzuki GSX750 Katana (2006)

Москва и регионы России

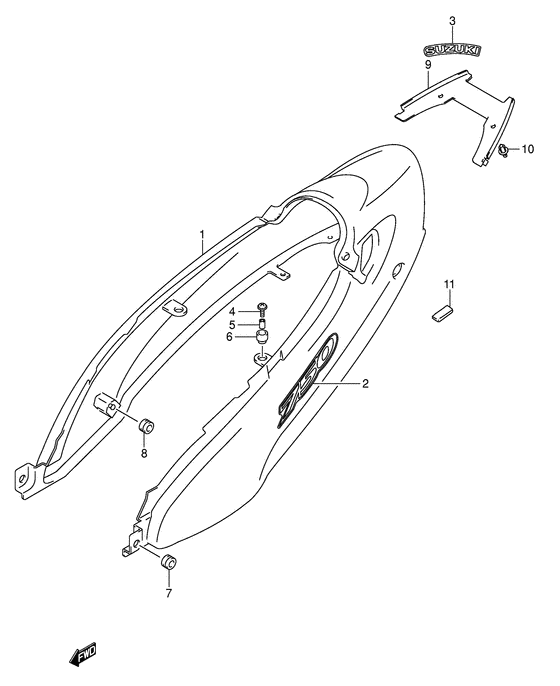

Обтекатель задний

Suzuki GSX750 Katana

Обтекатель задний

Обтекатель задний

1

1

1

1

1

2

2

2

2

2

2

3

4

5

6

7

8

9

10

11

#

oem код

название

цена

1

47110-08F80-YHL

COVER,FRAME(RED)

COVER,FRAME(RED)

Cover, frame (red); Model k6 for czu

1

47110-08F80-019

COVER,FRAME(BLACK)

COVER,FRAME(BLACK)

Cover, frame (black); Model k6 for cad

1

47110-08F80-YAR

COVER,FRAME(BLUE)

COVER,FRAME(BLUE)

Cover, frame (blue); Model k5 for aaw

замена

47110-08F80-4GX

Cover, frame (gray)

Cover, frame (gray)

Cover, frame (gray); Model k5 for la1

1

47110-08F80-YBA

COVER,FRAME(BLUE)

COVER,FRAME(BLUE)

Cover, frame (blue); Model k4

1

47111-08FA0-000

COVER,FRAME,R

COVER,FRAME,R

замена

47110-08F80-ZTX

Cover, frame (gray)

Cover, frame (gray)

Cover, frame (gray); Model k4

2

68131-08F60-DAC

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

Model k6 for yhl

2

68131-08F60-DAB

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

Model k6 for 019

2

68131-08F60-BNK

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

Model k5 for yar

2

68131-08F60-BNJ

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

Model k5 for 4gx

2

68131-08F60-AND

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

Model k4 for yba

2

68131-08F60-ANC

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

Model k4 for ztx

3

68131-39F00-YD8

Эмблема

Эмблема

Emblem (silver) Emblem, "suzuki" (silver);

4

09136-06105-000

Болт

Болт

Screw (6x20) Screw, upper;

5

09180-06286-000

Кольцо/шайба

Кольцо/шайба

6

09320-10045-000

Подушка

Подушка

Cushion (10x28x19)

7

09320-08028-000

Подушка

Подушка

Grommet Cushion, front;

8

09320-08018-000

Валик

Валик

Cushion, lh Cushion, center;

9

47321-08FA0-000

Поддон

Поддон

Cover, frame lower Cover, lower;

10

09409-08308-5ES

CLIP(BLACK)

CLIP(BLACK)

Cap, remocon shaft hole Clip (black);

11

44894-24A00-000

Подушка

Подушка

Cushion, rear;
