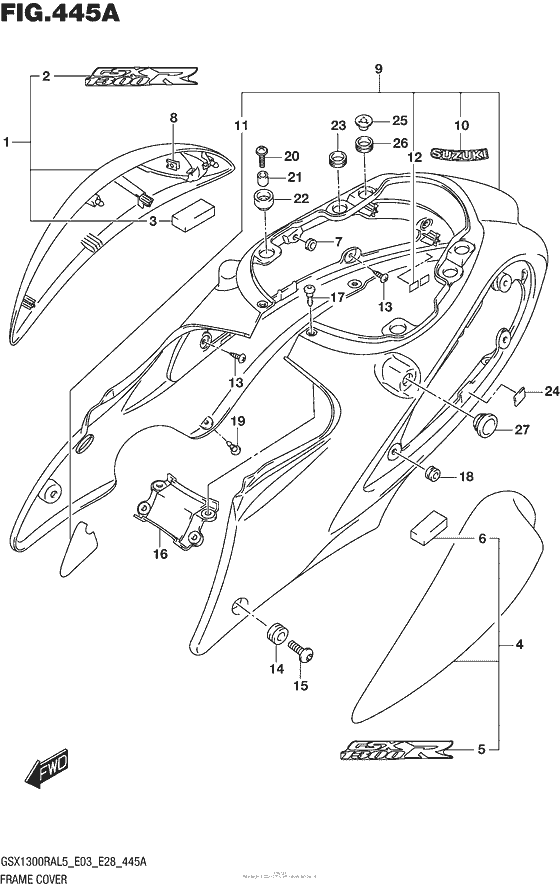

Обтекатель рамы

Suzuki GSX1300R (ABS) Hayabusa

Suzuki
Обтекатель рамы
#oem кодцена
1
47110-15H30-YVB
COVER,FRAME,R(BLACK)
1
47110-15H30-YKY
COVER,FRAME,R(BLUE)
1
47110-15H30-RB5
COVER,FRAME,R(WHITE)
2
68131-15H10-A33
EMBLEM,FRAME COVER
3
47511-15H00-000
CUSHION,FRAME COVER
4
47210-15H30-YVB
COVER,FRAME,L(BLACK)
4
47210-15H30-YKY
COVER,FRAME,L(BLUE)
4
47210-15H30-RB5
COVER,FRAME,L(WHITE)
5
68131-15H10-A33
EMBLEM,FRAME COVER
6
47511-15H00-000
CUSHION,FRAME COVER
7
09320-06016-000
упругая прокладка подвеса
8
09148-04015-000
Гайка
9
47310-15H20-YVB
COVER,FRAME CTR
9
47310-15H20-RB5
COVER,FRAME CTR(WHITE)
9
47310-15H20-5FX
COVER,FRAME CTR(BLUE)
10
68641-19F00-17U
EMBLEM(GRAY)
11
47312-15H00-000
TAPE,CTR
12
45516-01H00-000
CUSHION,SEAT TAIL COVER LWR RR
13
09136-05062-000
SCREW(5X15)
14
09320-09016-000
Подушка
15
09139-06190-000
BOLT(6X20)
16
47411-15H00-YVB
LID,FRAME COVER CTR
16
47411-15H00-YKY
LID,FRAME COVER CTR
16
47411-15H00-RB5
LID,FRAME COVER CTR(WHITE)
17
09409-06314-5PK
CLIP(BLACK)
18
09320-09016-000
Подушка
19
09409-06329-000
Зажим
20
09136-06105-000
Болт
21
09180-06288-000
Прокладка 6.5X10X1
22
47115-16G00-000
CUSHION,SEAT TAIL COVER CTR
23
47191-24F00-000
CUSHION,FRAME COVER UPR RR
24
33651-37000-000
PROTECTOR(170X95X3.0)
25
47190-24F21-000
WASHER,FRAME COVER
26
47191-24F30-000
CUSHION,FRAME COVER UPR RR RR
27
47191-24F20-000
CUSHION,FRAME COVER CTR
