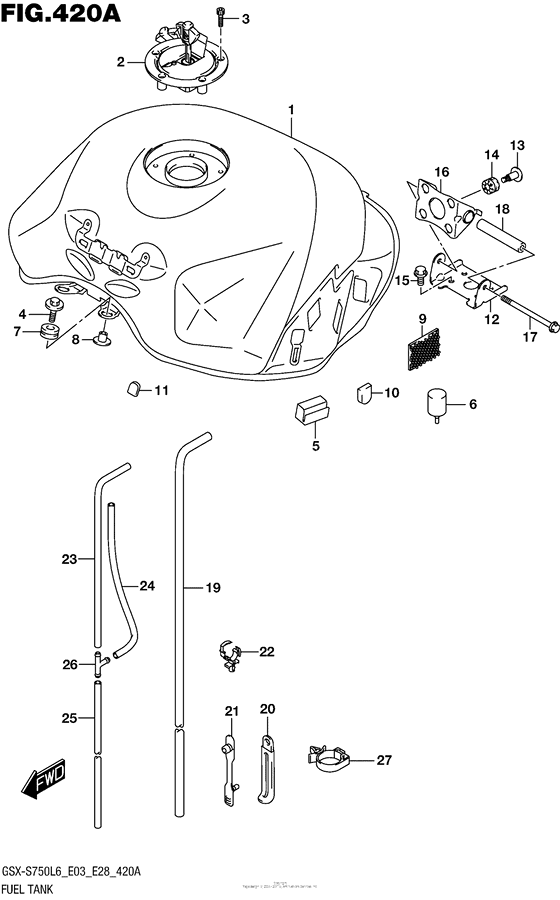

Fuel Tank (For Ykv,ajx)

Suzuki GSX-S750 (ABS)

Suzuki
Fuel Tank (For Ykv,ajx)
#oem кодцена
1-2
44100-08J02-YWW
TANK ASSY,FUEL
замена
44100-08J01-YWW
Tank assy,fuel(white)
1-1
44100-08J02-YKV
TANK ASSY,FUEL
2
44200-16850-000
CAP SET,FUEL TANK
3
09106-05017-000
BOLT(5X20)
4
01560-0625A-000
Болт
5
44541-08J00-000
CUSHION,FUEL TANK SIDE
6
44542-41G00-000
CUSHION,FUEL TANK RR
7
44511-16G00-000
CUSHION,FUEL TANK FR
8
44512-16G00-000
Кольцо/шайба
9
44572-13G00-000
Защелка
10
44542-08J00-000
CUSHION,FUEL TANK COVER SIDE
11
44543-08J00-000
CUSHION,FUEL TANK COVER CTR
12
44550-08J00-000
BRACKET,FUEL TANK RR NO.2
13
09139-06191-000
SCREW(6X22)
14
09320-08071-000
Подушка
15
01550-0612A-000
Болт
16
44530-41G01-000
BRACKET,FUEL TANK
17
07120-0695A-000
Болт
18
44561-18G00-000
Прокладка
19
44423-08J02-000
HOSE,FUEL DRAIN
20
09404-06434-000
CLAMP(L:80 T:1.0)
21
09407-05406-000
CLAMP(L:118)
22
09403-18307-000
Зажим
23
44424-08J01-000
HOSE,FUEL BREATHER
24
44424-15H10-000
HOSE,TANK BREATHER NO.2
25
44420-44AR0-000
HOSE SET,FUEL
26
09367-06007-000
3 WAY
27
09403-18409-000
Струбцина проводки
