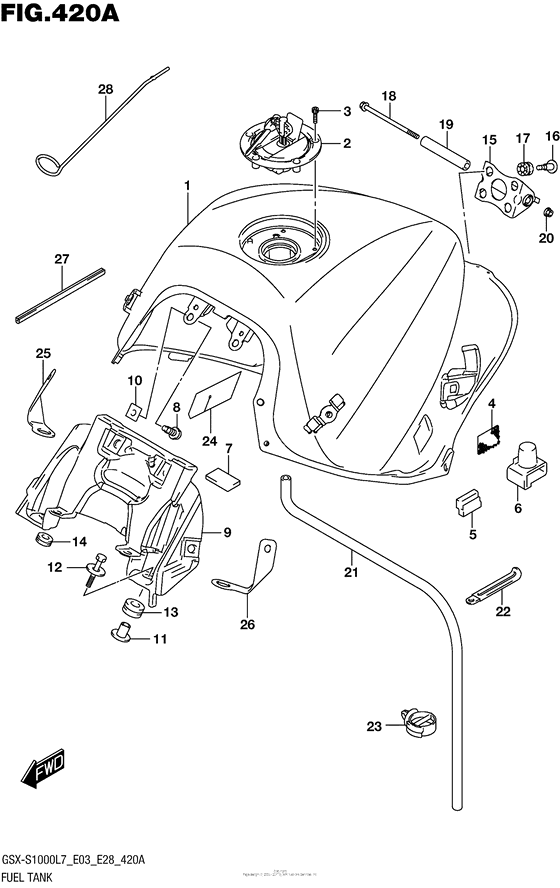

Fuel Tank (Gsx-S1000L7 E33)

Suzuki GSX-S1000 (ABS)

Suzuki
Fuel Tank (Gsx-S1000L7 E33)
#oem кодцена
1-3
44100-04K20-YVB
TANK ASSY,FUEL
1-2
44100-04K20-YSF
TANK ASSY,FUEL
1-1
44100-04K20-PGZ
TANK ASSY,FUEL
2
44200-16870-000
CAP SET,FUEL TANK
3
44244-11J00-000
BOLT,FUEL TANK FILLER CAP
4
44572-13G00-000
Защелка
5
44541-41G00-000
Валик
6
44542-04K00-000
CUSHION,FUEL TANK REAR
7
33652-20C00-000
PROTECTOR(50X50X5)
8
44543-04K00-000
SCREW,FUEL TANK FRONT BRKT
9
44521-04K00-000
BRACKET,FUEL TANK FRONT
10
44523-47H00-000
NUT(M6)
11
44512-04K00-000
SPACER,FUEL TANK FRONT
12
09116-06172-000
Болт
13
09320-10050-000
Подушка
14
09320-06504-000
Подушка
15
44530-04K00-000
BRACKET,FUEL TANK REAR
16
09139-06203-000
SCREW(6X24)
17
09320-08089-000
Подушка
18
09103-06060-000
BOLT(6X100)
19
44561-18G00-000
Прокладка
20
09159-06076-000
Гайка
21
44423-04K10-000
HOSE,FUEL TANK DRAIN NO.2
22
09404-06434-000
CLAMP(L:80 T:1.0)
23
09403-20307-000
Зажим кабеля защитного
24
44283-06J00-000
PROTECTOR,FUEL TANK
25
44561-04K00-000
BRACKET,FUEL TANK FRONT,R
26
44571-04K00-000
BRACKET,FUEL TANK FRONT,L
27
44552-24B00-000
MOLDING,FUEL TANK RR
28
44560-23H00-000
STAY,FUEL TANK
