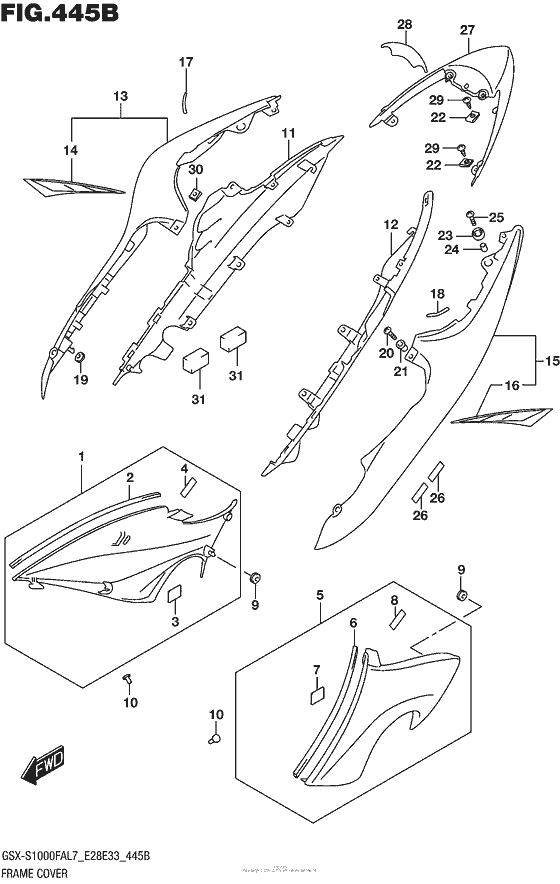

Frame Cover (Ysf)

Suzuki GSX-S1000F (ABS)

Suzuki
Frame Cover (Ysf)
#oem кодцена
1
47110-04K00-000
COVER,FRAME FRONT,R
2
44277-37H00-000
CUSHION,FUEL TANK COVER
3
44572-13G00-000
Защелка
4
94476-38C00-000
CUSHION,UNDER COWLING NO.1
5
47210-04K00-000
COVER,FRAME FRONT,L
6
44277-37H00-000
CUSHION,FUEL TANK COVER
7
44572-13G00-000
Защелка
8
94476-38C00-000
CUSHION,UNDER COWLING NO.1
9
09320-06504-000
Подушка
10
09409-10314-000
Зажим
11
47131-04K00-000
COVER,FRAME REAR LOWER,R
12
47231-04K00-000
COVER,FRAME REAR LOWER,L
13
47120-04K00-YSF
COVER,FRAME REAR UPPER,R(BLUE)
14
68135-04K10-A3F
TAPE,FRAME COVER,R
15
47220-04K00-YSF
COVER,FRAME REAR UPPER,L(BLUE)
16
68145-04K10-A3F
TAPE,FRAME COVER,L
17
47313-04K01-000
TAPE,FRAME COVER,R
18
47314-04K01-000
TAPE,FRAME COVER,L
19
09320-08028-000
Подушка
20
02142-1520B-000
Винт
21
09159-05019-000
Гайка воздухозаборника
22
09148-05047-000
Гайка
23
47312-37H00-000
CUSHION,FRAME COVER RR
24
09180-06283-000
Кольцо/шайба
25
09136-06105-000
Болт
26
94443-06G00-000
TAPE(6X25X0.13)
27
47311-04K00-YKV
COVER,FRAME CENTER
28
47312-04K00-000
TAPE,FRAME COVER CTR
29
03541-0512B-000
Винт
30
09148-05047-000
Гайка
31
17798-39G00-000
CUSHION,RADIATOR COVER INNER
