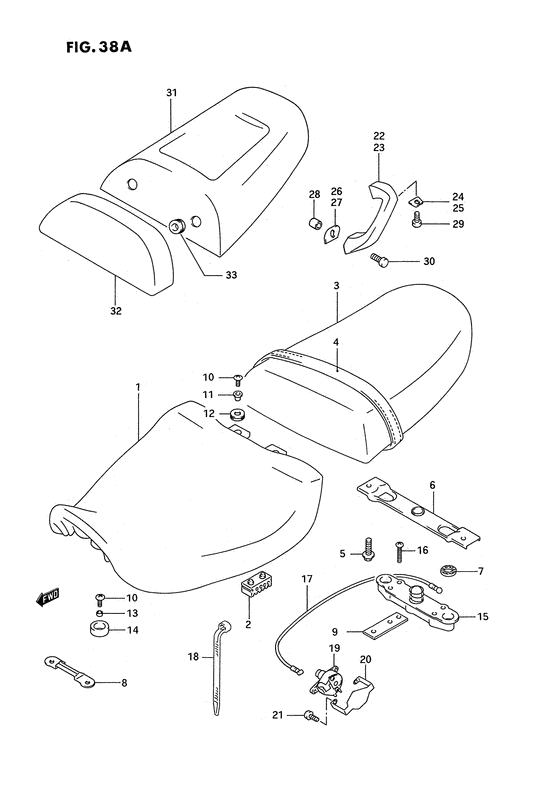

Сиденье для мотоциклов Suzuki GSX-R750 (1995)

oem код

название

цена

45100-17E10-6WS

Seat assy

Seat assy (pink) Seat assy (pink); For 1uj

45100-17E10-58R

Seat assy (black)

For m18,c3r

45149-31300-000

CUSHION,SEAT(40X20X15)

45300-17E00-6WT

Seat assy, pillion (purple)

Seat assy, pillion (purple); E2,e18,e22,e25,e39, for c3r

45300-17E00-6US

Seat assy, pillion (gray)

Seat assy, pillion (gray); E2,e18,e22,e25,e39, for 1uj

45300-17E00-5FM

Seat assy, pillion (blue)

Seat assy, pillion (blue); E2,e18,e22,e25,e39, for m18

замена

45300-17E20-6WT

Seat assy, pillion (purple)

Seat assy, pillion (purple); For c3r

замена

45300-17E20-6US

Seat assy,pilli

Seat assy, pillion (gray) Seat assy, pillion (gray); For 1uj

45300-17E10-58R

SEAT ASSY,PILLION

замена

45300-17E20-5FM

Seat assy,pilli

Seat assy, pillion (blue) Seat assy, pillion (blue); For m18

45180-17E00-6WT

Band, seat (purple)

Band, seat (purple);

45180-17E00-6US

Band comp,seat

Band, seat (gray) Band, seat (gray);

45180-17E00-5FM

Band comp,seat

Band, seat (blue) Band, seat (blue);

01550-0620B-000

Болт

Bolt, inspection cap

замена

01550-06203-000

Болт

Bolt, seat band;

45210-22D01-000

Striker, seat lock

45213-31300-000

Подушка

Cushion, boss;

45119-17E00-000

PLATE,SEAT FR HOOK

Plate, seat front

45210-17E00-000

Bracket comp,se

Bracket, seat front

02142-0616A-000

Болт

замена

02142-06163-000

Болт

Screw;

09169-06064-000

Шайба

Washer;

94433-26B00-000

Подушка

Cushion, side Cushion, seat front;

09180-06309-000

Кольцо/шайба

Spacer, guide

замена

09180-06053-000

Кольцо/шайба

45149-04A00-000

CUSHION,TAIL COVER UPR

Cushion, upper Cushion, seat support;

45220-13601-000

LOCK ASSY,SEAT STRIKER

Lock assy, seat striker Bracket, seat support rear;

02112-0635B-000

Болт

замена

02112-06353-000

Болт

Screw;

45280-17E00-000

Кабель замка

09407-18402-000

Струбцина (L:165)

Clamp (l:165)

замена

09407-18403-000

Струбцина проводки переключателя

95700-12853-000

LOCK SET,SEAT

замена

95700-12851-000

Замок

45289-45D01-000

PLATE,SEAT LOCK GUARD

Plate, seat lock guard Plate, seat lock guard;

09139-06075-000

Винт,6X12

Bolt Screw;

46211-17E00-33J

HANDLE,PILLION RIDER,R

замена

46211-17E00-1UJ

Handle, pillion rh (silver)

Handle, pillion rh (silver); E2,e18,e22,e25,e39, for 1uj

46211-17E00-0JW

HANDLE,PILLION RIDER,R

Handle, pillion rh (white); E2,e18,e22,e25,e39, for m18

46221-17E00-33J

HANDLE,PILLION RIDER,L

замена

46221-17E00-1UJ

Handle, pillion lh (silver)

Handle, pillion lh (silver); E2,e18,e22,e25,e39, for 1uj

46221-17E00-0JW

HANDLE,PILLION RIDER,L

Handle, pillion lh (white); E2,e18,e22,e25,e39, for m18

46236-17E00-000

Cushion, upper rh

Cushion, upper rh; E2,e18,e22,e25,e39

46237-17E00-000

CUSHION,PILLION HANDLE UPR,L

Cushion, upper lh; E2,e18,e22,e25,e39

46238-17E00-000

CUSHION,PILLION HANDLE LWR,R

E2,e18,e22,e25,e39

46239-17E00-000

Cushion, lower lh

Cushion, lower lh; E2,e18,e22,e25,e39

01550-0820B-000

Болт

замена

01550-08203-000

Болт

Bolt, upper; E2,e18,e22,e25,e39

07130-0845B-000

Болт

Bolt, muffler support

замена

07130-08453-000

Болт

Bolt, muffler support Bolt, lower; E2,e18,e22,e25,e39

09180-08173-000

Прокладка ручки

Spacer, handle grip end Spacer, lower; E2,e18,e22,e25,e39

замена

45500-17870-33J

Box set, seat tail (black)

Opt,for c3r

45500-17871-33J

BOX SET,SEAT TAIL(BLACK)

замена

45500-17870-1UJ

Box set, seat tail (silver)

Opt,for 1uj

45500-17871-0JW

BOX SET,SEAT TAIL(WHITE)

замена

45500-17870-0JW

Box set, seat tail (white)

Opt,for m18

46220-17E00-58R

Seat tail cvr p

Backrest, seat (black) Backrest, seat (black); Opt

09320-12031-000

Валик

Opt
