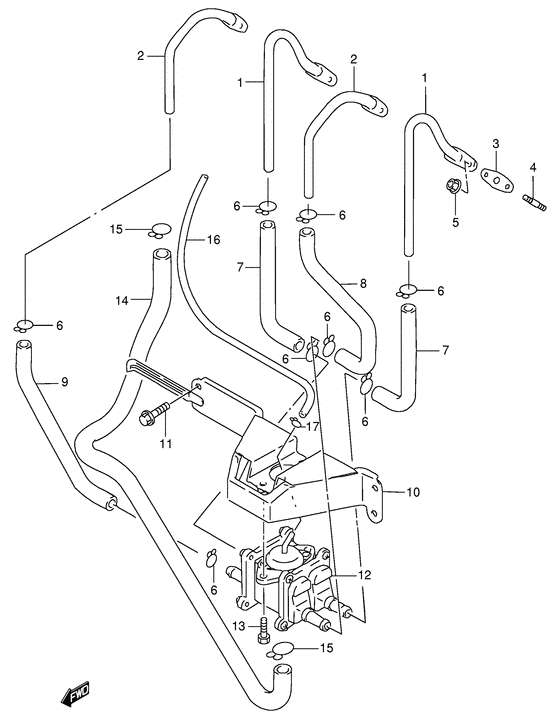

2nd air для мотоциклов Suzuki GSX-R750 (1996)

Москва и регионы России

2nd air

Suzuki GSX-R750

2nd air

2nd air

1

1

2

2

3

4

5

6

6

6

6

6

6

6

6

7

7

8

9

10

11

12

13

14

15

15

16

17

#

oem код

название

цена

1

18410-33E00-000

Pipe comp,2nd a

Pipe comp,2nd a

Pipe, 2nd air no.1

2

18420-33E00-000

Pipe comp,2nd a

Pipe comp,2nd a

Pipe, 2nd air no.2

3

18441-45C01-000

Прокладка

Прокладка

замена

18441-45C00-000

Прокладка

Прокладка

Gasket, air pipe

4

01421-0616A-000

Болт заклепка

Болт заклепка

замена

01421-06163-000

Болт

Болт

Bolt, stud Stud bolt;

5

08316-1006B-000

Гайка

Гайка

замена

08316-10063-000

Гайка

Гайка

Nut;

6

09401-13409-000

Зажим

Зажим

Clamp Clip;

7

18461-33E10-000

HOSE,2ND AIR VALVE NO.1

HOSE,2ND AIR VALVE NO.1

Hose, 2nd air valve no.1

8

18471-33E10-000

HOSE,2ND AIR VALVE NO.2

HOSE,2ND AIR VALVE NO.2

Hose, 2nd air valve no.2

9

18491-33E10-000

HOSE,2ND AIR VALVE NO.4

HOSE,2ND AIR VALVE NO.4

Hose, 2nd air valve no.4

10

18610-33E10-000

Bracket,2nd air

Bracket,2nd air

Bracket, 2nd air valve

11

09103-06285-000

BOLT(6X12)

BOLT(6X12)

Bolt (6x12)

замена

09103-06083-000

Болт М6x12

Болт М6x12

12

18450-33E12-000

VALVE ASSY,2ND AIR

VALVE ASSY,2ND AIR

замена

18450-33E10-000

Valve assy, 2nd air

Valve assy, 2nd air

13

07130-0616B-000

Болт

Болт

замена

07130-06163-000

Болт

Болт

14

18711-33E10-000

HOSE,2ND AIR CLEANER

HOSE,2ND AIR CLEANER

Hose, 2nd air cleaner

15

09401-15401-000

Зажим

Зажим

Clip, no.2

16

09352-40703-00B

HOSE(4X7X2000)

HOSE(4X7X2000)

Hose, breather Hose, 2nd air valve vacuum; L:2000->00

17

09401-06101-000

Зажим

Зажим
