Air intake pipe для мотоциклов Suzuki GSX-R600 (2010)

Москва и регионы России

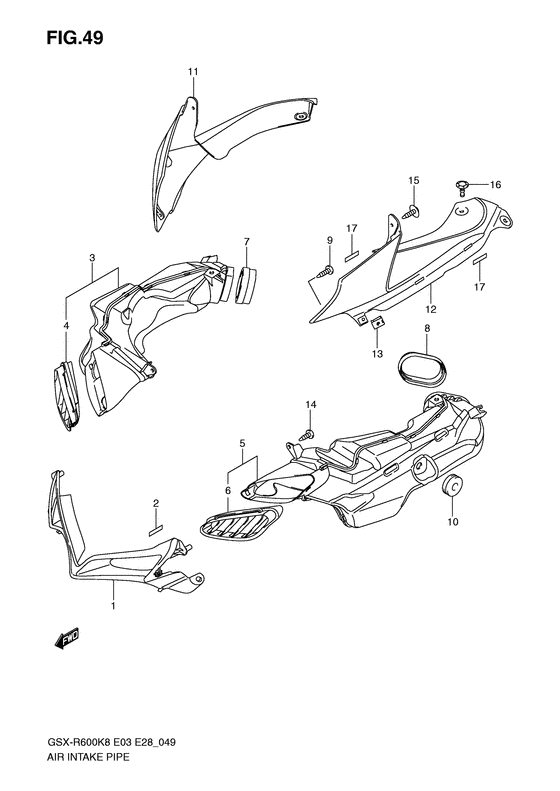

Air intake pipe

Suzuki GSX-R600

Air intake pipe

Air intake pipe

1

2

3

4

5

6

7

8

9

10

11

11

11

12

12

12

13

14

15

16

17

17

#

oem код

название

цена

1

94671-37H00-YKV

COVER,INTAKE

COVER,INTAKE

Cover, intake front (black);

2

94443-06G00-000

TAPE(6X25X0.13)

TAPE(6X25X0.13)

Tape, meter panel Tape;

3

94402-37H00-000

PIPE ASSY,AIR INTAKE,R

PIPE ASSY,AIR INTAKE,R

4

94412-37H00-000

NET,INTAKE PIPE,R

NET,INTAKE PIPE,R

5

94403-37H00-000

PIPE ASSY,AIR INTAKE,L

PIPE ASSY,AIR INTAKE,L

6

94413-37H00-000

NET,INTAKE PIPE,L

NET,INTAKE PIPE,L

7

94423-01H00-000

MOLDING,AIR INTAKE,R

MOLDING,AIR INTAKE,R

8

94433-01H00-000

MOLDING,AIR INTAKE,L

MOLDING,AIR INTAKE,L

9

03541-0516B-000

Болт

Болт

Screw;

10

09320-08028-000

Подушка

Подушка

Grommet

11

94672-37H00-YMD

COVER,INTAKE,R

COVER,INTAKE,R

Cover, intake side rh (silver); For eds,fgh,fgf

11

94672-37H00-YKY

COVER,INTAKE,R

COVER,INTAKE,R

Cover, intake side rh (blue); For cwh

11

94672-37H00-YKV

COVER,INTAKE,R

COVER,INTAKE,R

Cover, intake side rh (black); For cru

12

94682-37H00-YMD

COVER,INTAKE,L

COVER,INTAKE,L

Cover, intake side lh (silver); For eds,fgh,fgf

12

94682-37H00-YKY

COVER,INTAKE,L

COVER,INTAKE,L

Cover, intake side lh (blue); For cwh

12

94682-37H00-YKV

COVER,INTAKE,L

COVER,INTAKE,L

Cover, intake side lh (black); For cru

13

09148-05052-000

Гайка

Гайка

14

03541-0512B-000

Винт

Винт

Screw, front;

15

09132-05050-000

Винт

Винт

Screw, center;

16

94479-35F00-000

Зажим

Зажим

Clip, lower Clip, rear;

17

94443-06G00-000

TAPE(6X25X0.13)

TAPE(6X25X0.13)

Tape, meter panel Tape;
