Обтекатель сидения для мотоциклов Suzuki GSX-R1100 (1990)

Москва и регионы России

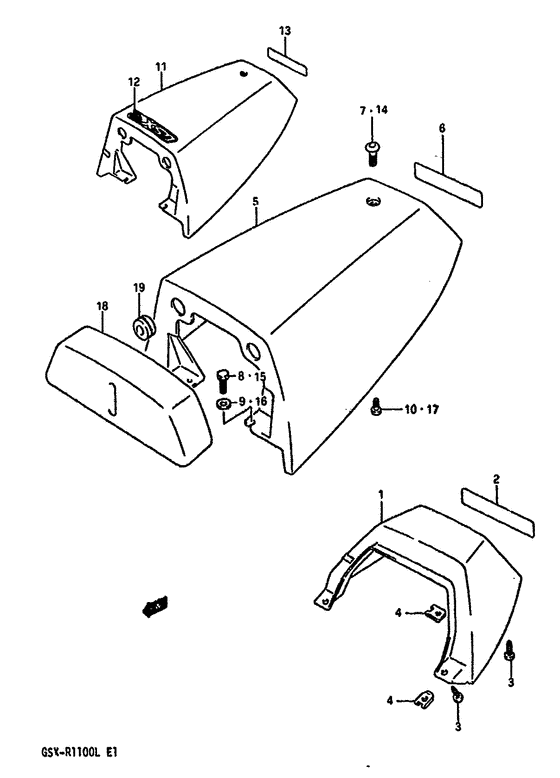

Обтекатель сидения

Suzuki GSX-R1100

Обтекатель сидения

Обтекатель сидения

#

oem код

название

цена

1

45510-40C11-33J

Cover,seat tail (black)

Cover,seat tail (black)

For 3cg,n/clear

1

45510-17C52-33J

Cover,seat tail

Cover,seat tail

замена

45510-40C10-33J

Cover,seat tail (black)

Cover,seat tail (black)

For 3cg,w/clear

1

45510-40C11-28V

Cover,seat tail (red)

Cover,seat tail (red)

Cover,seat tail (red); For 3ee,n/clear

1

45510-40C10-28V

Cover,seat tail (red)

Cover,seat tail (red)

Cover,seat tail (red); For 3ee,w/clear

замена

45510-40C11-33N

Cover,seat tail (blue)

Cover,seat tail (blue)

For 9sr,n/clear

1

45510-40C12-0NE

Cover comp,seat

Cover comp,seat

Cover,seat tail (blue)

замена

45510-40C10-33N

Cover,seat tail (blue)

Cover,seat tail (blue)

For 9sr,w/clear

2

68166-04700-742

Эмблема

Эмблема

Emblem (silver) Emblem (silver); For 33j,28v

2

68166-04700-0JW

EMBLEM,BOX SEAT TAIL

EMBLEM,BOX SEAT TAIL

Emblem (white)

замена

68166-04700-22R

Emblem (white)

Emblem (white)

For 33n

3

03241-0512A-000

Болт

Болт

замена

03242-05129-000

Болт

Болт

4

09148-05013-000

Гайка

Гайка

5

45500-17C21-28V

Box assy,seat tail (red)

Box assy,seat tail (red)

Box assy,seat tail (red); For 3ee,n/clear

5

45500-17C20-28V

Box assy,seat tail (red)

Box assy,seat tail (red)

Box assy,seat tail (red); For 3ee,w/clear

5

45500-17C21-33N

Box assy,seat tail (blue)

Box assy,seat tail (blue)

For 9sr,n/clear

5

45500-17C20-33N

Box assy,seat tail (blue)

Box assy,seat tail (blue)

For 9sr,w/clear

6

68166-04700-742

Эмблема

Эмблема

Emblem (silver) Embelm (silver); For 28v

6

68166-04700-0JW

EMBLEM,BOX SEAT TAIL

EMBLEM,BOX SEAT TAIL

Emblem (white)

замена

68166-04700-22R

Emblem (white)

Emblem (white)

For 33n

7

09139-06030-000

Винт (6X16)

Винт (6X16)

Screw (6x16) Screw,upper;

8

01500-0620A-000

Болт

Болт

замена

01107-06206-000

Bolt, front

Bolt, front

9

08322-0106B-000

Шайба

Шайба

замена

08322-21066-000

Шайба

Шайба

10

02142-05127-000

Болт

Болт

замена

02142-05128-000

Болт

Болт

11

45500-17C41-33J

Box assy,seat tail (black)

Box assy,seat tail (black)

For 3cg,n/clear

11

45500-17C40-33J

Box assy,seat tail (black)

Box assy,seat tail (black)

For 3cg,w/clear

12

68651-17C00-2RM

Emblem,seat tai

Emblem,seat tai

Tape,seat tail box For 33j

13

68166-04700-742

Эмблема

Эмблема

Emblem (silver) Emblem (silver); For 33j

14

09139-06030-000

Винт (6X16)

Винт (6X16)

Screw (6x16) Screw,upper;

15

01500-0620A-000

Болт

Болт

замена

01107-06206-000

Bolt, front

Bolt, front

16

08322-0106B-000

Шайба

Шайба

замена

08322-21066-000

Шайба

Шайба

17

02142-05127-000

Болт

Болт

замена

02142-05128-000

Болт

Болт

18

46220-17C10-58R

BACKREST,SEAT(BLACK)

BACKREST,SEAT(BLACK)

Backrest,seat (black)

замена

46220-17C10-5YN

Backrest,seat (red)

Backrest,seat (red)

Backrest,seat (red); For 3ef

18

46220-17C10-5NN

BACKREST,SEAT

BACKREST,SEAT

Backrest,seat (blue) Backrest,seat (blue); For 9sr

19

09320-12031-000

Валик

Валик
