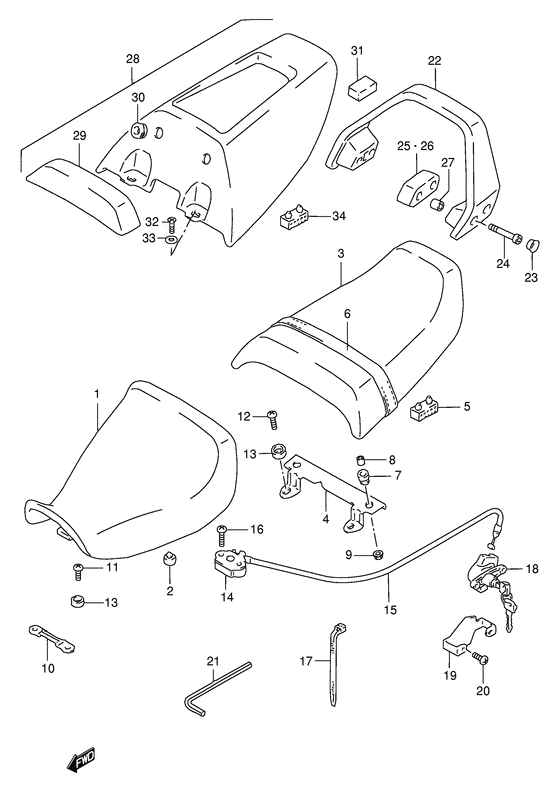

Пружина для мотоциклов Suzuki GSX-R1100 (1998)

oem код

название

цена

45100-46E00-58R

SEAT ASSY

Seat assy (black) Seat assy (black);

09321-10011-000

Подушка

замена

45300-46E00-6WT

Seat assy, pillion (purple)

Seat assy, pillion (purple) (no seat band) Seat assy, pillion (purple) (no seat band); E2,e4,e15,e17,e18,e21,e22,, e24,e25,e34 for c

45300-46E00-58R

SEAT ASSY,PILLION

Seat assy, pillion (black) (no seat band)

замена

45300-46E00-5FM

Seat assy,pilli

Seat assy, pillion (blue) (no seat band) Seat assy, pillion (blue) (no seat band); E2,e4,e15,e17,e18,e21,e22,, e24,e25,e34 for m18

45300-46E10-6WT

Seat assy, pillion (purple)

Seat assy, pillion (purple); E1,e53 for c3s

45300-46E10-58R

Seat assy, pillion (black)

Seat assy, pillion (black); E1,e53 for 33j

45300-46E10-5FM

Seat assy, pillion (blue)

Seat assy, pillion (blue); E1,e53 for m18

45321-46E00-000

PLATE,FR HOOK

Plate, seat lock

45149-31300-000

CUSHION,SEAT(40X20X15)

замена

45180-46E00-6WT

Band, seat grip (purple)

Band, seat grip (purple); E1,e53

45180-46E00-58R

BAND,SEAT(BLACK)

Band, seat grip (black)

замена

45180-46E00-5FM

Band comp seat

Band, seat grip (blue) Band, seat grip (blue); E1,e53

45215-06B00-000

Подушка

Spacer

45216-06B00-000

Кольцо/шайба

Cushion Spacer;

08316-1006B-000

Гайка

замена

08316-10063-000

Гайка

Nut;

45119-17E00-000

PLATE,SEAT FR HOOK

Plate, seat front

09122-66007-000

Винт,6X14

замена

09139-06052-000

Screw, plate

09139-06027-000

SCREW(6X12)

Screw, pillion seat;

45149-04A00-000

CUSHION,TAIL COVER UPR

Cushion, upper Cushion, seat support;

45220-46E00-000

BRACKET,SEAT SUPPORT RR

Bracket, seat support rear

45280-46E00-000

Кабель замка

02122-0625A-000

Болт

замена

02122-06253-000

Screw (6x25)

09407-18402-000

Струбцина (L:165)

Clamp (l:165)

замена

09407-18403-000

Струбцина проводки переключателя

95700-12853-000

LOCK SET,SEAT

замена

95700-12851-000

Замок

45289-45D01-000

PLATE,SEAT LOCK GUARD

Plate, seat lock guard Plate, seat lock guard;

09139-06075-000

Винт,6X12

Bolt Screw;

09816-00103-000

SPANNER,HEXAGON(4)

Spanner;

замена

46211-46E00-1WE

Handle, pillion rider

Handle, pillion rider (lavender) Handle, pillion rider (lavender); For c3s

46211-46E00-33J

HANDLE,PILLION RIDER

Handle, pillion rider (black) Handle, pillion rider (black); For 33j

46211-46E00-0JW

Handle,pillion

Handle, pillion rider (white) Handle, pillion rider (white); For m18

09250-06004-000

CAP(OD:14.5)

07130-0865B-000

Болт

замена

07130-08653-000

Болт

46238-46E00-000

CUSHION,PILLION RIDER HANDLE,R

Cushion, pillion rh Cushion, rh;

46239-46E00-000

CUSHION,PILLION RIDER HANDLE,L

Cushion, pillion lh

09180-08180-XC0

Spacer,8.5x16x37

замена

09180-08180-000

Spacer,8.5x16x3

45500-46810-1WE

Box set, seat tail (lavender)

Box set, seat tail (lavender); Opt,for c3s

45500-46810-33J

Box set, seat tail (black)

Opt,for 33j

45500-46810-0JW

Box set, seat tail (white)

Opt,for m18

46220-46E00-58R

BACKREST,SEAT(BLACK)

Backrest, seat (black) Backrest, seat (black); Opt

09320-12031-000

Валик

Opt

45591-12C00-000

Protector,tail

Opt

09139-06067-000

Винт (6X16)

Screw (6x16) Opt

09160-06066-000

Шайба

Washer, throttle lever (6.5x20x1.6) Opt

45149-31300-000

CUSHION,SEAT(40X20X15)

Opt
