Rear Fender (Gsx-R1000Al6 E33) для мотоциклов Suzuki GSX-R1000 (2016)

Москва и регионы России

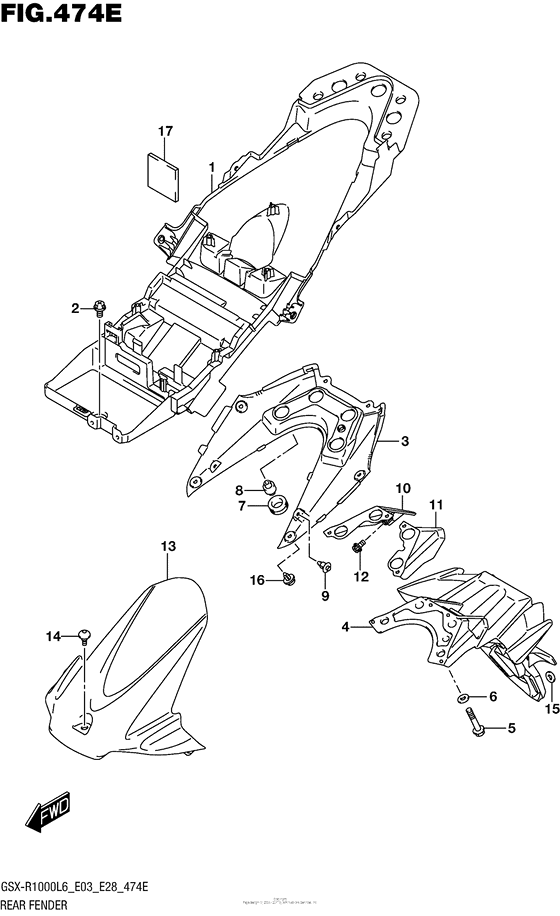

Rear Fender (Gsx-R1000Al6 E33)

Suzuki GSX-R1000

Rear Fender (Gsx-R1000Al6 E33)

Rear Fender (Gsx-R1000Al6 E33)

1

2

3-2

3-1

4

5

6

7

8

9

10

11

12

13

14

15

16

17

#

oem код

название

цена

1

63111-47H10-000

FENDER,RR FR

FENDER,RR FR

2

09111-06106-000

BOLT(6X12)

BOLT(6X12)

3-3

63112-47H10-YVB

COVER,REAR FENDER FRONT

COVER,REAR FENDER FRONT

3-2

63112-47H10-YWW

COVER,RR FENDER FR

COVER,RR FENDER FR

3-1

63112-47H10-YSF

COVER,RR FENDER FR

COVER,RR FENDER FR

4

63113-47H00-000

FENDER,RR RR

FENDER,RR RR

5

09103-06204-000

BOLT(6X30)

BOLT(6X30)

6

09160-06028-000

Шайба

Шайба

Washer

7

09320-20010-000

Подушка

Подушка

8

63147-47H00-000

SPACER,RR FENDER RR

SPACER,RR FENDER RR

9

09409-06314-5PK

CLIP(BLACK)

CLIP(BLACK)

10

63170-47H00-YUS

COVER,RR FENDER RR,R

COVER,RR FENDER RR,R

11

63180-47H00-YUS

COVER,RR FENDER RR,L

COVER,RR FENDER RR,L

12

07120-0510A-000

Болт

Болт

13

63114-47H00-000

FENDER,RR LWR

FENDER,RR LWR

14

09139-06169-000

Болт

Болт

15

08322-0106A-000

Шайба

Шайба

16

09409-06328-000

Зажим

Зажим

Clip, frame cover

17

33652-20C00-000

PROTECTOR(50X50X5)

PROTECTOR(50X50X5)
