Fuel Tank (Gsx-R1000L6 E03) для мотоциклов Suzuki GSX-R1000 (2016)

Москва и регионы России

Fuel Tank (Gsx-R1000L6 E03)

Suzuki GSX-R1000

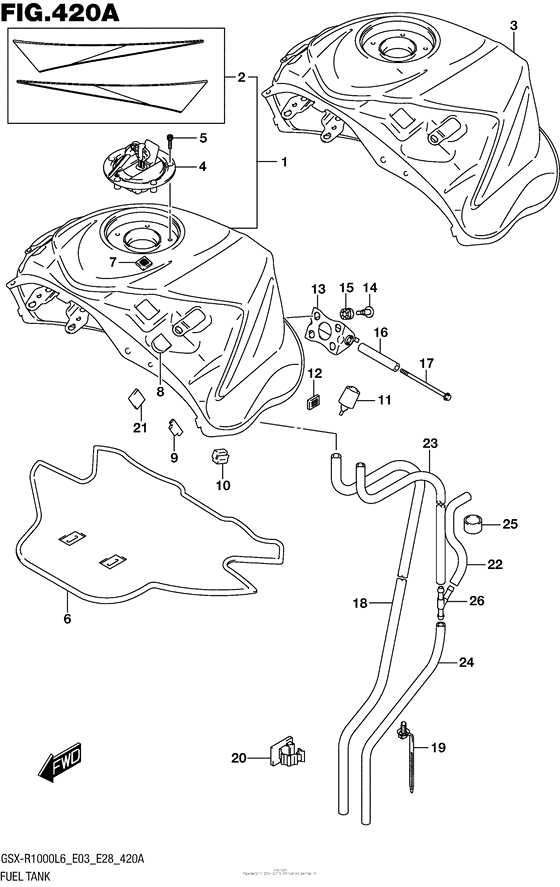

Fuel Tank (Gsx-R1000L6 E03)

Fuel Tank (Gsx-R1000L6 E03)

1

2

3-2

3-1

4

5

6

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

#

oem код

название

цена

1

44100-47H30-YSF

TANK ASSY,FUEL

TANK ASSY,FUEL

2

68110-47H10-A3F

TAPE SET,FUEL TANK

TAPE SET,FUEL TANK

3-2

44100-47H01-YVZ

TANK ASSY,FUEL

TANK ASSY,FUEL

3-1

44100-47H01-YKY

TANK ASSY,FUEL

TANK ASSY,FUEL

4

44200-16850-000

CAP SET,FUEL TANK

CAP SET,FUEL TANK

5

09106-05017-000

BOLT(5X20)

BOLT(5X20)

6

44191-47H00-000

SHIELD,FUEL TANK HEAT

SHIELD,FUEL TANK HEAT

7

44572-44G00-000

Защелка крышки

Защелка крышки

8

09329-18001-000

упругая прокладка подвеса

упругая прокладка подвеса

Cushion, cover

9

44276-21H00-000

Валик

Валик

10

44541-41G00-000

Валик

Валик

11

44542-41G00-000

CUSHION,FUEL TANK RR

CUSHION,FUEL TANK RR

Cushion, rear side

12

44572-13G00-000

Защелка

Защелка

13

44530-41G01-000

BRACKET,FUEL TANK

BRACKET,FUEL TANK

14

09139-06191-000

SCREW(6X22)

SCREW(6X22)

15

09320-08071-000

Подушка

Подушка

Cushion, no.2

16

44561-18G00-000

Прокладка

Прокладка

17

09106-06119-000

BOLT(6X110)

BOLT(6X110)

18

44423-47H00-000

HOSE,FUEL TANK WATER DRAIN

HOSE,FUEL TANK WATER DRAIN

19

09407-17403-000

CLAMP(L:154)

CLAMP(L:154)

Clamp (l:170)

20

09403-14311-000

Хомут

Хомут

21

61544-94500-000

Уплотнение

Уплотнение

22

44424-15H10-000

HOSE,TANK BREATHER NO.2

HOSE,TANK BREATHER NO.2

23

44424-47H00-000

HOSE,FUEL TANK BREATHER NO.1

HOSE,FUEL TANK BREATHER NO.1

24

44424-47H10-000

HOSE,FUEL TANK BREATHER NO.2

HOSE,FUEL TANK BREATHER NO.2

25

09352-12163-600

HOSE(12X16X600)

HOSE(12X16X600)

Hose, 2nd air

26

09367-06007-000

3 WAY

3 WAY

3 way (pump to carb)
