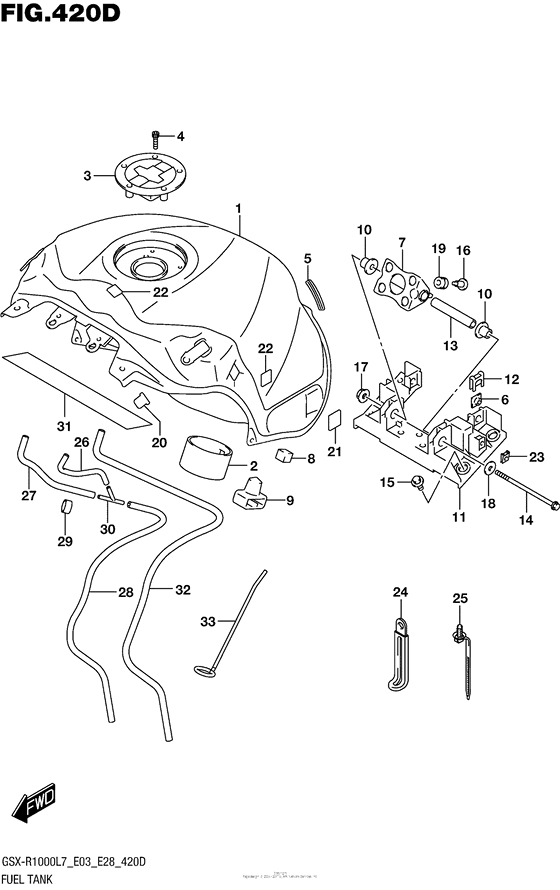

Fuel Tank (Gsx-R1000L7 E28) (Ykv,yvz)

Suzuki GSX-R1000 (ABS)

Suzuki
Fuel Tank (Gsx-R1000L7 E28) (Ykv,yvz)
#oem кодцена
1-2
44100-17K00-YVZ
TANK ASSY,FUEL
1-1
44100-17K00-YKV
TANK ASSY,FUEL
2
44121-17K00-000
VESSEL,FUEL TANK INNER
3
44200-17820-000
CAP SET,FUEL TANK FILLER
4
44244-11J00-000
BOLT,FUEL TANK FILLER CAP
5
44552-24B10-000
MOLDING,FUEL TANK REAR
6
44523-47H00-000
NUT(M6)
7
44530-17K00-000
BRACKET COMP,FUEL TANK NO.1
8
44541-17K00-000
CUSHION,FUEL TANK SIDE
9
44542-17K00-000
CUSHION,FUEL TANK REAR
10
44544-17K00-000
SPACER,FUEL TANK REAR BRKT
11
44551-17K00-000
BRACKET,FUEL TANK REAR
12
44552-17K00-000
CLIP,NUT
13
44561-18G00-000
Прокладка
14
09103-06033-000
BOLT(6X125)
15
09111-06081-000
BOLT(6X18)
16
09139-06191-000
SCREW(6X22)
17
09159-06086-000
Гайка
18
09160-06054-000
Шайба
19
09320-08071-000
Подушка
20
44543-17K00-000
CUSHION,FUEL TANK COVER
21
44572-13G00-000
Защелка
22
44572-44G00-000
Защелка крышки
23
09148-05052-000
Гайка
24
09404-06434-000
CLAMP(L:80 T:1.0)
25
09407-17403-000
CLAMP(L:154)
26
44424-15H10-000
HOSE,TANK BREATHER NO.2
27
44424-17K00-000
HOSE,FUEL TANK BRTHR NO.1
28
44424-17K10-000
HOSE,FUEL TANK BRTHR NO.2
29
09352-13162-010
HOSE(13.5X16.5X10)
30
09367-06007-000
3 WAY
31
44283-17K00-000
PROTECTOR,FUEL TANK
32
44423-17K00-000
HOSE,FUEL TANK WATER DRAIN
33
44574-17K00-000
STAY,FUEL TANK
