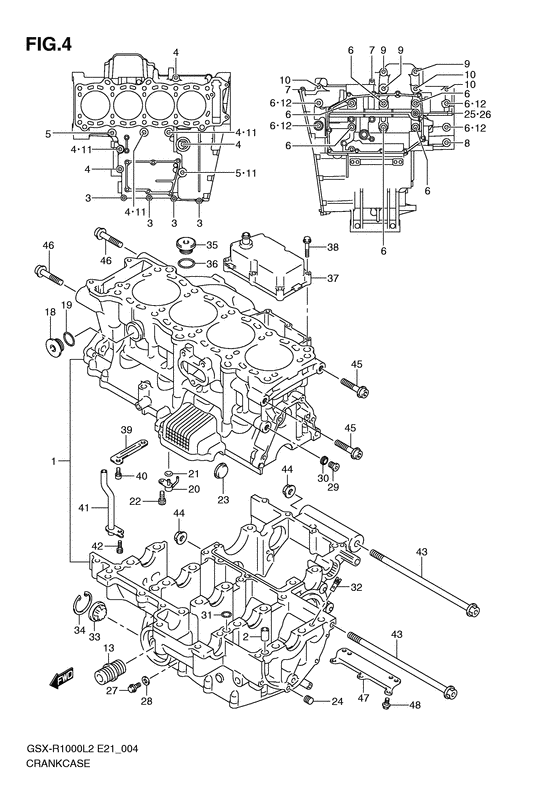

Картер двигателя для мотоциклов Suzuki GSX-R1000 (2012)

oem код

название

цена

11300-47890-000

Картер

11319-33E50-000

PIN,CRANKCASE

01547-0635A-000

Болт

Bolt;

01550-0855A-000

Болт

Bolt, gear holder

01550-0865A-000

Болт

Bolt, oil pump (l)

09103-09012-000

BOLT(9X95)

Bolt (9x95);

01547-0645A-000

Болт

Bolt;

01550-0835A-000

Болт

01550-0855A-000

Болт

Bolt, gear holder

01550-0865A-000

Болт

Bolt, oil pump (l)

09168-08016-000

Прокладка

Gasket (8.2x14x1.0) Gasket (8.2x14x1);

09168-10031-000

Прокладка

Gasket (10.2x20x2.3);

16591-06B01-000

UNION,OIL STAND

Union, oil filter stand;

09280-00045-000

O RING(D:3,ID:102)

O ring (d:3,id:102); Not illustrated

09139-06151-000

BOLT(6X20)

Bolt, drive shaft bearing cover (6x20) Bolt (6x20); Not illustrated

12228-48B00-0E0

BEARING,CRANK THRUST(GREEN)

Bearing, crank thrust (green) Bearing, thrust rh (green); See illustration on fig.7

12228-48B00-0H0

BEARING,CRANK THRUST(BLACK)

Bearing, crank thrust (black) Bearing, thrust lh (black); See illustration on fig.7

12228-48B00-0G0

BEARING,CRANK THRUST(ORANGE)

Bearing, crank thrust (orange) Bearing, thrust lh (orange); See illustration on fig.7

12228-48B00-0F0

BEARING,CRANK THRUST(BLUE)

Bearing, crank thrust (blue) Bearing, thrust lh (blue); See illustration on fig.7

12228-48B00-0E0

BEARING,CRANK THRUST(GREEN)

Bearing, crank thrust (green) Bearing, thrust lh (green); See illustration on fig.7

12228-48B00-0D0

BEARING,CRANK THRUST(YELLOW)

Bearing, crank thrust (yellow) Bearing, thrust lh (yellow); See illustration on fig.7

12228-48B00-0C0

BEARING,CRANK THRUST(RED)

Bearing, crank thrust (red) Bearing, thrust lh (red); See illustration on fig.7

12228-48B00-0B0

BEARING,CRANK THRUST(BROWN)

Bearing, crank thrust (brown) Bearing, thrust lh (brown); See illustration on fig.7

11318-35F00-000

PLUG,WATER JACKET

09280-20002-000

Кольцо (ID:19.4, D:3.1)

O ring (id:19.4, d:3.1) O ring (d:3.1,id:19.4);

11390-21H01-000

JET,PISTON COOLING

замена

11390-21H00-000

Жиклер

09280-04004-000

O RING(D:1.2,ID:4)

O ring, oil gallery jet O ring (d:1.2,id:4);

09106-06075-000

BOLT(6X12)

Bolt (6x12);

09241-23005-000

Заглушка

09246-05006-000

PLUG(1/8PT,H:5.5)

09248-12004-000

PLUG(L:12)

Plug, oil gallery Plug (l:12);

09168-12002-000

Прокладка

Gasket Gasket (12.1x16.2x3.7);

01547-0612A-000

Болт

Bolt, push rod guide

09168-06018-000

Прокладка

Gasket, oil check bolt Gasket (6.2x13x1.2);

09248-10010-000

PLUG(10X10)

Plug, oil gallery Plug (10x10);

09168-10002-000

Прокладка

Gasket Gasket (10x14x3.6);

09280-08012-000

Кольцо D:1.9 ID

O ring (d:1.9 id:7.8) O ring (d:1.9,id:7.8);

09493-28012-000

JET(140)

Jet, head Jet, 140;

11971-33210-000

LENS,OIL LEVEL CHECK

Lens, oil check Lens, oil level;

08331-4130A-000

Пружинное стопорное кольцо

09259-26011-000

PLUG(26X9)

Plug (26x9);

09280-22008-000

O RING(D:3.1,ID:22.7)

O ring (d:3.1,id:22.7);

11380-47H00-000

Крышка сапуна

01547-0630A-000

Болт

11382-47H00-000

PLATE,BREATHER OIL RETURN

09106-06075-000

BOLT(6X12)

Bolt (6x12);

11383-47H00-000

PIPE,BREATHER OIL RETURN

07130-0612A-000

Болт

09103-12110-000

BOLT(12X220)

Bolt (12x220);

09159-12054-000

Гайка

Nut, pivot

09106-10089-000

Болт 10X45

Bolt (10x45);

09106-10090-000

Болт 10X55

Bolt (10x55);

11322-47H00-000

PLATE,CRANKCASE LWR

09103-06188-000

Болт 6X10

Bolt (6x10);
