Frame center cover для мотоциклов Suzuki GSX-R1000 (2012)

Москва и регионы России

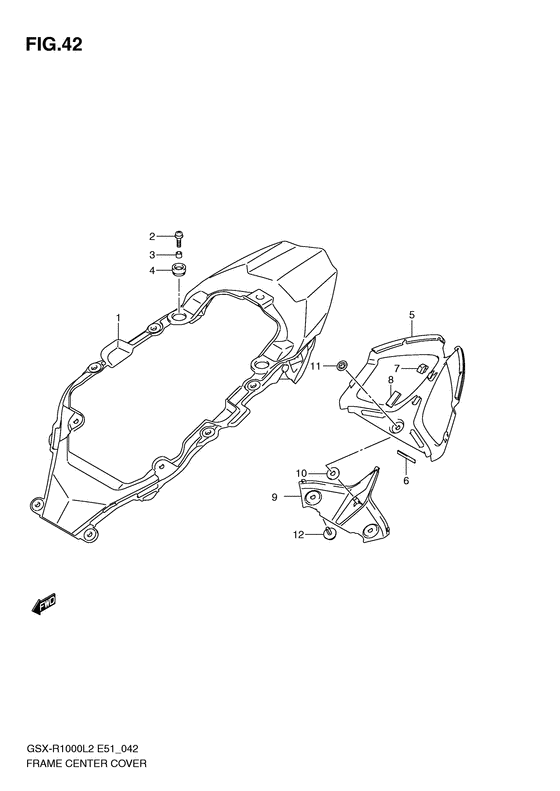

Frame center cover

Suzuki GSX-R1000

Frame center cover

Frame center cover

1

1

2

3

4

5

5

6

7

8

9

9

10

11

12

#

oem код

название

цена

1

47310-47H00-YVB

COVER,FRAME CTR

COVER,FRAME CTR

Cover, frame center (black); For kgl

1

47310-47H00-YBD

COVER,FRAME CTR

COVER,FRAME CTR

Cover, frame center (white); For glr

2

09136-06056-000

Винт (6X16)

Винт (6X16)

Screw (6x16);

3

09180-06283-000

Кольцо/шайба

Кольцо/шайба

Spacer (6.5x10x7) Spacer (6.5x10x7);

4

47312-37H00-000

CUSHION,FRAME COVER RR

CUSHION,FRAME COVER RR

5

47911-47H00-Y4P

COVER,FRAME RR CTR

COVER,FRAME RR CTR

Cover, rear center (gray); For kgl

5

47911-47H00-YUA

COVER,FRAME RR CTR

COVER,FRAME RR CTR

Cover, rear center (blue); For glr

6

47912-47H00-000

CUSHION,FRAME COVER RR CTR

CUSHION,FRAME COVER RR CTR

7

47913-37H00-000

CUSHION,FRAME COVER RR CTR

CUSHION,FRAME COVER RR CTR

8

94413-08F00-000

CUSHION,CTR PANEL UPR

CUSHION,CTR PANEL UPR

Cushion, upper

9

47921-47H00-YKV

COVER,FRAME RR CTR LWR(BLACK)

COVER,FRAME RR CTR LWR(BLACK)

Cover, rear lower (black); For kgl

9

47921-47H00-YBD

COVER,FRAME RR CTR LWR

COVER,FRAME RR CTR LWR

Cover, rear lower (white); For glr

10

09320-06501-000

Шайба

Шайба

Cushion

11

09148-05006-000

Гайка

Гайка

12

09409-06328-000

Зажим

Зажим

Clip, frame cover
