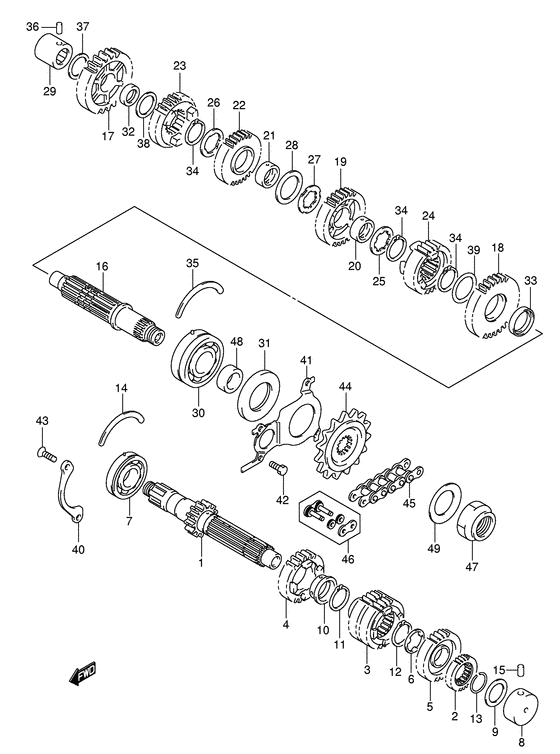

Трансмиссия для мотоциклов Suzuki GSF650S Bandit S (2006)

oem код

название

цена

24121-19C01-000

SHAFT,COUNTER(NT:12)

Shaft, cntr (nt:12) Shaft, cntr (nt:12);

24221-27A01-000

GEAR,2ND DRIVE(NT:16)

Gear, 2nd drive (nt:16) Gear, 2nd drive (nt:16);

24231-27A00-000

GEAR,3RD & 4TH DRIVE(NT:17/20)

Gear, 3/4 th drive (nt:17/20);

24251-27A01-000

GEAR,5TH DRIVE(NT:22)

Gear, 5th drive (nt:22) Gear, 5th drive (nt:22);

24261-17C02-000

GEAR,6TH DRIVE(NT:21)

Gear, 6th drive (nt:21) Gear, 6th drive (nt:21);

09167-25012-000

Шайба

Washer, 4th Washer, 6th drive (25.1x31x1);

09262-25051-000

Подшипник

Bearing, cntr shaft, rh; 25x62x17

09263-20049-000

BEARING(20X34X17.5)

Bearing, lh Bearing, cntr shaft, lh; 20x34x17.5

09285-20006-000

Сальник

Oil seal Seal, oil (20x31.2x2.7);

24322-19F00-000

Втулка

Bush, 2nd driven Bush, 5th drive gear;

09380-25003-000

RING,SNAP

Circlip Circlip, 5th gear;

09380-25003-000

RING,SNAP

Circlip Circlip, 6th gear;

09380-25013-000

Пружинное стопорное кольцо

Circlip, 2nd drive Circlip, 2nd gear;

09390-62012-000

C RING

C ring, cntr brg, rh;

04221-07129-000

Штифт

Pin, cntr brg, lh;

24131-20C31-000

Вал ведущий

24311-19C10-000

GEAR,1ST DRIVEN(NT:37)

Gear, 1st driven (nt:37) Gear, 1st driven (nt:37);

24321-20C00-000

GEAR,2ND DRIVEN(NT:33)

Gear, 2nd driven (nt:33) Gear, 2nd driven (nt:33);

24331-27A00-000

GEAR,3RD DRIVEN(NT:28)

Gear, 3rd driven (nt:28) Gear, 3rd driven (nt:28);

24332-27A00-000

Втулка

Bush, 3rd driven gear Bush, 3rd driven;

24332-27A00-000

Втулка

Bush, 3rd driven gear Bush, 4th driven;

24341-27A01-000

GEAR,4TH DRIVEN(NT:28)

Gear, 4th driven (nt:28) Gear, 4th driven (nt:28);

24351-27A00-000

GEAR,5TH DRIVEN(NT:27)

Gear, 5th driven (nt:27) Gear, 5th driven (nt:27);

24361-20C01-000

GEAR,6TH DRIVEN(NT:23)

Gear, 6th driven (nt:23) Gear, 6th driven (nt:23);

09167-28001-000

WASHER,LOCK

Washer, 3rd driven gr,rh Washer, 3rd lh (28.1x38x1);

09167-28001-000

WASHER,LOCK

Washer, 3rd driven gr,rh Washer, 4th rh (28.1x38x1);

09167-28002-000

Пластина замка

Washer, 3rd driven gr,lh Washer, 3rd rh (28.1x43x1.5);

09169-28001-000

Пластина замка

Washer, 3rd driven gr,lh Washer, 3rd rh (28.1x40x1);

09263-20040-000

BEARING(20X34X20)

Bearing, rh Bearing, drive shaft rh; 20x34x20

09267-25011-000

BEARING(25X62X21.6)

Bearing (25x62x21.6) Bearing, drive shaft lh; 25x62x21.6

09283-34005-000

Уплотнение вала

Oil seal (34x62x6) Seal, drive shaft oil; 34x62x6

09300-22008-000

Втулка

Bush, 1st driven gear;

09300-28003-000

BUSH(28X32X9.5)

Bush, 2nd driven gear Bush, 2nd driven gear;

08331-31289-000

Пружинное стопорное кольцо

замена

08331-31286-000

Стопорное кольцо (пружинное)

Circlip, 2nd/3rd/4th;

09390-62012-000

C RING

C ring, drive brg, lh;

04221-07209-000

Штифт

Pin (l:20) Pin, drive shaft brg, rh;

09181-20251-000

Шайба (T:1.0)

Shim (t:1.0) Washer, 1st, rh (20x34x1.0);

09181-22223-000

SHIM(22X34X1)

Washer, 1st, lh (22x34x1.0);

09181-28195-000

Шайба

Washer, rr final dr gr Washer, 2nd (28x38x1.0);

24741-27A00-000

RETAINER,CNTR SHAFT BEARING

Retainer, cntr shaft bearing Retainer, cntr shaft;

24751-40C01-000

RETAINER,DRIVE SHAFT OIL SEAL

Retainer, drive shaft oil seal Retainer, drive shaft;

01500-0612A-000

Болт

замена

01500-06123-000

*01107-06123

Bolt, front Bolt, drive shaft;

09126-06011-000

SCREW(6X12)

Screw, retainer mdl Screw, cntr shaft;

27510-17C10-000

SPROCKET,ENGINE(NT:15)

Sprocket, engine (nt:15) Sprocket, engine (nt:15);

27600-16G20-116

CHAIN,DRIVE(116L)

Gsf650ak5/ak6/sak5/sak6/uak5, /uak6/suak5/suak6

27600-16G20-112

CHAIN,DRIVE(112LE)

Gsf650k5/k6/uk5/uk6/sk5/sk6, /suk5/suk6

27620-16G20-000

JOINT SET,CHAIN

Opt

09159-20004-000

Гайка

Nut, engine sprocket;

09180-25091-000

Прокладка

Spacer, engine sprocket Spacer, engine sprocket; 25x34x17.5

09181-25268-000

Шайба

Shim (25x36x1.5) Washer, sprocket (25x40x1.5);
