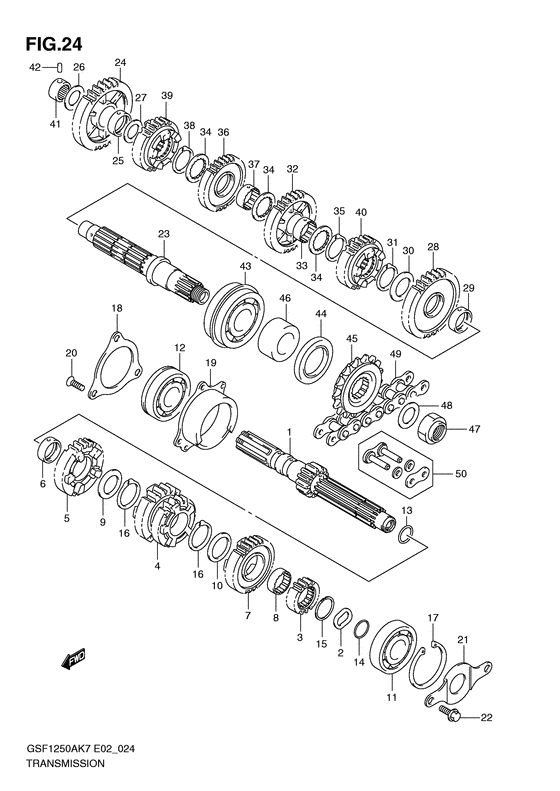

Трансмиссия для мотоциклов Suzuki GSF1250S Bandit S (2009)

oem код

название

цена

24120-18H00-000

SHAFT,COUNTER(NT:13)

Shaft, counter (nt:13);

24127-18H00-000

WASHER,COUNTER SHAFT WAVE

24221-18H10-000

GEAR,2ND DRIVE

замена

24221-18H00-000

Gear, 2nd drive (nt:17)

Gear, 2nd drive (nt:17);

24231-18H00-000

GEAR,3RD & 4TH DRIVE(NT:20/23)

Nt:20/23

24251-18H00-000

GEAR,5TH DRIVE(NT:25)

Gear, 5th drive (nt:25);

24252-35F00-000

BUSH,5TH DRIVE GEAR

Bush, 5th drive gear;

24261-18H00-000

GEAR,6TH DRIVE(NT:28)

Gear, 6th drive (nt:28);

24262-35F00-000

BUSH,6TH DRIVE GEAR

09160-27008-000

Шайба

Washer (27x36x1) Washer, 5th drive; 27x36x1.0

09167-27001-000

WASHER,LOCK

Washer, 6th drive;

09262-20080-000

Подшипник

Bearing, drive shaft,lh Bearing, cntr, l; 20x52x15

09262-25073-000

BEARING(25X62X17)

Bearing (25x62x17) Bearing, cntr, r; 25x62x17

09280-17004-000

O RING(D:1.9,ID:16.6)

O ring (d:1.9,id:16.6) O ring, cntr shaft; D:1.9,id:16.6

09280-20001-000

O RING(D:1,ID:19.5)

Dr shaft brg o ring (d:1,id:19.5) O ring, cntr shaft; D:1.0,id:19.5

09380-27004-000

Пружинное стопорное кольцо

Circlip, 2nd drive;

09380-27006-000

Пружинное стопорное кольцо

Circlip, 2nd/3rd driven Circlip, 5th/6th;

08331-41529-000

Пружинное стопорное кольцо

замена

08331-4152A-000

Стопорное кольцо (пружинное)

Circlip, cntr, l;

24751-18H00-000

RETAINER,CNTR SHAFT BEARING,R

Retainer, cntr shaft brg, r;

24771-18H00-000

HOUSING,CNTR SHAFT BRG,R

09139-06159-000

SCREW(6X20)

Screw, housing (6x20) Screw, housing (6x20);

24741-18H00-000

RETAINER,CL PUSH ROD OIL SEAL

09103-06236-000

BOLT(6X12)

Screw, push (6x12);

24131-18H10-000

Вал ведущий

24311-18H00-000

GEAR,1ST DRIVEN(NT:40)

Gear, 1st driven (nt:40);

24312-02F00-000

Втулка

Bush, 1st driven gr Bush, 1st driven;

09181-20251-000

Шайба (T:1.0)

Shim (t:1.0) Washer, 1st, r; 20x34x1.0

09181-22223-000

SHIM(22X34X1)

Washer, 1st, l; 22x34x1.0

24321-18H00-000

GEAR,2ND DRIVEN(NT:35)

Gear, 2nd driven (nt:35);

24322-02F01-000

BUSH,2ND DRIVEN GEAR

Bush, 2nd driven Bush, 2nd driven;

09160-27008-000

Шайба

Washer (27x36x1) Washer, 2nd driven; 27x36x1.0

09380-27006-000

Пружинное стопорное кольцо

Circlip, 2nd/3rd driven Circlip, 2nd driven;

24331-18H00-000

GEAR,3RD DRIVEN(NT:31)

Gear, 3rd driven (nt:31);

24262-17E01-000

Втулка

Bush, 3rd driven gear Bush, 3rd driven gear;

24333-02F00-000

WASHER,3RD & 4TH DRIVEN

Washer, 3rd driven

09380-27006-000

Пружинное стопорное кольцо

Circlip, 2nd/3rd driven Circlip, 3rd driven;

24341-18H00-000

GEAR,4TH DRIVEN(NT:30)

Gear, 4th driven (nt:30);

24262-17E01-000

Втулка

Bush, 3rd driven gear Bush, 4th driven gear;

09380-27006-000

Пружинное стопорное кольцо

Circlip, 2nd/3rd driven Circlip, 4th driven;

24351-18H00-000

GEAR,5TH DRIVEN(NT:29)

Gear, 5th driven (nt:29);

24361-18H00-000

GEAR,6TH DRIVEN(NT:30)

Gear, 6th driven (nt:30);

09263-20087-000

BEARING(20X34X13.5)

Bearing, drive shaft, r; 20x34x3.5

09261-06003-000

PIN(6X10)

Pin, drive shadft, r Pin, drive shadft, r;

09267-30011-000

BEARING(30X62X23.8)

Bearing, drive shaft, l; 30x62x23.8

09283-42018-000

Уплотнение вала

Seal, drive shaft oil;

27510-21A40-000

SPROCKET,ENGINE(NT:18)

Sprocket, engine (nt:18);

27531-18H00-000

SPACER,ENGINE SPROCKET

09159-20004-000

Гайка

09160-25035-000

Шайба

Shim (25x36x1.4) Washer (25x40x1.4);

27600-24F20-120

Цепь масляного насоса

Chain assy (rk50gsvz3m,120le); L:120->18

27620-24F20-000

JOINT SET

Joint set, chain Joint set, chain; Opt
