Frame comp для мотоциклов Suzuki GSF1250S (ABS) Bandit S (2011)

Москва и регионы России

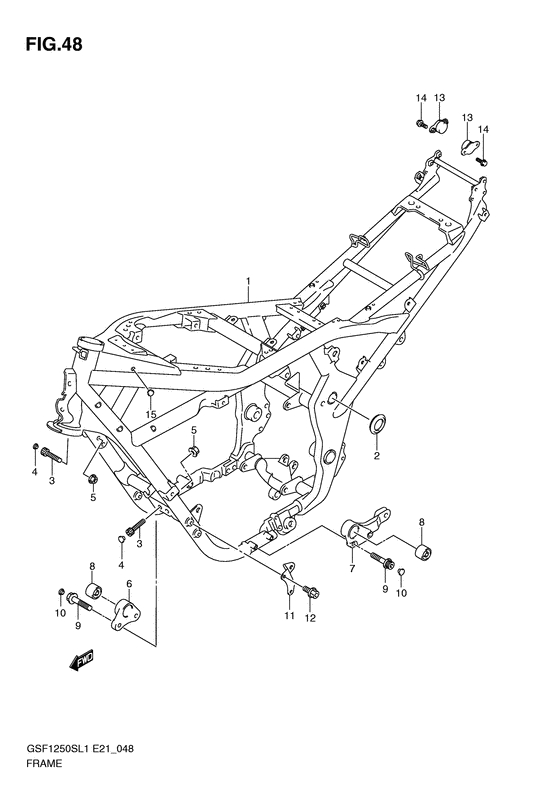

Frame comp

Suzuki GSF1250S (ABS) Bandit S

Frame comp

Frame comp

1

2

3

3

4

4

5

5

6

7

8

8

9

9

10

10

11

12

13

13

14

14

15

#

oem код

название

цена

1

41100-18H01-YAP

FRAME(BLACK)

FRAME(BLACK)

Frame (black);

2

43585-38G01-000

CAP,FRAME PIVOT

CAP,FRAME PIVOT

Cap, frame pivot;

3

09106-10068-000

BOLT(10X37)

BOLT(10X37)

Bolt (10x37) Bolt (10x37);

4

09250-08012-000

Крышка

Крышка

Rh

5

08319-3110B-000

Гайка

Гайка

6

41931-18H00-000

BRACKET,ENGINE MOUNTING NO.2,R

BRACKET,ENGINE MOUNTING NO.2,R

7

41941-18H00-000

BRACKET,ENGINE MOUNTING NO.2,L

BRACKET,ENGINE MOUNTING NO.2,L

8

41932-27E50-000

BUSH,ENG MOUNTING NO.2

BUSH,ENG MOUNTING NO.2

Bush

9

09106-08065-000

BOLT(8X28)

BOLT(8X28)

Bolt (8x28);

10

09250-06008-000

CAP(OD:10)

CAP(OD:10)

11

41942-18H00-YAP

Кронштейн

Кронштейн

Bracket, front (black);

12

01550-0820A-000

Болт

Болт

Bolt, funnel bracket

13

42550-49G00-000

DAMPER,FRAME

DAMPER,FRAME

14

01550-0612B-000

Болт

Болт

Bolt, clamp

15

09250-12014-000

PLUG(OD:17)

PLUG(OD:17)

Plug;
