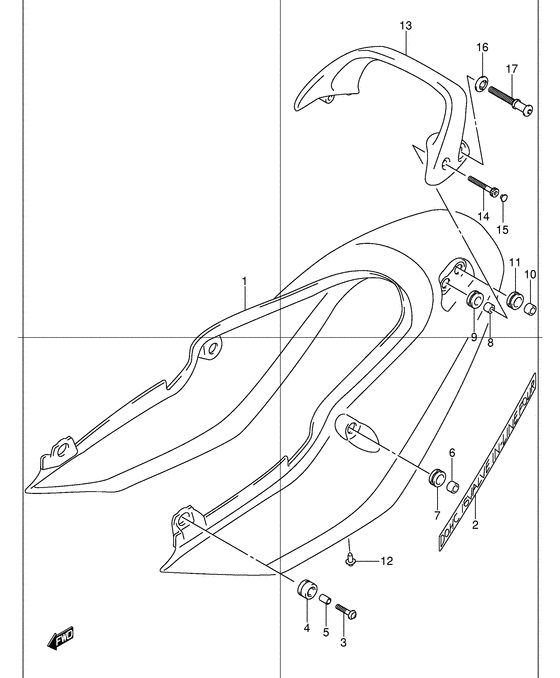

Обтекатель сидения для мотоциклов Suzuki GSF1200 Bandit (2005)

Москва и регионы России

Обтекатель сидения

Suzuki GSF1200 Bandit

Обтекатель сидения

Обтекатель сидения

1

1

1

1

2

2

2

2

3

4

5

6

7

8

9

10

11

12

13

13

13

14

15

16

17

#

oem код

название

цена

1

45510-32F10-YD8

Cover, seat tail (silver)

Cover, seat tail (silver)

Cover, seat tail (silver);

1

45510-32F10-Y7H

COVER,SEAT TAIL(BLUE)

COVER,SEAT TAIL(BLUE)

Cover, seat tail (blue);

1

45510-32F10-33J

COVER,SEAT TAIL(BLACK)

COVER,SEAT TAIL(BLACK)

Cover, seat tail (black);

1

45510-32F10-YC6

Cover, seat tail (red)

Cover, seat tail (red)

Cover, seat tail (red);

2

68131-32F10-DL3

EMBLEM,SEAT TAIL COVER

EMBLEM,SEAT TAIL COVER

For yd8

2

68131-32F10-M2S

EMBLEM,SEAT TAIL COVER

EMBLEM,SEAT TAIL COVER

For y7h

2

68131-32F10-M2R

EMBLEM,SEAT TAIL COVER

EMBLEM,SEAT TAIL COVER

For 33j

2

68131-32F10-DL2

Emblem, tail cover

Emblem, tail cover

For yc6

3

09136-06083-000

Винт 6X30

Винт 6X30

Screw, front (6x30) Screw, front (6x30);

4

47115-19F00-000

Валик

Валик

Cushion, front (10x22x15);

5

09180-06291-000

SPACER(6.5X10X13)

SPACER(6.5X10X13)

Spacer, front (6.5x10x13);

6

09180-08199-000

Кольцо/шайба

Кольцо/шайба

Spacer (8.5x14x9) Spacer, center (8.5x14x9);

7

09320-14023-000

Подушка

Подушка

Cushion, center (14x22x9.5) Cushion, center (14x22x9.5);

8

09180-06300-000

Прокладка

Прокладка

Spacer, rr-fr (6.5x12x9);

9

09320-12068-000

Подушка

Подушка

Cushion, front Cushion, rr-fr (12x22x9.5);

10

09180-08199-000

Кольцо/шайба

Кольцо/шайба

Spacer (8.5x14x9) Spacer, rr-rr (8.5x14x9);

11

09320-14023-000

Подушка

Подушка

Cushion, center (14x22x9.5) Cushion, rr-rr (14x12x9.5);

12

09409-06314-5PK

CLIP(BLACK)

CLIP(BLACK)

13

46211-32F10-YD8

HANDLE,PILLION RIDER

HANDLE,PILLION RIDER

замена

46211-32F00-YD8

Handle, pillion rider (silver)

Handle, pillion rider (silver)

Handle, pillion rider (silver);

замена

46211-32F00-Y7H

Handle, pillion rider (blue)

Handle, pillion rider (blue)

Handle, pillion rider (blue);

13

46211-32F10-33J

HANDLE,PILLION RIDER

HANDLE,PILLION RIDER

замена

46211-32F00-33J

Handle, pillion rider (black)

Handle, pillion rider (black)

Handle, pillion rider (black);

13

46211-32F10-13L

HANDLE,PILLION RIDER(SILVER)

HANDLE,PILLION RIDER(SILVER)

замена

46211-32F00-YC6

Handle, pillion rider (red)

Handle, pillion rider (red)

Handle, pillion rider (red);

14

07120-0645B-000

Болт распределительного вала

Болт распределительного вала

замена

07120-06453-000

Болт

Болт

15

09250-05009-000

CAP(OD:10)

CAP(OD:10)

Cap, inlet case

16

46317-31F00-000

WASHER,HOOK

WASHER,HOOK

Washer, hook;

17

46316-31F00-000

HOOK,PILLION RIDER HANDLE

HOOK,PILLION RIDER HANDLE

Hook, handle
