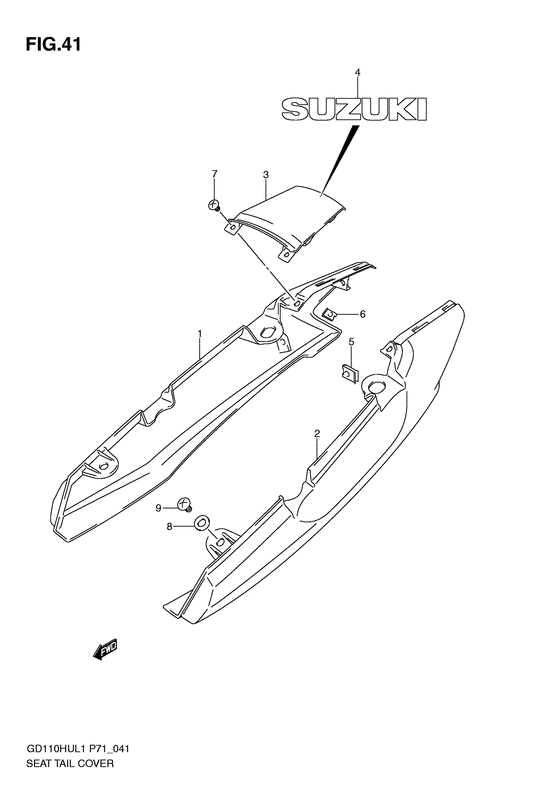

Обтекатель сидения для мотоциклов Suzuki GD110 (2011)

oem код

название

цена

45511-36H00-YNM

Деталь COVER,SEAT TAIL,R

Cover, seat tail rh (white);

45511-36H00-YJR

Деталь COVER,SEAT TAIL,R

Cover, seat tail rh (black);

45511-36H00-YJN

Деталь COVER,SEAT TAIL,R

Cover, seat tail rh (red);

45511-36H00-YGB

Деталь COVER,SEAT TAIL,R

Cover, seat tail rh (blue);

45511-36H00-W6C

Деталь COVER,SEAT TAIL,R(GRAY)

Cover, seat tail rh (gray);

45512-36H00-YNM

Деталь COVER,SEAT TAIL,L

Cover, seat tail lh (white);

45512-36H00-YJR

Деталь COVER,SEAT TAIL,L

Cover, seat tail lh (black);

45512-36H00-YJN

Деталь COVER,SEAT TAIL,L

Cover, seat tail lh (red);

45512-36H00-YGB

Деталь COVER,SEAT TAIL,L

Cover, seat tail lh (blue);

45512-36H00-W6C

Деталь COVER,SEAT TAIL,L(GRAY)

Cover, seat tail lh (gray);

45513-36H00-YNM

Деталь COVER,SEAT TAIL CTR

Cover, seat tail center (white);

45513-36H00-YJR

Деталь COVER,SEAT TAIL CTR

Cover, seat tail center (black);

45513-36H00-YJN

Деталь COVER,SEAT TAIL CTR

Cover, seat tail center (red);

45513-36H00-YGB

Деталь COVER,SEAT TAIL CTR

Cover, seat tail center (blue);

45513-36H00-W6C

Деталь COVER,SEAT TAIL CTR

Cover, seat tail center (gray);

68166-45F10-17U

Деталь EMBLEM,FRAME CTR COVER

Emblem, seat tail cover (gray); For ynm

68166-45F10-YD8

Деталь EMBLEM,CTR COVER

Emblem, seat tail cover (silver); For w6c,ygb,yjn,yjr

09148-05L01-000

Гайка

09148-05038-000

Гайка

Nut, inner Nut, seat tail cover;

03241-0512B-000

Винт

Screw, front Screw, seat tail cover;

09169-06071-000

Шайба

Washer, rr side

02142-0610B-000

Винт держатель

Stopper, cl rlse cam shaft Screw, seat tail cover;
