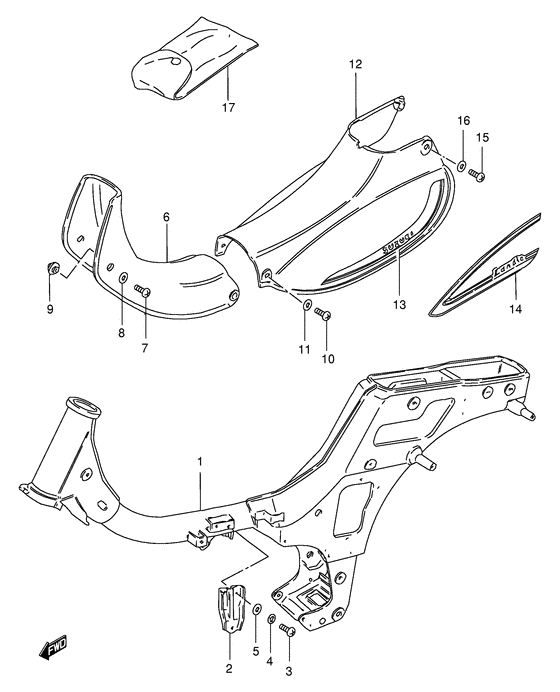

Frame - frame cover для мотоциклов Suzuki FM50 (1994)

Москва и регионы России

Frame - frame cover

Suzuki FM50

Frame - frame cover

Frame - frame cover

1

2

3

4

5

6

6

7

8

9

10

10

11

12

12

12

12

12

12

12

13

13

13

14

14

15

16

17

17

#

oem код

название

цена

1

41100-43210-019

Frame (brack)

Frame (brack)

Frame (brack);

2

41291-43200-000

Bracket, crankcase

Bracket, crankcase

3

01500-0616A-000

Болт

Болт

замена

01107-06166-000

Болт

Болт

4

08321-01067-000

Шайба, стопорная

Шайба, стопорная

замена

08321-21067-000

Пластина замка

Пластина замка

5

08322-01067-000

Шайба

Шайба

замена

08322-21067-000

Шайба

Шайба

замена

47111-43000-0MA

Cover, front (white)

Cover, front (white)

Cover, front (white); Model r

замена

47111-43000-189

Cover, front (white)

Cover, front (white)

Cover, front (white); Model h/m

замена

47111-43000-10Y

Cover, front (purple)

Cover, front (purple)

Cover, front (purple); Model h

6

47111-43000-10K

Cover, front (yellow)

Cover, front (yellow)

Cover, front (yellow); Model h/m

замена

47111-43000-14C

Cover, front (red)

Cover, front (red)

Cover, front (red); Model r

замена

47111-43000-07P

Cover, front (red)

Cover, front (red)

Cover, front (red); Model h/m

6

47111-43000-000

COVER,FRAME FR(NON PAINT)

COVER,FRAME FR(NON PAINT)

замена

47111-43000-07L

Cover, front (green)

Cover, front (green)

Cover, front (green); Model h

7

02142-06307-000

Винт

Винт

8

09160-06084-000

Шайба 6.5X18X1

Шайба 6.5X18X1

замена

09160-06006-000

Шайба

Шайба

9

48198-43000-000

Кольцо/шайба

Кольцо/шайба

10

09136-06022-000

Болт

Болт

Screw, fender & brace Screw; Model m/r

10

02142-06207-000

Винт 6X20

Винт 6X20

Model h

11

09160-06084-000

Шайба 6.5X18X1

Шайба 6.5X18X1

замена

09160-06006-000

Шайба

Шайба

12

47211-43001-0MA

Крышка

Крышка

Cover, rear (white); Model r

12

47211-43001-189

Крышка

Крышка

Cover, rear (white); Model h/m

12

47211-43001-10Y

Крышка

Крышка

Cover, rear (purple); Model h

12

47211-43001-10K

Крышка

Крышка

Cover, rear (yellow); Model h/m

12

47211-43001-14C

Крышка

Крышка

Cover, rear (red); Model r

12

47211-43001-07P

Крышка

Крышка

Cover, rear (red); Model h/m

12

47211-43001-07L

Крышка

Крышка

Cover, rear (green); Model h

13

68140-43030-05F

Tape set, rear cover (orange)

Tape set, rear cover (orange)

Tape set, rear cover (orange); Model h for 189

13

68140-43030-719

Tape set, rear cover (orange)

Tape set, rear cover (orange)

Tape set, rear cover (orange); Model h for 10k

13

68140-43030-064

Tape set, rear cover (white)

Tape set, rear cover (white)

Tape set, rear cover (white); Model h for 07l,07p,10y

14

68140-43060-1FY

Tape set, fram cover

Tape set, fram cover

Model m/r

14

68140-43060-1FW

Tape set, frame cover

Tape set, frame cover

Model m/r

15

02142-06307-000

Винт

Винт

16

09160-06084-000

Шайба 6.5X18X1

Шайба 6.5X18X1

замена

09160-06006-000

Шайба

Шайба

17

09817-00038-000

RING SPANNER

RING SPANNER

17

09800-21026-000

Ключи

Ключи

замена

09800-03800-000

Комплект инструмента

Комплект инструмента

Model h/m
