Переднее крыло для мотоциклов Suzuki FL125 (2008)

Москва и регионы России

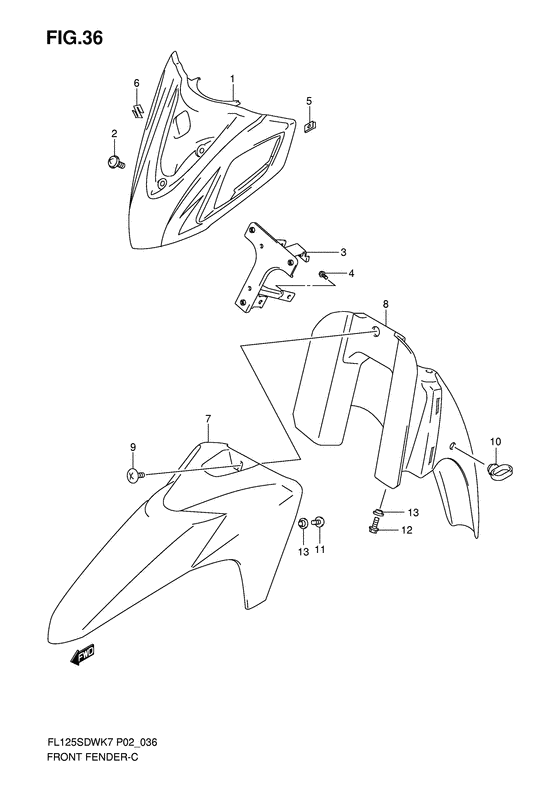

Переднее крыло

Suzuki FL125

Переднее крыло

Переднее крыло

#

oem код

название

цена

1

51871-16H20-YNR

COVER,FRAME HEAD

COVER,FRAME HEAD

Cover, frame head (black); Model k9

1

51871-16H20-YNL

COVER,FRAME HEAD(BLUE)

COVER,FRAME HEAD(BLUE)

Cover, frame head (blue); Model k8/k9

1

51871-16H20-YNK

COVER,FRAME HEAD(RED)

COVER,FRAME HEAD(RED)

Cover, frame head (red); Model k7/k8

1

51871-16H20-YNJ

COVER,FRAME HEAD(SILVER)

COVER,FRAME HEAD(SILVER)

Cover, frame head (silver); Model k7/k8

2

51875-07H00-000

Болт

Болт

3

51860-16H10-000

BRACE,FRAME HEAD COVER

BRACE,FRAME HEAD COVER

4

01550-0612A-000

Болт

Болт

5

09148-05038-000

Гайка

Гайка

Nut, inner

6

68211-16H00-000

EMBLEM,S

EMBLEM,S

7

53111-16H00-YNR

FENDER,FR NO.1

FENDER,FR NO.1

Fender, front (black); Model k9

7

53111-16H00-YNL

FENDER,FR NO.1

FENDER,FR NO.1

Fender, front (blue); Model k8/k9

7

53111-16H00-YNK

FENDER,FR NO.1

FENDER,FR NO.1

Fender, front (red); Model k7/k8

7

53111-16H00-YNJ

FENDER,FR NO.1

FENDER,FR NO.1

Fender, front no.1 (silver); Model k7/k8

8

53211-16H01-000

FENDER,FR NO.2

FENDER,FR NO.2

9

53274-09G00-000

SCREW,FR FENDER UPR

SCREW,FR FENDER UPR

Screw, lower Screw, upper;

10

58621-47E00-000

GUIDE,FR BRAKE CABLE

GUIDE,FR BRAKE CABLE

11

02142-0616A-000

Болт

Болт

12

01550-0612A-000

Болт

Болт

13

09169-06071-000

Шайба

Шайба

Washer, rr side Washer;
