Обтекатель сидения для мотоциклов Suzuki FB100 (2000)

Москва и регионы России

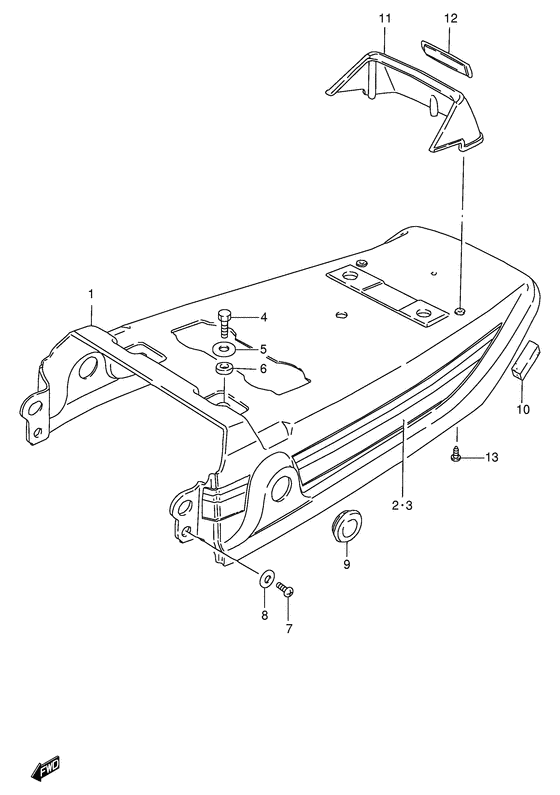

Обтекатель сидения

Suzuki FB100

Обтекатель сидения

Обтекатель сидения

1

1

2

2

3

3

4

5

6

7

8

9

10

11

11

11

11

11

11

11

12

13

#

oem код

название

цена

замена

45511-30A10-1UY

Cover, seat tail (blue)

Cover, seat tail (blue)

Cover, seat tail (blue); Model s

замена

45511-30A10-0NF

Cover, seat tail (blue)

Cover, seat tail (blue)

Cover, seat tail (blue); Model r

замена

45511-30A10-20F

Cover, seat tail (maroon)

Cover, seat tail (maroon)

Cover, seat tail (maroon); Model s

замена

45511-30A10-19A

Cover, seat tail (red)

Cover, seat tail (red)

Cover, seat tail (red); Model r/s

1

45511-30A10-24D

Cover, seat tail (maroon)

Cover, seat tail (maroon)

Cover, seat tail (maroon); Fb100dg,fb100g e30

замена

45511-30A10-04Y

Cover, seat tail (blue)

Cover, seat tail (blue)

Cover, seat tail (blue); Fb100g/dg

1

45511-30A10-13L

COVER,TAIL(SILVER)

COVER,TAIL(SILVER)

замена

45511-30A10-00J

Cover, seat tail (red)

Cover, seat tail (red)

Cover, seat tail (red); Fb100g/dg

2

68160-30A00-66S

Tape set, tail cover rh

Tape set, tail cover rh

Fb100dg,fb100g e30 for 24d

2

68160-30A00-84G

Tape set, tail cover rh

Tape set, tail cover rh

3

68240-30A00-66S

Tape set, tail cover lh

Tape set, tail cover lh

Fb100dg,fb100g e30 for 24d

3

68240-30A00-84G

Tape set, tail cover lh

Tape set, tail cover lh

4

01500-0820A-000

Болт

Болт

замена

01500-08203-000

Болт

Болт

Bolt, starter lever Bolt, upper (8x20);

5

09160-08127-000

Шайба

Шайба

Washer, fender front

замена

09160-08007-000

Шайба

Шайба

Spacer, swivel bracket Washer;

6

09180-08100-000

SPACER(8.2X14X4.5)

SPACER(8.2X14X4.5)

7

02142-0612B-000

Винт

Винт

замена

02142-06123-000

Болт

Болт

Screw, tilt up handle Screw, side (6x12);

8

09169-06031-000

Шайба

Шайба

замена

09169-06028-000

Washer front fe

Washer front fe

Washer;

9

09250-24004-000

GROMMET(OD:32)

GROMMET(OD:32)

Cap, front fender Grommet;

10

33652-35400-000

PROTECTOR(20X50X8)

PROTECTOR(20X50X8)

Protector (20x50x8)

замена

45528-30A00-000

Cushion, rear

Cushion, rear

11

45571-30A00-1UY

EXTENSION,TAIL COVER

EXTENSION,TAIL COVER

Extention, tail cover (blue); Model s

11

45571-30A00-0NF

Extention, tail cover (blue)

Extention, tail cover (blue)

Extention, tail cover (blue); Model r

11

45571-30A00-20F

Extention, tail cover (maroon)

Extention, tail cover (maroon)

Extention, tail cover (maroon); Model s

11

45571-30A00-19A

Extention, tail cover (red)

Extention, tail cover (red)

Extention, tail cover (red); Model r/s

11

45571-30A00-24D

Extention, tail cover (maroon)

Extention, tail cover (maroon)

Extention, tail cover (maroon); Fb100dg,fb100g e30

11

45571-30A00-04Y

Extention, tail cover (blue)

Extention, tail cover (blue)

Extention, tail cover (blue); Fb100g/dg

11

45571-30A00-00J

Extention, tail cover (red)

Extention, tail cover (red)

Extention, tail cover (red); Fb100g/dg

12

68234-39110-000

EMBLEM,CARB INSPECTION CAP

EMBLEM,CARB INSPECTION CAP

Emblem, suzuki Emblem, suzuki;

13

03511-0412A-000

Болт

Болт

замена

03511-04123-000

Винт

Винт
