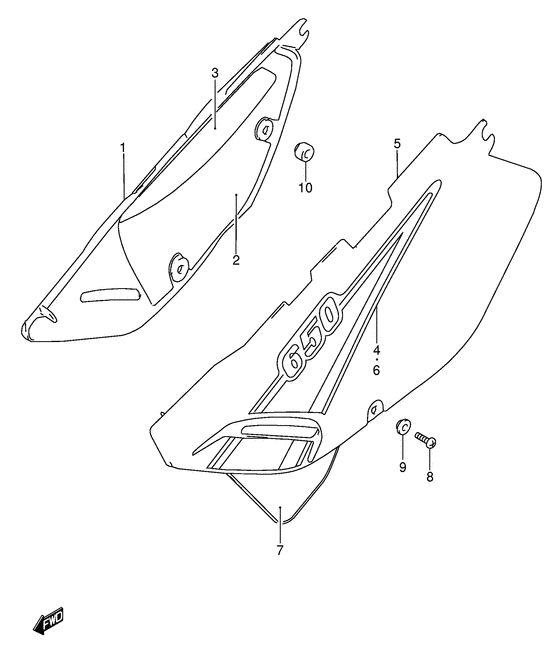

Обтекатель задний для мотоциклов Suzuki DR650 (2004)

oem код

название

цена

47111-32E10-30H

COVER,FRAME,R(WHITE)

замена

47111-32E00-30H

Cover, frame rh (white)

Cover, frame rh (white) Cover, frame rh (white); For n9j

47111-32E10-019

COVER,FRAME,R(BLACK)

замена

47111-32E00-019

Cover, frame rh (black)

Cover, frame rh (black); For ct5

47166-32E00-000

SHIELD,FRAME COVER,R NO.1

Shield, cover lower rh

47167-32E00-000

SHIELD,FRAME COVER,R NO.2

Shield, cover upper rh

68130-32E00-FF9

Tape, rh

For n9j

68130-32E00-FF8

TAPE,FRAME COVER,R

For ct5

47211-32E10-30H

COVER,FRAME,L(WHITE)

замена

47211-32E00-30H

Cover, frame lh (white)

Cover, frame lh (white) Cover, frame lh (white); For n9j

47211-32E10-019

COVER,FRAME,L(BLACK)

замена

47211-32E00-019

Cover, frame lh (black)

Cover, frame lh (black); For ct5

68140-32E00-FF9

TAPE,FRAME COVER,L

For n9j

68140-32E00-FF8

Tape, lh

For ct5

68146-32E00-000

TAPE,LWR

Tape, no.2, lh

02142-06167-000

Винт крестовый 6x16

Screw Screw;

09169-06031-000

Шайба

замена

09169-06028-000

Washer front fe

Washer;

09321-10019-000

Подушка

Cushion, muffler;
